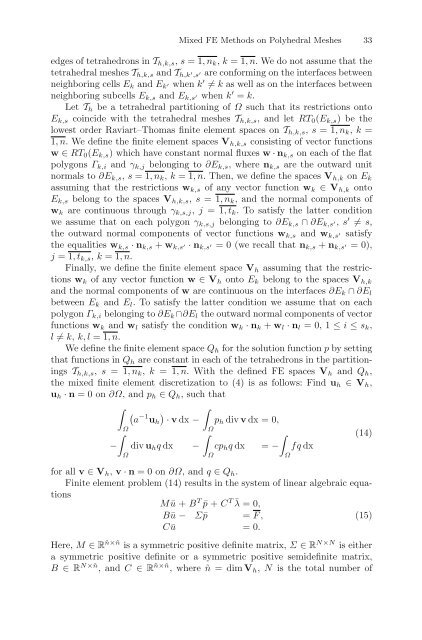

Mixed FE Methods on Polyhedral Meshes 33<br />
edges of tetrahedrons in T h,k,s , s = 1,n k , k = 1,n. We do not assume that the<br />
tetrahedral meshes T h,k,s <strong>and</strong> T h,k′ ,s′ are conforming on the interfaces between<br />
neighboring cells E k <strong>and</strong> E k ′ when k ′ ≠ k as well as on the interfaces between<br />
neighboring subcells E k,s <strong>and</strong> E k,s ′ when k ′ = k.<br />
Let T h be a tetrahedral partitioning of Ω such that its restrictions onto<br />
E k,s coincide with the tetrahedral meshes T h,k,s , <strong>and</strong> let RT 0 (E k,s )bethe<br />
lowest order Raviart–Thomas finite element spaces on T h,k,s , s = 1,n k , k =<br />
1,n. We define the finite element spaces V h,k,s consisting of vector functions<br />
w ∈ RT 0 (E k,s ) which have constant normal fluxes w · n k,s on each of the flat<br />
polygons Γ k,i <strong>and</strong> γ k,j belonging to ∂E k,s ,wheren k,s are the outward unit<br />
normals to ∂E k,s , s = 1,n k , k = 1,n. Then, we define the spaces V h,k on E k<br />
assuming that the restrictions w k,s of any vector function w k ∈ V h,k onto<br />
E k,s belong to the spaces V h,k,s , s = 1,n k , <strong>and</strong> the normal components of<br />
w k are continuous through γ k,s,j , j = 1,t k . To satisfy the latter condition<br />
we assume that on each polygon γ k,s,j belonging to ∂E k,s ∩ ∂E k,s ′, s ′ ≠ s,<br />
the outward normal components of vector functions w k,s <strong>and</strong> w k,s ′ satisfy<br />
the equalities w k,s · n k,s + w k,s ′ · n k,s ′ = 0 (we recall that n k,s + n k,s ′ =0),<br />
j = 1,t k,s , k = 1,n.<br />
Finally, we define the finite element space V h assuming that the restrictions<br />
w k of any vector function w ∈ V h onto E k belong to the spaces V h,k<br />
<strong>and</strong> the normal components of w are continuous on the interfaces ∂E k ∩ ∂E l<br />
between E k <strong>and</strong> E l . To satisfy the latter condition we assume that on each<br />
polygon Γ k,i belonging to ∂E k ∩∂E l the outward normal components of vector<br />
functions w k <strong>and</strong> w l satisfy the condition w k · n k + w l · n l =0,1≤ i ≤ s k ,<br />
l ≠ k, k, l = 1,n.<br />
We define the finite element space Q h for the solution function p by setting<br />
that functions in Q h are constant in each of the tetrahedrons in the partitionings<br />
T h,k,s , s = 1,n k , k = 1,n. With the defined FE spaces V h <strong>and</strong> Q h ,<br />
the mixed finite element discretization to (4) is as follows: Find u h ∈ V h ,<br />
u h · n =0on∂Ω, <strong>and</strong>p h ∈ Q h , such that<br />
∫<br />
∫<br />
(<br />
a −1 )<br />
u h · v dx − p h div v dx = 0,<br />
Ω<br />
Ω<br />
∫<br />
∫<br />
∫<br />
(14)<br />
− div u h q dx − cp h q dx = − fqdx<br />
Ω<br />
Ω<br />
for all v ∈ V h , v · n =0on∂Ω, <strong>and</strong>q ∈ Q h .<br />
Finite element problem (14) results in the system of linear algebraic equations<br />
Mū + B T ¯p + C T ¯λ =0,<br />
Bū − Σ ¯p = F,<br />
(15)<br />
Cū =0.<br />
Here, M ∈ Rˆn׈n is a symmetric positive definite matrix, Σ ∈ R N×N is either<br />
a symmetric positive definite or a symmetric positive semidefinite matrix,<br />
B ∈ R N׈n ,<strong>and</strong>C ∈ Rñ׈n ,whereˆn =dimV h , N is the total number of<br />
Ω
