28 Yu.A. Kuznetsov degree of freedom per mesh cell for the solution function is defined. The final system of discrete equations has the same structure as for the classical mixed FE method. The paper is organized as follows. In Section 2, we formulate the problem and requirements for the discretization. In Section 3, we describe partitionings of mesh cells into subcells and polyhedral meshes to be used for the discretization. We also propose a special finite element subspace of H div (Ω) for the mixed finite element method. Finally, in Section 4, we describe a condensation procedure for the underlying algebraic system and transform the condensed system into the standard form which is typical for the classical finite element method on simplicial meshes. In the final part of Section 3, we propose an alternative discretization method. In Remark 2 of Section 4, we prove that this discretization method is equivalent to the “div-const” mixed finite element method invented and investigated in [KR03, KR05]. 2 Problem Formulation We consider the diffusion equation with the Neumann boundary condition − div(a grad p)+cp = f in Ω (1) (a grad p) · n =0 on∂Ω (2) where Ω is a polyhedral domain in R 3 with the boundary ∂Ω, a = a(x) is a symmetric positive definite 3 × 3 matrix (diffusion tensor) for any x = (x 1 ,x 2 ,x 3 ) ∈ Ω, c is a nonnegative function, f is a given source function, and n is the outward unit normal to ∂Ω. The domain Ω is partitioned into m open non-overlapping simply connected polyhedral subdomains Ω k with the boundaries ∂Ω k , k = 1,m, i.e. Ω = ⋃ m k=1 Ω k. For the sake of simplicity, we assume that in each of the subdomains Ω k the matrix a has constant entries and the coefficient c is a nonnegative constant, k = 1,m. We naturally assume that in the case c ≡ 0inΩ the compatibility condition ∫ f dx = 0 (3) Ω holds. In this paper, we consider problem (1), (2) in the form of the first order system a −1 u +gradp =0 inΩ, − div u − cp = −f in Ω, (4) u · n =0 on∂Ω, where u is said to be the flux vector function.
Mixed FE Methods on Polyhedral Meshes 29 Let Ω H be a polyhedral mesh in Ω with polyhedral mesh cells E k = E k \ ∂E k where ∂E k are the boundaries of E k , k = 1,n. Here, n is a positive integer. We assume that E k ∩ E l = ∅, l ≠ k, k, l = 1,n,andΩ = ⋃ n k=1 E k. We do not assume that the mesh Ω H is geometrically conforming, i.e. the interfaces ∂E k ∩ ∂E l between two neighboring cells E k and E l are not obliged to be either a face, or an edge, or a vertex of these cells, l ≠ k, k, l = 1,n.An example of two nonconforming neighboring prismatic cells is given in Figure 1. The intersection of E k with ⋃ m l=1 ∂Ω l defines the partitioning of E k into n k polyhedral subcells E k,s , s = 1,n k , k = 1,n. An example of a partitioning of a mesh cell into three subcells is given in Figure 2. Fig. 1. An example of two neighboring prismatic mesh cells with nonconforming intersecting faces Ω 1 Ω 2 Ω 3 k,1 E E k,2 E k,3 Fig. 2. An example of a partitioning of a polyhedral cell into three polyhedral subcells
- Page 1 and 2: Partial Differential Equations
- Page 3 and 4: Partial Differential Equations Mode
- Page 5 and 6: Dedicated to Olivier Pironneau
- Page 7 and 8: VIII Preface computers has been at
- Page 9 and 10: Contents List of Contributors .....
- Page 11 and 12: List of Contributors Yves Achdou UF
- Page 13 and 14: List of Contributors XV Claude Le B
- Page 15 and 16: Discontinuous Galerkin Methods Vive
- Page 17 and 18: Discontinuous Galerkin Methods 5 2
- Page 19 and 20: Discontinuous Galerkin Methods 7 g
- Page 21 and 22: Discontinuous Galerkin Methods 9 (
- Page 23 and 24: Discontinuous Galerkin Methods 11 3
- Page 25 and 26: Discontinuous Galerkin Methods 13 3
- Page 27 and 28: Discontinuous Galerkin Methods 15 W
- Page 29 and 30: Let a h and b h denote the bilinear
- Page 31 and 32: Discontinuous Galerkin Methods 19 t
- Page 33 and 34: Discontinuous Galerkin Methods 21 l
- Page 35 and 36: Table 1. Primal DG for transport Di
- Page 37 and 38: Discontinuous Galerkin Methods 25 [
- Page 39: Mixed Finite Element Methods on Pol
- Page 43 and 44: Mixed FE Methods on Polyhedral Mesh
- Page 45 and 46: Mixed FE Methods on Polyhedral Mesh
- Page 47 and 48: 4 Hybridization and Condensation Mi
- Page 49 and 50: Mixed FE Methods on Polyhedral Mesh
- Page 51 and 52: is symmetric and positive definite,
- Page 53 and 54: with some coefficient α ∈ R wher
- Page 55 and 56: 44 E.J. Dean and R. Glowinski so fa
- Page 57 and 58: 46 E.J. Dean and R. Glowinski 2 A L
- Page 59 and 60: 48 E.J. Dean and R. Glowinski S:T=
- Page 61 and 62: 50 E.J. Dean and R. Glowinski minim
- Page 63 and 64: 52 E.J. Dean and R. Glowinski 6 On
- Page 65 and 66: 54 E.J. Dean and R. Glowinski Fig.
- Page 67 and 68: 56 E.J. Dean and R. Glowinski and
- Page 69 and 70: 58 E.J. Dean and R. Glowinski 7 Num
- Page 71 and 72: 60 E.J. Dean and R. Glowinski Fig.
- Page 73 and 74: 62 E.J. Dean and R. Glowinski Assum
- Page 75 and 76: Higher Order Time Stepping for Seco
- Page 77 and 78: u n+1 h Optimal Higher Order Time D
- Page 79 and 80: Optimal Higher Order Time Discretiz
- Page 81 and 82: Optimal Higher Order Time Discretiz
- Page 83 and 84: Optimal Higher Order Time Discretiz
- Page 85 and 86: Optimal Higher Order Time Discretiz
- Page 87 and 88: Optimal Higher Order Time Discretiz
- Page 89 and 90: Optimal Higher Order Time Discretiz

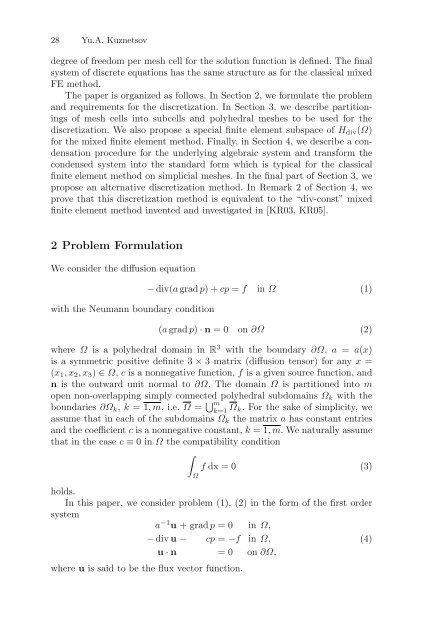

28 Yu.A. Kuznetsov<br />
degree of freedom per mesh cell for the solution function is defined. The final<br />
system of discrete equations has the same structure as for the classical mixed<br />
FE method.<br />
The paper is organized as follows. In Section 2, we formulate the problem<br />
<strong>and</strong> requirements for the discretization. In Section 3, we describe partitionings<br />
of mesh cells into subcells <strong>and</strong> polyhedral meshes to be used for the<br />
discretization. We also propose a special finite element subspace of H div (Ω)<br />
for the mixed finite element method. Finally, in Section 4, we describe a condensation<br />
procedure for the underlying algebraic system <strong>and</strong> transform the<br />
condensed system into the st<strong>and</strong>ard form which is typical for the classical<br />
finite element method on simplicial meshes. In the final part of Section 3, we<br />
propose an alternative discretization method. In Remark 2 of Section 4, we<br />
prove that this discretization method is equivalent to the “div-const” mixed<br />
finite element method invented <strong>and</strong> investigated in [KR03, KR05].<br />
2 Problem Formulation<br />
We consider the diffusion equation<br />
with the Neumann boundary condition<br />
− div(a grad p)+cp = f in Ω (1)<br />
(a grad p) · n =0 on∂Ω (2)<br />
where Ω is a polyhedral domain in R 3 with the boundary ∂Ω, a = a(x)<br />
is a symmetric positive definite 3 × 3 matrix (diffusion tensor) for any x =<br />
(x 1 ,x 2 ,x 3 ) ∈ Ω, c is a nonnegative function, f is a given source function, <strong>and</strong><br />
n is the outward unit normal to ∂Ω. The domain Ω is partitioned into m<br />
open non-overlapping simply connected polyhedral subdomains Ω k with the<br />
boundaries ∂Ω k , k = 1,m, i.e. Ω = ⋃ m<br />
k=1 Ω k. For the sake of simplicity, we<br />
assume that in each of the subdomains Ω k the matrix a has constant entries<br />
<strong>and</strong> the coefficient c is a nonnegative constant, k = 1,m. We naturally assume<br />
that in the case c ≡ 0inΩ the compatibility condition<br />
∫<br />
f dx = 0 (3)<br />
Ω<br />
holds.<br />
In this paper, we consider problem (1), (2) in the form of the first order<br />
system<br />
a −1 u +gradp =0 inΩ,<br />
− div u − cp = −f in Ω,<br />
(4)<br />
u · n =0 on∂Ω,<br />
where u is said to be the flux vector function.
