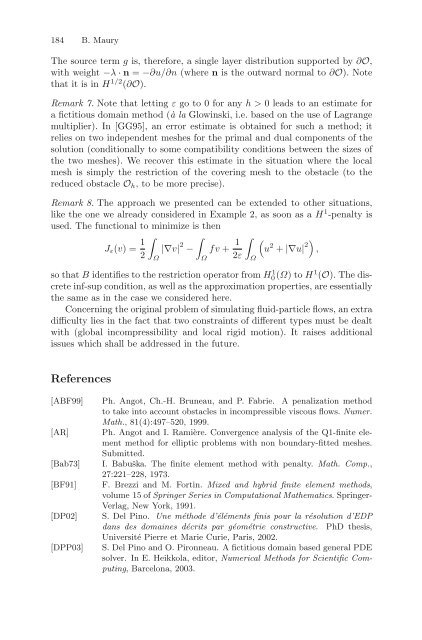

184 B. Maury<br />
The source term g is, therefore, a single layer distribution supported by ∂O,<br />
with weight −λ · n = −∂u/∂n (where n is the outward normal to ∂O). Note<br />
that it is in H 1/2 (∂O).<br />
Remark 7. Note that letting ε go to 0 for any h>0 leads to an estimate for<br />
a fictitious domain method (à laGlowinski, i.e. based on the use of Lagrange<br />
multiplier). In [GG95], an error estimate is obtained for such a method; it<br />
relies on two independent meshes for the primal <strong>and</strong> dual components of the<br />
solution (conditionally to some compatibility conditions between the sizes of<br />
the two meshes). We recover this estimate in the situation where the local<br />
mesh is simply the restriction of the covering mesh to the obstacle (to the<br />
reduced obstacle O h , to be more precise).<br />
Remark 8. The approach we presented can be extended to other situations,<br />
like the one we already considered in Example 2, as soon as a H 1 -penalty is<br />
used. The functional to minimize is then<br />
J ε (v) = 1 ∫ ∫<br />
|∇v| 2 − fv + 1 ∫ (<br />
u 2 + |∇u| 2) ,<br />
2<br />
2ε<br />
Ω<br />
Ω<br />
so that B identifies to the restriction operator from H 1 0 (Ω) toH 1 (O). The discrete<br />
inf-sup condition, as well as the approximation properties, are essentially<br />
the same as in the case we considered here.<br />
Concerning the original problem of simulating fluid-particle flows, an extra<br />
difficulty lies in the fact that two constraints of different types must be dealt<br />
with (global incompressibility <strong>and</strong> local rigid motion). It raises additional<br />
issues which shall be addressed in the future.<br />
Ω<br />
References<br />
[ABF99] Ph. Angot, Ch.-H. Bruneau, <strong>and</strong> P. Fabrie. A penalization method<br />
to take into account obstacles in incompressible viscous flows. Numer.<br />
Math., 81(4):497–520, 1999.<br />
[AR] Ph. Angot <strong>and</strong> I. Ramière. Convergence analysis of the Q1-finite element<br />
method for elliptic problems with non boundary-fitted meshes.<br />
Submitted.<br />
[Bab73] I. Babuška. The finite element method with penalty. Math. Comp.,<br />
27:221–228, 1973.<br />
[BF91] F. Brezzi <strong>and</strong> M. Fortin. Mixed <strong>and</strong> hybrid finite element methods,<br />
volume 15 of Springer Series in Computational Mathematics. Springer-<br />
Verlag, New York, 1991.<br />
[DP02] S. Del Pino. Une méthode d’éléments finis pour la résolution d’EDP<br />
dans des domaines décrits par géométrie constructive. PhD thesis,<br />
Université Pierre et Marie Curie, Paris, 2002.<br />
[DPP03] S. Del Pino <strong>and</strong> O. Pironneau. A fictitious domain based general PDE<br />
solver. In E. Heikkola, editor, Numerical Methods for Scientific Computing,<br />
Barcelona, 2003.
