178 B. Maury Cartesian triangulation T h of Ω and the associated first order Finite Element space V h . There exists C>0 such that inf ũ h ∈V h ‖u − ũ h ‖ H1 (Ω) ≤ Ch1/2 . Proof. We shall use in the proof the following notations: given a domain ω and v a function over ω, wedenoteby|u| 0,ω the L 2 -norm of v over ω, by (∫ ) 1/2 |v| 1,ω = |∇v| 2 ω the H 1 -seminorm, etc... We denote by I h is the standard interpolation operator from C(Ω) onto V h . Notice that u is continuous over Ω (it is piecewise H 2 , and continuous through the interface ∂O). Let us assume here that the constant value U on O is 0 (which can be achieved by subtracting a smooth extension of this constant outside O). We define ũ h as the function in V h which is 0 at every vertex contained in a triangle which intersects O, and which identifies to I h u at all other vertices. We introduce a narrow band around O ω h = {x ∈ Ω | x/∈ O, d(x, O) < 2 √ 2h}. As u| Ω\O ∈ H 2 (Ω \ O), the standard finite element estimate gives |u − ũ h | 0,Ω\(O∪ωh ) ≤ Ch2 |u| 2,Ω\O , (13) |u − ũ h | 1,Ω\(O∪ωh ) ≤ Ch|u| 2,Ω\O . (14) By construction, both L 2 -andH 1 -errors in O are zero. There remain to estimate the error in the band ω h . The principle is the following: ũ h is a poor approximation of u in ω h , but it is not very harmful because ω h is small. Similar estimates are proposed in [SMSTT05] or [AR]. We shall give here a proof more adapted to our situation. First of all, we write ‖u − ũ h ‖≤|u| 0,ωh + |u| 1,ωh + |u h | 0,ωh + |u h | 1,ωh = A + B + C + D. (15) We assume here that u is C 2 in Ω \ O (the general case h ∈ H 2 (Ω \ O) is obtained immediately by density). Using polar coordinates (we assume here that the radius of O is 1), we write For i =1,2,onehas |u| 2 1,ω h = ∫ 2π ∫ 1+2h 0 ∂ i u(r, θ) =∂ i u(1,θ)+ 1 |∇u| 2 rdrdθ. ∫ r 1 ∂ r ∂ i udr,
so that |u| 2 1,ω h ≤ 2 Numerical Analysis of a Finite Element/Volume Penalty Method 179 ∫ 2π ∫ 1+2h 0 ∫ ≤ Ch ∂O ∫ 2π ∫ 1+2h ∫ |∂ i u(1,θ)| 2 r 2 rdrdθ+2 ∣ ∂ r ∂ i uds ∣ rdrdθ 1 0 1 1 2 ∫ ∂u 2π ∫ ( 1+2h ∫ ) 1+2h ∣∂n∣ +2h |∂ r ∂ i u| 2 ds rdrdθ ≤ Ch|u| 2 2,Ω\O + C′ h 2 |u| 2 2,Ω\O , 0 1 from which we deduce |u| 1,ωh ≤ Ch 1/2 . A similar computation on u gives immediately |u| 0,ωh ≤ Ch 3/2 .Asforũ h (the two last terms in (15)), the proof is less trivial. It relies on three technical lemmas which we give now before ending the proof. Lemma 2. There exist constants C and C ′ such that, for any non-degenerated triangle T , for any function w h affine in T , 1 C |T |‖w h ‖ 2 L ∞ (T ) ≤‖w h‖ 2 L 2 (T ) ≤ C′ |T |‖w h ‖ 2 L ∞ (T ) . (16) Proof. It is a consequence of the fact that, when deforming the supporting triangle T ,theL ∞ -norm is unchanged whereas the L 2 -norm scales like |T | 1/2 . Lemma 3. There exists a constant C such that, for any non-degenerated triangle T , for any function w h affine in T , |w h | 2 1,T ≤ C |T | ρ 2 ‖w h ‖ 2 L ∞ (T ) , T where ρ T is the diameter of the inscribed circle. Proof. Again, it is a straightforward consequence of the fact that, when deforming the supporting triangle T , L ∞ -norm is unchanged whereas the gradient (which is constant over the triangle) scales like 1/ρ T , so that the H 1 -seminorm scales like |T | /ρ T . The last lemma quantifies how one can control the L 2 -normoftheinterpolate of a regular function on a triangle, by means of the L 2 -norm and the H 2 -seminorm of the function. Lemma 4. There exists a constant C such that, for any regular triangle T (see below), for any u ∈ H 2 (T ), ) |I h u| 2 0,T (|u| ≤ C 2 0,T + h4 |u| 2 2,T . By regular, we mean that T runs over a set of triangles such that the flatness diam T/ρ T is bounded.
- Page 129 and 130: 122 R. Sanders and A.M. Tesdall D C
- Page 131 and 132: 124 R. Sanders and A.M. Tesdall 8.6
- Page 133 and 134: 126 R. Sanders and A.M. Tesdall 0.3
- Page 135 and 136: 128 R. Sanders and A.M. Tesdall [TR
- Page 137 and 138: 132 S. Lapin et al. Ω R γ Ω 2 Γ
- Page 139 and 140: 134 S. Lapin et al. ∫ ∂ 2 ∫
- Page 141 and 142: 136 S. Lapin et al. Ω R γ Fig. 3.
- Page 143 and 144: 138 S. Lapin et al. 4 Energy Inequa
- Page 145 and 146: 140 S. Lapin et al. 5 Numerical Exp
- Page 147 and 148: 142 S. Lapin et al. Fig. 6. Contour
- Page 149 and 150: 144 S. Lapin et al. Fig. 9. Obstacl
- Page 151 and 152: Domain Decomposition and Electronic
- Page 153 and 154: Domain Decomposition Approach for C
- Page 155 and 156: Domain Decomposition Approach for C
- Page 157 and 158: Domain Decomposition Approach for C
- Page 159 and 160: Domain Decomposition Approach for C
- Page 161 and 162: Domain Decomposition Approach for C
- Page 163 and 164: Domain Decomposition Approach for C
- Page 165 and 166: Domain Decomposition Approach for C
- Page 167 and 168: Domain Decomposition Approach for C
- Page 169 and 170: Numerical Analysis of a Finite Elem
- Page 171 and 172: Numerical Analysis of a Finite Elem
- Page 173 and 174: Numerical Analysis of a Finite Elem
- Page 175 and 176: Numerical Analysis of a Finite Elem
- Page 177 and 178: Numerical Analysis of a Finite Elem
- Page 179: Numerical Analysis of a Finite Elem
- Page 183 and 184: Numerical Analysis of a Finite Elem
- Page 185 and 186: Numerical Analysis of a Finite Elem
- Page 187 and 188: Numerical Analysis of a Finite Elem
- Page 189 and 190: 188 A. Bonito et al. of the model a
- Page 191 and 192: 190 A. Bonito et al. Fig. 1. The sp
- Page 193 and 194: 192 A. Bonito et al. 3 1 16 4 1 1 1
- Page 195 and 196: 194 A. Bonito et al. ∫ v n+1 h
- Page 197 and 198: 196 A. Bonito et al. −pn +2µD(v)
- Page 199 and 200: 198 A. Bonito et al. each of its pa
- Page 201 and 202: 200 A. Bonito et al. The normal vec
- Page 203 and 204: 202 A. Bonito et al. with initial c
- Page 205 and 206: 204 A. Bonito et al. Fig. 8. Jet bu
- Page 207 and 208: 206 A. Bonito et al. References [AM
- Page 209 and 210: 208 A. Bonito et al. [Set96] J. A.
- Page 211 and 212: 210 J. Hao et al. due to shear flow
- Page 213 and 214: 212 J. Hao et al. The backward reac
- Page 215 and 216: 214 J. Hao et al. where u and p den
- Page 217 and 218: 216 J. Hao et al. * * * * * * * * *
- Page 219 and 220: 218 J. Hao et al. and solve for V n
- Page 221 and 222: 220 J. Hao et al. Table 2. The calc
- Page 223 and 224: 222 J. Hao et al. References [ASS80
- Page 225 and 226: Computing the Eigenvalues of the La
- Page 227 and 228: Eigenvalues of the Laplace-Beltrami
- Page 229 and 230: Eigenvalues of the Laplace-Beltrami

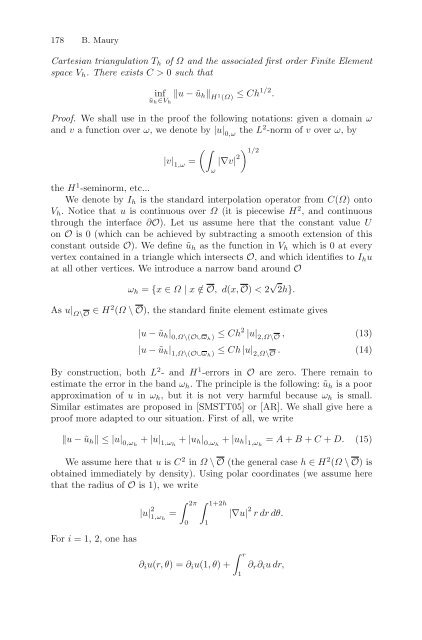

178 B. Maury<br />
Cartesian triangulation T h of Ω <strong>and</strong> the associated first order Finite Element<br />
space V h . There exists C>0 such that<br />
inf<br />
ũ h ∈V h<br />
‖u − ũ h ‖ H1 (Ω) ≤ Ch1/2 .<br />
Proof. We shall use in the proof the following notations: given a domain ω<br />
<strong>and</strong> v a function over ω, wedenoteby|u| 0,ω<br />
the L 2 -norm of v over ω, by<br />
(∫ ) 1/2<br />
|v| 1,ω<br />
= |∇v| 2<br />
ω<br />
the H 1 -seminorm, etc...<br />
We denote by I h is the st<strong>and</strong>ard interpolation operator from C(Ω) onto<br />
V h . Notice that u is continuous over Ω (it is piecewise H 2 , <strong>and</strong> continuous<br />
through the interface ∂O). Let us assume here that the constant value U<br />
on O is 0 (which can be achieved by subtracting a smooth extension of this<br />
constant outside O). We define ũ h as the function in V h which is 0 at every<br />
vertex contained in a triangle which intersects O, <strong>and</strong> which identifies to I h u<br />
at all other vertices. We introduce a narrow b<strong>and</strong> around O<br />
ω h = {x ∈ Ω | x/∈ O, d(x, O) < 2 √ 2h}.<br />
As u| Ω\O<br />
∈ H 2 (Ω \ O), the st<strong>and</strong>ard finite element estimate gives<br />
|u − ũ h | 0,Ω\(O∪ωh ) ≤ Ch2 |u| 2,Ω\O<br />
, (13)<br />
|u − ũ h | 1,Ω\(O∪ωh ) ≤ Ch|u| 2,Ω\O . (14)<br />
By construction, both L 2 -<strong>and</strong>H 1 -errors in O are zero. There remain to<br />
estimate the error in the b<strong>and</strong> ω h . The principle is the following: ũ h is a poor<br />
approximation of u in ω h , but it is not very harmful because ω h is small.<br />
Similar estimates are proposed in [SMSTT05] or [AR]. We shall give here a<br />
proof more adapted to our situation. First of all, we write<br />
‖u − ũ h ‖≤|u| 0,ωh<br />
+ |u| 1,ωh<br />
+ |u h | 0,ωh<br />
+ |u h | 1,ωh<br />
= A + B + C + D. (15)<br />
We assume here that u is C 2 in Ω \ O (the general case h ∈ H 2 (Ω \ O) is<br />
obtained immediately by density). Using polar coordinates (we assume here<br />
that the radius of O is 1), we write<br />
For i =1,2,onehas<br />
|u| 2 1,ω h<br />
=<br />
∫ 2π ∫ 1+2h<br />
0<br />
∂ i u(r, θ) =∂ i u(1,θ)+<br />
1<br />
|∇u| 2 rdrdθ.<br />
∫ r<br />
1<br />
∂ r ∂ i udr,
