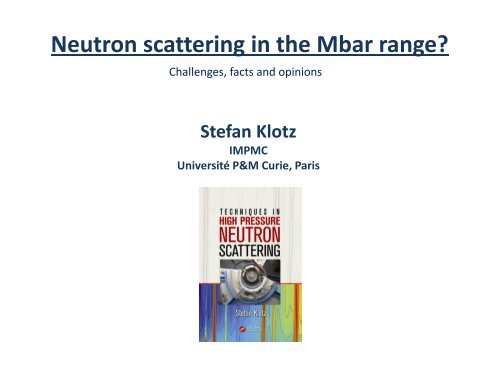

Neutron scattering in the <strong>Mbar</strong> range?<br />
Challenges, facts and opinions<br />
Stefan Klotz<br />
IMPMC<br />
Université P&M Curie, Paris
1 <strong>Mbar</strong> = 1000 tn/cm 2 1 <strong>Mbar</strong><br />
1 <strong>Mbar</strong> on 1 cm 3 sample would require<br />
at least 3000 tonnes.<br />
More realistic: 10 000 tn<br />
(mass of Eiffel tower: 7000 tn)
‘5000‘ ton press BGI<br />
(Bayreuth)<br />
‘50000 ‘ ton press Troitsk<br />
(Moscow area)
Outline
A naive approach: cylinder<br />
‘monobloc ‘<br />
‘compound ‘<br />
Ø int<br />
Ø ext<br />
K = Ø ext / Ø int ‘wall ratio’<br />
Y: yield strength
Cylinder: burst pressure
Cylinder: summary
Segmented cylinder<br />
jacket<br />
segments<br />
liner<br />
1 <strong>Mbar</strong>: K 450; Ø int = 5mm, Ø ext = 2.25 meter !<br />
But: piston holds at most 3 GPa
V max vs P max : Cylinders, belts
Belt devices<br />
Geometry unfavourable<br />
D. Dobson et al., 2005
Bridgman anvils
Bridgman anvils<br />
(flat, profiled, toroidal)
Profiled Bridgman anvils (mostly toroidal * )<br />
Sample: 80 mm 3<br />
10 mm<br />
WC (to 15 GPa)<br />
cBN (to 12 GPa)<br />
TiZr gasket (zero scattering)<br />
Sintered diamond: 30 GPa<br />
V = 30 mm 3<br />
*L.G. Khvostantsev et al., High Temp.-High Press. 9, 637 (1977)
detectors<br />
detectors<br />
Collimation<br />
Incident beam<br />
(polychromatic)<br />
S<br />
Incident beam<br />
(monochromatic)<br />
S<br />
high pressure cell<br />
high-pressure cell<br />
energy-dispersive diffraction<br />
2 = 90°<br />
Pulsed sources<br />
(ISIS, SNS, JPARC)<br />
angle-dispersive diffraction<br />
Continuous sources (ILL, SINQ)
Background: diffraction at 90° (example: PEARL @ISIS)<br />
S. K. et al., Appl. Phys. Lett. 66, 1735 (1995)<br />
Fe 3 O 4<br />
Only visible<br />
reflection<br />
from anvils
Background: angle dispersive diffraction (example: D20 @ILL, HRPT@SINQ)<br />
S. K. et al., Appl. Phys. Lett. 86 031917 (2005)<br />
TiZr gasket: no Bragg peaks<br />
NiO<br />
0 GPa<br />
sample<br />
n<br />
c-BN anvils:<br />
absorb neutrons<br />
NiO<br />
9.5 GPa<br />
No contamination from gasket/anvil
Load frames: capacity 50 - 450 tonnes<br />
A fact: current P-limit is set by anvils<br />
not by the load frame
Diamond anvil cells (DACs)
Besedin et al., 1985; Goncharenko 2005
Diamond<br />
Moissanite<br />
Courtesy C.L. Bull
DACs: Single crystals<br />
Glazkov et al. 1988<br />
D 2<br />
D 2<br />
V=10 -2 mm 3<br />
3 reflections to 31 GPa<br />
38 GPa<br />
5 reflections to 38 GPa<br />
Goncharenko & Loubeyre 2004
DACs: Powders<br />
Goncharenko et al., 2000<br />
But: Eu 3+ , Gd 3+ : m = 7 B !
DACS: Powders<br />
But: ice VII is an extemely strong scatterer!<br />
completely fills the pressure chamber
Multianvil cells
E. Ito, Misasa<br />
Multianvil cells: x-rays
Multianvil cells: neutrons<br />
500 tn<br />
800 tn<br />
PLANET (JPARC)<br />
under construction<br />
BGI (Bayreuth), for FRMII?
Conclusions-Perspectives-Opinions<br />
1. The only currently available technologies for<br />
reaching 1 <strong>Mbar</strong> are DACs and multianvil cells<br />
2. The impact of DACs will remain very limited as long as the<br />
sample volume is less than 0.1 mm 3<br />
Powders: limited to very strong scatterers<br />
Single crystals: Obtain one! Not enough reflections, time<br />
consuming
3. A serious perspective for 0.1-0.5 mm 3 samples at 1 <strong>Mbar</strong> are<br />
multianvil cells.<br />
BUT:<br />
Are likely to be restricted to spallation sources<br />
Complex assembly, needs highly specialized team<br />
Very restricted applications: no low T, no excitations, not<br />
transferable to other beamlines.<br />
Most important: Serves only the Earth science community: the<br />
decision is highly political.
Political issues<br />
PLANET<br />
5<br />
0<br />
0<br />
t<br />
n<br />
Earthquakes
Other issues: neighbors: x-rays<br />
In the high P/T buisseness you will always<br />
feel a strong competition with synchrotrons
Ohtani et al. (2001)
Other options?<br />
Focus on high P – low T phenomena<br />
Bet on small versatile devices with opposed anvils geometry<br />
Existing load frames of
Nano-polycrystalline diamond (NPD)<br />
(Irifune, 2001)
Thank you!
