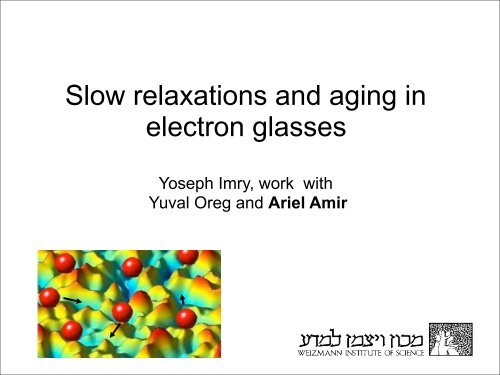

Slow relaxations and aging in electron glasses Yoseph Imry, work with Yuval Oreg and Ariel Amir
- Page 2 and 3: Outline • What are glasses? • S
- Page 4 and 5: Common features of glassy models
- Page 6 and 7: Slow relaxations in nature string W
- Page 8 and 9: Slow relaxations in nature string W
- Page 10 and 11: An Aging Protocol (Ludwig, Osheroff
- Page 12 and 13: An Aging Protocol (Ludwig, Osheroff
- Page 14 and 15: Aging and universality Amir, Oreg a
- Page 16 and 17: The model • Strong localization d
- Page 18 and 19: “Local mean-field” approximatio
- Page 20 and 21: “Local mean-field” approximatio
- Page 22 and 23: “Local mean-field” approximatio
- Page 24 and 25: “Local mean-field” approximatio
- Page 26 and 27: “Local mean-field” approximatio
- Page 28 and 29: “Local mean-field” approximatio
- Page 30 and 31: VRH (Mott) to E-S Crossover Scaling
- Page 32 and 33: “Local mean-field” approximatio
- Page 34 and 35: Solution near locally stable point
- Page 36 and 37: Eigenvalue Distribution Solving num
- Page 38 and 39: Outline • What are glasses? • S
- Page 40 and 41: Digression: Random Matrix Theory in
- Page 42 and 43: Digression: What are Random Distanc
- Page 44 and 45: Digression: What are Random Distanc
- Page 46 and 47: Relaxation in electron glasses Amir
- Page 48 and 49: Results
- Page 50 and 51: Results (no fitting parameters)
Slow relaxations and aging in<br />
electron glasses<br />
<strong>Yoseph</strong> <strong>Imry</strong>, work with<br />
Yuval Oreg and Ariel Amir
Outline<br />
• What are glasses?<br />
• Slow relaxations and aging<br />
• Electron glass model<br />
• statics (Coulomb gap)<br />
• conductance (Variable Range Hopping)<br />
Dynamics:<br />
• mapping to a new class of Random Matrix Theory (RMT)<br />
• Solution of this RMT,<br />
distribution<br />
• Implications of<br />
distribution on aging.<br />
• Connection to 1/f noise<br />
• Conclusions
Common features of glassy models<br />
• Quenched disorder.<br />
• Rugged energy landscape:<br />
Many states close to ground state.<br />
• Aging and memory effects:<br />
relaxation depends on system ‘age’<br />
Judean desert<br />
General questions: structure of states, out-of-equilibrium dynamics?
Common features of glassy models<br />
• Quenched disorder.<br />
• Rugged energy landscape:<br />
Many states close to ground state.<br />
• Aging and memory effects:<br />
relaxation depends on system ‘age’<br />
Physical examples<br />
Judean desert<br />
• Structural glass (window glass)<br />
• Various magnetic materials.<br />
• Packing of hard spheres.<br />
• Electron glass!<br />
(long-ranged interactions, but not infinite!)<br />
General questions: structure of states, out-of-equilibrium dynamics?
Common features of glassy models<br />
• Quenched disorder.<br />
• Rugged energy landscape:<br />
Many states close to ground state.<br />
• Aging and memory effects:<br />
relaxation depends on system ‘age’<br />
Physical examples<br />
Judean desert<br />
• Structural glass (window glass)<br />
• Various magnetic materials.<br />
• Packing of hard spheres.<br />
• Electron glass!<br />
(long-ranged interactions, but not infinite!)<br />
General questions: structure of states, out-of-equilibrium dynamics?
Slow relaxations in nature<br />
string<br />
W. Weber, Ann. Phys. (1835)<br />
D. S. Thompson, J. Exp. Bot. (2001)<br />
mass
Slow relaxations in nature<br />
string<br />
W. Weber, Ann. Phys. (1835)<br />
D. S. Thompson, J. Exp. Bot. (2001)<br />
mass<br />
Electron glass- Experimental system<br />
Logarithmic relaxations for 5 days!
Slow relaxations in nature<br />
string<br />
W. Weber, Ann. Phys. (1835)<br />
D. S. Thompson, J. Exp. Bot. (2001)<br />
mass<br />
Electron glass- Experimental system<br />
Logarithmic relaxations for 5 days!<br />
What are the ingredients leading<br />
to slow relaxations?
An Aging Protocol (Ludwig, Osheroff)<br />
5 V/µm<br />
E<br />
t w<br />
E<br />
15 µm thick Mylar (slide)<br />
(amorphous polyester)<br />
Or BK7-window glass<br />
t=0 t=hours<br />
t
An Aging Protocol (Ludwig, Osheroff)<br />
• Step I: Cool the system and let it relax for a long time (days)<br />
5 V/µm<br />
E<br />
t w<br />
E<br />
15 µm thick Mylar (slide)<br />
(amorphous polyester)<br />
Or BK7-window glass<br />
t=0 t=hours<br />
t
An Aging Protocol (Ludwig, Osheroff)<br />
• Step I: Cool the system and let it relax for a long time (days)<br />
• Step II: Switch on “the perturbation”<br />
5 V/µm<br />
E<br />
t w<br />
E<br />
15 µm thick Mylar (slide)<br />
(amorphous polyester)<br />
Or BK7-window glass<br />
t=0 t=hours<br />
t
An Aging Protocol (Ludwig, Osheroff)<br />
• Step I: Cool the system and let it relax for a long time (days)<br />
• Step II: Switch on “the perturbation”<br />
• Step III: After aging time t w – Switch the perturbation off<br />
5 V/µm<br />
E<br />
t w<br />
E<br />
15 µm thick Mylar (slide)<br />
(amorphous polyester)<br />
Or BK7-window glass<br />
t=0 t=hours<br />
t
An Aging Protocol (Ludwig, Osheroff)<br />
• Step I: Cool the system and let it relax for a long time (days)<br />
• Step II: Switch on “the perturbation”<br />
• Step III: After aging time t w – Switch the perturbation off<br />
• Throughout the experiment a physical property (dielectric constant) is measured<br />
as a function of time<br />
5 V/µm<br />
E<br />
t w<br />
E<br />
15 µm thick Mylar (slide)<br />
(amorphous polyester)<br />
Or BK7-window glass<br />
t=0 t=hours<br />
t
Aging and universality<br />
Amir, Oreg and <strong>Imry</strong>, to be published
The model<br />
• Strong localization due to disorder<br />
randomly positioned sites, on-site disorder.<br />
• Coulomb interactions are included<br />
• “Phonons” induce transitions between configurations.<br />
• Interference (quantum) effects neglected.<br />
e.g:<br />
Pollak (1970)<br />
Shklovskii and Efros (1975)<br />
Ovadyahu and Pollak (2003)<br />
Muller and Ioffe (2004)
The model<br />
• Strong localization due to disorder<br />
randomly positioned sites, on-site disorder.<br />
• Coulomb interactions are included<br />
• “Phonons” induce transitions between configurations.<br />
• Interference (quantum) effects neglected.<br />
e.g:<br />
Pollak (1970)<br />
Shklovskii and Efros (1975)<br />
Ovadyahu and Pollak (2003)<br />
Muller and Ioffe (2004)
“Local mean-field” approximation - Dynamics
“Local mean-field” approximation - Dynamics
“Local mean-field” approximation - Dynamics
“Local mean-field” approximation - Dynamics<br />
• includes the interactions<br />
• N is the Bose-Einstein distribution<br />
• ξ - the localization length
“Local mean-field” approximation - Dynamics<br />
• includes the interactions<br />
• N is the Bose-Einstein distribution<br />
• ξ - the localization length<br />
At long times:<br />
• The system reaches a locally stable point (metastable state).<br />
• Many metastable states<br />
(“Pseudo-ground-states”, Baranovski et al., J. Phys. C, 1979)
“Local mean-field” approximation - Equilibrium<br />
• Detailed balance leads to Fermi-Dirac statistics (n j f j ).<br />
• Self-consistent set of equations for the energies:<br />
(assuming half filling).
“Local mean-field” approximation - Equilibrium<br />
• Detailed balance leads to Fermi-Dirac statistics (n j f j ).<br />
• Self-consistent set of equations for the energies:<br />
(assuming half filling).<br />
Yields linear Coulomb gap<br />
(+ temperature dependence)<br />
M. Pollak, Discuss. Faraday Soc (1970)<br />
A.L. Efros and B.I. Shklovskii,<br />
J. Phys. C (1975)<br />
A. L. Efros, J. Phys. C (1976).<br />
M. Grunewald et al., J. Phys. C. (1982)<br />
AA et al., PRB (2008)<br />
Surer et al., PRL (2009)<br />
Goethe et al., PRL (2009)
“Local mean-field” approximation - Equilibrium<br />
• Detailed balance leads to Fermi-Dirac statistics (n j f j ).<br />
• Self-consistent set of equations for the energies:<br />
(assuming half filling).<br />
Yields linear Coulomb gap<br />
(+ temperature dependence)<br />
M. Pollak, Discuss. Faraday Soc (1970)<br />
A.L. Efros and B.I. Shklovskii,<br />
J. Phys. C (1975)<br />
A. L. Efros, J. Phys. C (1976).<br />
M. Grunewald et al., J. Phys. C. (1982)<br />
AA et al., PRB (2008)<br />
Surer et al., PRL (2009)<br />
Goethe et al., PRL (2009)
“Local mean-field” approximation - Equilibrium<br />
• Detailed balance leads to Fermi-Dirac statistics (n j f j ).<br />
• Self-consistent set of equations for the energies:<br />
(assuming half filling).<br />
AA et al., PRB (2009)<br />
Yields linear Coulomb gap<br />
(+ temperature dependence)<br />
M. Pollak, Discuss. Faraday Soc (1970)<br />
A.L. Efros and B.I. Shklovskii,<br />
J. Phys. C (1975)<br />
A. L. Efros, J. Phys. C (1976).<br />
M. Grunewald et al., J. Phys. C. (1982)<br />
AA et al., PRB (2008)<br />
Surer et al., PRL (2009)<br />
Goethe et al., PRL (2009)
“Local mean-field” approximation – Steady State<br />
Miller-Abrahams resistance network (no interactions)<br />
Equilibrium rates,<br />
obeying detailed balance<br />
A. Miller and E. Abrahams, (Phys. Rev. 1960)<br />
Generalization<br />
1) Find n i and E i such that the system is in steady<br />
state.<br />
2) Construct resistance network.
“Local mean-field” approximation – Steady State<br />
With interactions (ES)<br />
Without interactions (Mott, VRH)<br />
GeAs samples Shlimak, Kaveh, Yosefin,<br />
Lea and Fozooni (1992)<br />
Ovadyahu (2003)
“Local mean-field” approximation – Steady State<br />
With interactions (ES)<br />
Without interactions (Mott, VRH)<br />
GeAs samples Shlimak, Kaveh, Yosefin,<br />
Lea and Fozooni (1992)<br />
Ovadyahu (2003)
“Local mean-field” approximation – Steady State<br />
With interactions (ES)<br />
Without interactions (Mott, VRH)<br />
GeAs samples Shlimak, Kaveh, Yosefin,<br />
Lea and Fozooni (1992)<br />
Ovadyahu (2003)
VRH (Mott) to E-S Crossover<br />
Scaling is obeyed at crossover,<br />
Slope is ~0.49 0.02<br />
Slope is ~0.34 0.01<br />
Amir, Oreg and <strong>Imry</strong> , PRB (2009)
“Local mean-field” approximation - Dynamics
“Local mean-field” approximation - Dynamics<br />
We saw: approach works well for statics & steady-states!<br />
Moving on to dynamics…
Solution near locally stable point<br />
Close enough to the equilibrium (locally) stable point,<br />
one can linearize the equations, leading to the equation:
Solution near locally stable point<br />
Close enough to the equilibrium (locally) stable point,<br />
one can linearize the equations, leading to the equation:<br />
(Anderson Localization)<br />
Sum of columns vanishes (particle conservation number)
Solution near locally stable point<br />
Close enough to the equilibrium (locally) stable point,<br />
one can linearize the equations, leading to the equation:<br />
(Anderson Localization)<br />
Sum of columns vanishes (particle conservation number)<br />
For low temperatures, near a local minimum,<br />
second term is negligible <br />
All eigenvalues are real and negative
Eigenvalue Distribution<br />
Solving numerically shows a distribution proportional to :<br />
Eigenvalue distribution<br />
Eigenvalues
Changing the interaction strength<br />
• Slow relaxations occur also without interactions.<br />
• Interactions push the distribution to (s)lower values.
Outline<br />
• What are glasses?<br />
• Slow relaxations and aging<br />
• Electron glass model<br />
• statics (Coulomb gap)<br />
• conductance (Variable Range Hopping)<br />
Dynamics:<br />
• mapping to a new class of Random Matrix Theory (RMT)<br />
• Solution of RMT <br />
• Implications of<br />
distribution<br />
distribution on aging.<br />
• Connection to 1/f noise<br />
• Conclusions
Digression: Random Matrix Theory in a nutshell<br />
• Define a matrix with A ij independent, Gaussian variables.<br />
• Distribution of eigenvalues follows the “Wigner semicircle law”:
Digression: Random Matrix Theory in a nutshell<br />
• Define a matrix with A ij independent, Gaussian variables.<br />
• Distribution of eigenvalues follows the “Wigner semicircle law”:<br />
• Why is this interesting? Wide applications include:<br />
Nuclear physics Wigner and Dirac (1951) Atomic physics Camarda and<br />
Georgopulos PRL (1983) Mesoscopics <strong>Imry</strong>, EPL (1986), Beenakker, PRL<br />
(1993) Chaotic systems Bohigas, Giannoni and Schmit, PRL (1984) …And<br />
many more.
Digression: Random Matrix Theory in a nutshell<br />
• Define a matrix with A ij independent, Gaussian variables.<br />
• Distribution of eigenvalues follows the “Wigner semicircle law”:<br />
• Why is this interesting? Wide applications include:<br />
Nuclear physics Wigner and Dirac (1951) Atomic physics Camarda and<br />
Georgopulos PRL (1983) Mesoscopics <strong>Imry</strong>, EPL (1986), Beenakker, PRL<br />
(1993) Chaotic systems Bohigas, Giannoni and Schmit, PRL (1984) …And<br />
many more.<br />
In the following we present a different class of RMT, also broadly applicable
Digression: What are Random Distance Matrices?<br />
1) Choose N points randomly and uniformly in a d-dimensional cube.<br />
Bogomolny, Bohigas, and Schmit, J. Phys. A: Math. Gen. (2003).<br />
Mezard, Parisi and Zee, Nucl. Phys. (1999)
Digression: What are Random Distance Matrices?<br />
1) Choose N points randomly and uniformly in a d-dimensional cube.<br />
2) Define the off-diagonals of our matrix as:<br />
(Euclidean distance)<br />
r ij<br />
Bogomolny, Bohigas, and Schmit, J. Phys. A: Math. Gen. (2003).<br />
Mezard, Parisi and Zee, Nucl. Phys. (1999)
Digression: What are Random Distance Matrices?<br />
1) Choose N points randomly and uniformly in a d-dimensional cube.<br />
2) Define the off-diagonals of our matrix as:<br />
(Euclidean distance)<br />
3) Define diagonal as:<br />
r ij<br />
sum of every column vanishes<br />
(will come from a conservation law)<br />
Bogomolny, Bohigas, and Schmit, J. Phys. A: Math. Gen. (2003).<br />
Mezard, Parisi and Zee, Nucl. Phys. (1999)
Digression: What are Random Distance Matrices?<br />
1) Choose N points randomly and uniformly in a d-dimensional cube.<br />
2) Define the off-diagonals of our matrix as:<br />
(Euclidean distance)<br />
3) Define diagonal as:<br />
r ij<br />
sum of every column vanishes<br />
(will come from a conservation law)<br />
Q: What is the eigenvalue distribution?<br />
What are the eigenmodes?
Relaxation in electron glasses<br />
Amir, Oreg and <strong>Imry</strong>, PRB 2008<br />
Distance matrices – Motivation<br />
Anomalous diffusion<br />
Scher and Montroll, PRB 1975<br />
Metzler, Barkai and Klafter, PRL 1999<br />
Localization of phonons<br />
Ziman, PRL 1982<br />
Photon propagation in a gas<br />
Akkermans, Gero and Kaiser, PRL 2008
Results – 2D
Results
Results<br />
(no fitting parameters)
Results<br />
(no fitting parameters)
Exponential Distance Matrices- results<br />
(arbitrary dimension d)<br />
C d =volume of a d-dimensional sphere<br />
• Logarithmic corrections to<br />
• In dimensions > 1: cutoff at<br />
Amir, Oreg and <strong>Imry</strong>, arxiv: 1002.2123
Analytical approach in a nutshell<br />
Part I – Moment calculation<br />
The k’th moment:<br />
leads to the distribution function.
Renormalization group approach
Renormalization group approach<br />
Mechanical intuition: network of masses and springs
Renormalization group approach
Renormalization group approach
Renormalization group approach<br />
RG procedure yields growing clusters
Renormalization group approach<br />
3’rd 1000<br />
3000 4000<br />
Examples of eigenmodes of a 5000X5000 matrix
Renormalization group approach<br />
Eigenvalue distribution<br />
+<br />
RG approach<br />
Number of points in a cluster of a given eigenvalue
Renormalization group approach<br />
Eigenvalue distribution<br />
+<br />
RG approach<br />
Number of points in a cluster of a given eigenvalue<br />
• Eigenmodes are localized clusters (“phonon localization”)<br />
• Size of clusters diverges at low frequencies<br />
Amir, Oreg and <strong>Imry</strong>, Localization, anomalous diffusion and slow relaxations:<br />
a random distance matrix approach, arxiv: 1002.2123
Intermediate Summary<br />
• Statics: Coulomb gap<br />
• Steady-state: variable range hopping, crossover between two regimes<br />
• Dynamics: Microscopic model reduces to RMT problem of a different class.<br />
• Eigenvalue distribution (relaxation times) follow approximately<br />
distribution.<br />
• Same RMT class relevant for various other problems.
Electron glass aging– experimental protocol
Electron glass aging– experimental protocol<br />
Step I<br />
System equilibrates for long time
Electron glass aging– experimental protocol<br />
Step I<br />
System equilibrates for long time<br />
Step II<br />
V g is changed, for a time of t w .
Electron glass aging– experimental protocol<br />
Step I<br />
System equilibrates for long time<br />
Step II<br />
V g is changed, for a time of t w .<br />
Experiment<br />
Theory<br />
Throughout the experiment<br />
Conductance is measured as a<br />
function of time.<br />
Data: Ovadyahu et al.
“Full” aging<br />
• For various physical systems:
“Full” aging<br />
• For various physical systems:<br />
Electron glass<br />
Vaknin et al., PRL (2000)
“Full” aging<br />
• For various physical systems:<br />
Other experiments showing full aging:<br />
•Spin glass<br />
Rodriguez et al., PRL (2003)<br />
• Vortices in superconductors<br />
Electron glass<br />
Vaknin et al., PRL (2000)<br />
Du et al., Nature Physics (2007)<br />
•Granular metals<br />
N. Kurzweil et al., PRB (2007)
Aging – physical picture<br />
Assume a parameter of the system is slightly modified (e.g: V g )<br />
After time t w it is changed back. What is the repsonse?<br />
Initially, system is at some local minimum
Aging – physical picture<br />
Assume a parameter of the system is slightly modified (e.g: V g )<br />
After time t w it is changed back. What is the repsonse?<br />
At time t=0 the potential changes,<br />
and the system begins to roll towards the new minimum
Aging – physical picture<br />
Assume a parameter of the system is slightly modified (e.g: V g )<br />
After time t w it is changed back. What is the repsonse?<br />
At time t w the system reached some new configuration
Aging – physical picture<br />
Assume a parameter of the system is slightly modified (e.g: V g )<br />
After time t w it is changed back. What is the repsonse?<br />
Now the potential is changed back to the initial formthe<br />
particle is not in the minimum!<br />
The longer t w , the further it got away from it.<br />
It will begin to roll down the hill.
Aging – Analysis<br />
Assume a parameter of the system is slightly modified (e.g: V g )<br />
After time t w it is changed back. What is the response?<br />
t=t w<br />
a<br />
b<br />
t=0
Aging – Analysis<br />
Assume a parameter of the system is slightly modified (e.g: V g )<br />
After time t w it is changed back. What is the response?<br />
t=t w<br />
a<br />
Sketch of calculation<br />
If a and b configurations are close enough in phase space:<br />
b<br />
t=0
Aging – Analysis<br />
Assume a parameter of the system is slightly modified (e.g: V g )<br />
After time t w it is changed back. What is the response?<br />
t=t w<br />
a<br />
Sketch of calculation<br />
If a and b configurations are close enough in phase space:<br />
b<br />
t=0
Aging – Analysis<br />
Assume a parameter of the system is slightly modified (e.g: V g )<br />
After time t w it is changed back. What is the response?<br />
t=t w<br />
a<br />
Sketch of calculation<br />
If a and b configurations are close enough in phase space:<br />
b<br />
t=0
Aging – Analysis<br />
Assume a parameter of the system is slightly modified (e.g: V g )<br />
After time t w it is changed back. What is the response?<br />
t=t w<br />
a<br />
Sketch of calculation<br />
If a and b configurations are close enough in phase space:<br />
b<br />
t=0
Aging – Analysis<br />
Assume a parameter of the system is slightly modified (e.g: V g )<br />
After time t w it is changed back. What is the response?<br />
t=t w<br />
a<br />
Sketch of calculation<br />
If a and b configurations are close enough in phase space:<br />
b<br />
t=0<br />
Logarithmic relaxation during step II
Aging – Analysis<br />
Assume a parameter of the system is slightly modified (e.g: V g )<br />
After time t w it is changed back. What is the response?<br />
t=t w<br />
a<br />
Sketch of calculation<br />
If a and b configurations are close enough in phase space:<br />
b<br />
t=0<br />
Time t after the perturbation is switched off:<br />
Logarithmic relaxation during step II
Aging – Analysis<br />
Assume a parameter of the system is slightly modified (e.g: V g )<br />
After time t w it is changed back. What is the response?<br />
t=t w<br />
a<br />
Sketch of calculation<br />
If a and b configurations are close enough in phase space:<br />
b<br />
t=0<br />
Time t after the perturbation is switched off:<br />
Logarithmic relaxation during step II<br />
Full aging<br />
Only<br />
distribution yields full aging!<br />
See also: T. Grenet et al. Eur. Phys. J B 56, 183 (2007)
Aging Protocol - Results<br />
Amir, Oreg and <strong>Imry</strong>, PRL 2009
Connection to conductance relaxation?<br />
If we assume<br />
We obtain full aging:<br />
Assuming a linear dependence leads to:<br />
For short times:<br />
For long times:
Detailed fit to experimental data<br />
• Full aging<br />
• Deviations from logarithm start at<br />
Amir, Oreg and <strong>Imry</strong>, PRL (2009)
Full aging and universality<br />
Amir, Oreg and <strong>Imry</strong>, to be published
Other protocols…?<br />
Periodic voltage<br />
Theory vs. Experiment<br />
(Exp.: Ovadyahu et al., PRB 2003)
Other protocols…?<br />
Periodic voltage<br />
Theory vs. Experiment<br />
(Exp.: Ovadyahu et al., PRB 2003)
Connection to 1/f noise?<br />
Amir, Oreg, and <strong>Imry</strong><br />
arXiv:0911.5060, Ann. Phys. 2009<br />
Langevin Noise<br />
Equipartition theorem: each eigenmode should get<br />
The mean-field equations can be derived from a free energy:<br />
From this we can find the noise correlations matrix:<br />
The<br />
spectrum then leads to a 1/f noise spectrum:<br />
B.I. Shklovskiı,<br />
Solid State Commun (1980)<br />
K. Shtengel et al.,<br />
PRB (2003)
Conclusions<br />
• Statics: Coulomb gap, Steady-state (conductance): Variable Range Hopping<br />
• Dynamics near locally stable point: many slow modes,<br />
distribution.<br />
How universal? We believe: a very relevant RMT class.<br />
• One obtains full aging, with relaxation approximately of the form :<br />
More details:<br />
Phys. Rev. B 77, 1, 2008 (mean-field model)<br />
Phys. Rev. Lett. 103, 126403 (2009) (aging properties)<br />
Phys. Rev. B 80, 245214 2009 (variable-range hopping)<br />
Ann. Phys. 18, 12, 836 (2009) (1/f noise)<br />
arxiv: 1002.2123 (exponential matrices – solution)
