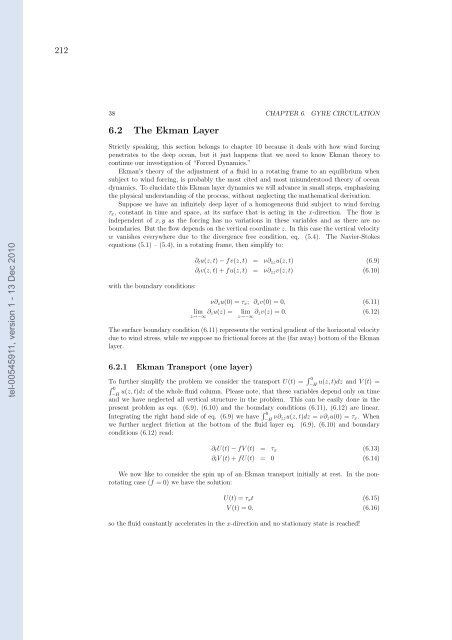

212<br />
38 CHAPTER 6. GYRE CIRCULATION<br />
6.2 The Ekman Layer<br />
tel-00545911, version 1 - 13 Dec 2010<br />
Strictly speaking, this section belongs to chapter 10 because it <strong>de</strong>als with how wind forcing<br />
pen<strong>et</strong>rates to the <strong>de</strong>ep ocean, but it just happens that we need to know Ekman theory to<br />
continue our investigation of “Forced Dynamics.”<br />
Ekman’s theory of the adjustment of a fluid in a rotating frame to an equilibrium when<br />
subject to wind forcing, is probably the most cited and most misun<strong>de</strong>rstood theory of ocean<br />
dynamics. To elucidate this Ekman layer dynamics we will advance in small steps, emphasizing<br />
the physical un<strong>de</strong>rstanding of the process, without neglecting the mathematical <strong>de</strong>rivation.<br />
Suppose we have an infinitely <strong>de</strong>ep layer of a homogeneous fluid subject to wind forcing<br />
τ x , constant in time and space, at its surface that is acting in the x-direction. The flow is<br />
in<strong>de</strong>pen<strong>de</strong>nt of x,y as the forcing has no variations in these variables and as there are no<br />
boundaries. But the flow <strong>de</strong>pends on the vertical coordinate z. In this case the vertical velocity<br />
w vanishes everywhere due to the divergence free condition, eq. (5.4). The Navier-Stokes<br />
equations (5.1) – (5.4), in a rotating frame, then simplify to:<br />
with the boundary conditions:<br />
∂ t u(z,t) − fv(z,t) = ν∂ zz u(z,t) (6.9)<br />
∂ t v(z,t) + fu(z,t) = ν∂ zz v(z,t) (6.10)<br />
ν∂ z u(0) = τ x ; ∂ z v(0) = 0, (6.11)<br />
lim ∂ zu(z) =<br />
z→−∞<br />
lim ∂ zv(z) = 0. (6.12)<br />
z→−∞<br />
The surface boundary condition (6.11) represents the vertical gradient of the horizontal velocity<br />
due to wind stress, while we suppose no frictional forces at the (far away) bottom of the Ekman<br />
layer.<br />
6.2.1 Ekman Transport (one layer)<br />
To further simplify the problem we consi<strong>de</strong>r the transport U(t) = ∫ 0<br />
∫ 0<br />
−H<br />
−H<br />
u(z,t)dz and V (t) =<br />
u(z,t)dz of the whole fluid column. Please note, that these variables <strong>de</strong>pend only on time<br />
and we have neglected all vertical structure in the problem. This can be easily done in the<br />
present problem as eqs. (6.9), (6.10) and the boundary conditions (6.11), (6.12) are linear.<br />
Integrating the right hand si<strong>de</strong> of eq. (6.9) we have ∫ 0<br />
ν∂ −H zzu(z,t)dz = ν∂ z u(0) = τ x . When<br />
we further neglect friction at the bottom of the fluid layer eq. (6.9), (6.10) and boundary<br />
conditions (6.12) read:<br />
∂ t U(t) − fV (t) = τ x (6.13)<br />
∂ t V (t) + fU(t) = 0 (6.14)<br />
We now like to consi<strong>de</strong>r the spin up of an Ekman transport initially at rest. In the nonrotating<br />
case (f = 0) we have the solution:<br />
U(t) = τ x t (6.15)<br />
V (t) = 0, (6.16)<br />
so the fluid constantly accelerates in the x-direction and no stationary state is reached!
