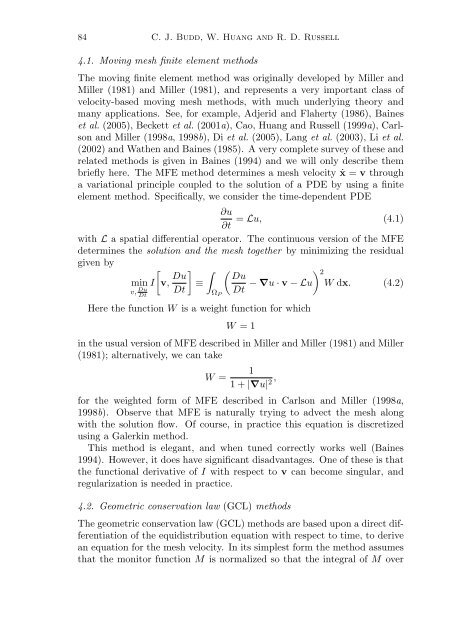

84 C. J. Budd, W. Huang and R. D. Russell<br />
4.1. Moving mesh finite element methods<br />
The <strong>moving</strong> finite element method was originally developed by Miller and<br />
Miller (1981) and Miller (1981), and represents a very important class of<br />
velocity-based <strong>moving</strong> mesh methods, <strong>with</strong> much underlying theory and<br />
many applications. See, for example, Adjerid and Flaherty (1986), Baines<br />
et al. (2005), Beckett et al. (2001a), Cao, Huang and Russell (1999a), Carlson<br />
and Miller (1998a, 1998b), Di et al. (2005), Lang et al. (2003), Li et al.<br />
(2002) and Wathen and Baines (1985). A very complete survey of these and<br />
related methods is given in Baines (1994) and we will only describe them<br />
briefly here. The MFE method determines a mesh velocity ẋ = v through<br />
a variational principle coupled to the solution of a PDE by using a finite<br />
element method. Specifically, we consider the time-dependent PDE<br />
∂u<br />
= Lu, (4.1)<br />
∂t<br />
<strong>with</strong> L a spatial differential operator. The continuous version of the MFE<br />
determines the solution and the mesh together by minimizing the residual<br />
given by<br />
[<br />
min I v, Du ] ∫ ( ) Du<br />
2<br />
≡<br />
v, Du Dt<br />
Dt<br />
Ω P<br />
Dt − ∇u · v −Lu W dx. (4.2)<br />
Here the function W is a weight function for which<br />
W =1<br />
in the usual version of MFE described in Miller and Miller (1981) and Miller<br />
(1981); alternatively, we can take<br />
1<br />
W =<br />
1+|∇u| 2 ,<br />
for the weighted form of MFE described in Carlson and Miller (1998a,<br />
1998b). Observe that MFE is naturally trying to advect the mesh along<br />
<strong>with</strong> the solution flow. Of course, in practice this equation is discretized<br />
using a Galerkin method.<br />
This method is elegant, and when tuned correctly works well (Baines<br />
1994). However, it does have significant disadvantages. One of these is that<br />
the functional derivative of I <strong>with</strong> respect to v can become singular, and<br />
regularization is needed in practice.<br />
4.2. Geometric conservation law (GCL) methods<br />
The geometric conservation law (GCL) methods are based upon a direct differentiation<br />
of the equidistribution equation <strong>with</strong> respect to time, to derive<br />
an equation for the mesh velocity. In its simplest form the method assumes<br />
that the monitor function M is normalized so that the integral of M over
