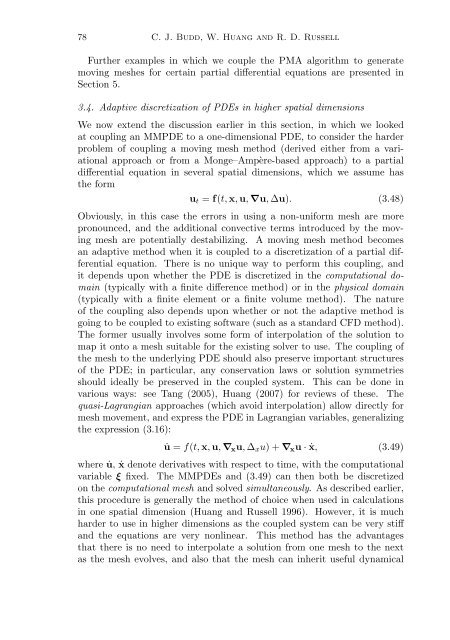

78 C. J. Budd, W. Huang and R. D. Russell<br />
Further examples in which we couple the PMA algorithm to generate<br />
<strong>moving</strong> meshes for certain partial differential equations are presented in<br />
Section 5.<br />
3.4. Adaptive discretization of PDEs in higher spatial dimensions<br />
We now extend the discussion earlier in this section, in which we looked<br />
at coupling an MMPDE to a one-dimensional PDE, to consider the harder<br />
problem of coupling a <strong>moving</strong> mesh method (derived either from a variational<br />
approach or from a Monge–Ampère-based approach) to a partial<br />
differential equation in several spatial dimensions, which we assume has<br />
the form<br />
u t = f(t, x, u, ∇u, ∆u). (3.48)<br />
Obviously, in this case the errors in using a non-uniform mesh are more<br />
pronounced, and the additional convective terms introduced by the <strong>moving</strong><br />
mesh are potentially destabilizing. A <strong>moving</strong> mesh method becomes<br />
an adaptive method when it is coupled to a discretization of a partial differential<br />
equation. There is no unique way to perform this coupling, and<br />
it depends upon whether the PDE is discretized in the computational domain<br />
(typically <strong>with</strong> a finite difference method) or in the physical domain<br />
(typically <strong>with</strong> a finite element or a finite volume method). The nature<br />
of the coupling also depends upon whether or not the adaptive method is<br />
going to be coupled to existing software (such as a standard CFD method).<br />
The former usually involves some form of interpolation of the solution to<br />
map it onto a mesh suitable for the existing solver to use. The coupling of<br />
the mesh to the underlying PDE should also preserve important structures<br />
of the PDE; in particular, any conservation laws or solution symmetries<br />
should ideally be preserved in the coupled system. This can be done in<br />
various ways: see Tang (2005), Huang (2007) for reviews of these. The<br />
quasi-Lagrangian approaches (which avoid interpolation) allow directly for<br />
mesh movement, and express the PDE in Lagrangian variables, generalizing<br />
the expression (3.16):<br />
˙u = f(t, x, u, ∇ x u, ∆ x u)+∇ x u · ẋ, (3.49)<br />
where ˙u, ẋ denote derivatives <strong>with</strong> respect to time, <strong>with</strong> the computational<br />
variable ξ fixed. The MMPDEs and (3.49) can then both be discretized<br />
on the computational mesh and solved simultaneously. As described earlier,<br />
this procedure is generally the method of choice when used in calculations<br />
in one spatial dimension (Huang and Russell 1996). However, it is much<br />
harder to use in higher dimensions as the coupled system can be very stiff<br />
and the equations are very nonlinear. This method has the advantages<br />
that there is no need to interpolate a solution from one mesh to the next<br />
as the mesh evolves, and also that the mesh can inherit useful dynamical
