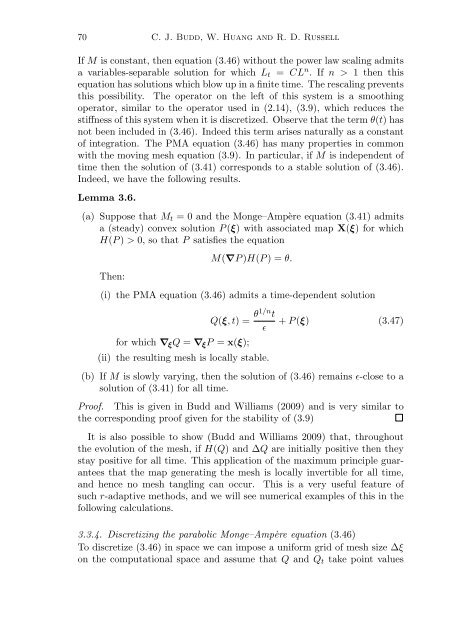

70 C. J. Budd, W. Huang and R. D. Russell<br />
If M is constant, then equation (3.46) <strong>with</strong>out the power law scaling admits<br />
a variables-separable solution for which L t = CL n . If n > 1 then this<br />
equation has solutions which blow up in a finite time. The rescaling prevents<br />
this possibility. The operator on the left of this system is a smoothing<br />
operator, similar to the operator used in (2.14), (3.9), which reduces the<br />
stiffness of this system when it is discretized. Observe that the term θ(t) has<br />
not been included in (3.46). Indeed this term arises naturally as a constant<br />
of integration. The PMA equation (3.46) has many properties in common<br />
<strong>with</strong> the <strong>moving</strong> mesh equation (3.9). In particular, if M is independent of<br />
time then the solution of (3.41) corresponds to a stable solution of (3.46).<br />
Indeed, we have the following results.<br />
Lemma 3.6.<br />
(a) Suppose that M t = 0 and the Monge–Ampère equation (3.41) admits<br />
a (steady) convex solution P (ξ) <strong>with</strong> associated map X(ξ) forwhich<br />
H(P ) > 0, so that P satisfies the equation<br />
Then:<br />
M(∇P )H(P )=θ.<br />
(i) the PMA equation (3.46) admits a time-dependent solution<br />
Q(ξ,t)= θ1/n t<br />
+ P (ξ) (3.47)<br />
ɛ<br />
for which ∇ ξ Q = ∇ ξ P = x(ξ);<br />
(ii) the resulting mesh is locally stable.<br />
(b) If M is slowly varying, then the solution of (3.46) remains ɛ-close to a<br />
solution of (3.41) for all time.<br />
Proof. This is given in Budd and Williams (2009) and is very similar to<br />
the corresponding proof given for the stability of (3.9)<br />
It is also possible to show (Budd and Williams 2009) that, throughout<br />
the evolution of the mesh, if H(Q) and∆Q are initially positive then they<br />
stay positive for all time. This application of the maximum principle guarantees<br />
that the map generating the mesh is locally invertible for all time,<br />
and hence no mesh tangling can occur. This is a very useful feature of<br />
such r-adaptive methods, and we will see numerical examples of this in the<br />
following calculations.<br />
3.3.4. Discretizing the parabolic Monge–Ampère equation (3.46)<br />
To discretize (3.46) in space we can impose a uniform grid of mesh size ∆ξ<br />
on the computational space and assume that Q and Q t take point values
