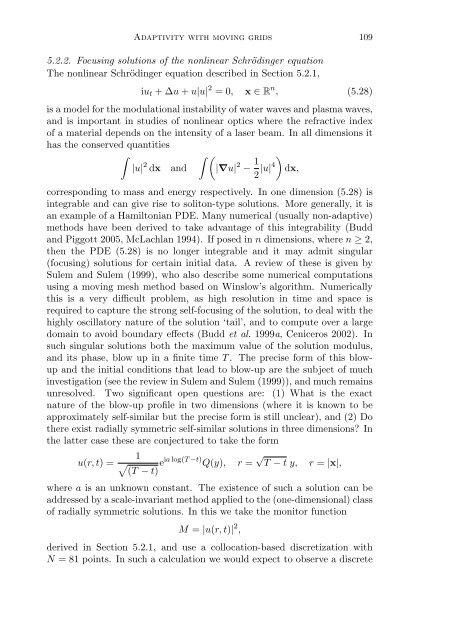

<strong>Adaptivity</strong> <strong>with</strong> <strong>moving</strong> <strong>grids</strong> 109<br />
5.2.2. Focusing solutions of the nonlinear Schrödinger equation<br />
The nonlinear Schrödinger equation described in Section 5.2.1,<br />
iu t +∆u + u|u| 2 =0, x ∈ R n , (5.28)<br />
is a model for the modulational instability of water waves and plasma waves,<br />
and is important in studies of nonlinear optics where the refractive index<br />
of a material depends on the intensity of a laser beam. In all dimensions it<br />
has the conserved quantities<br />
∫<br />
|u| 2 dx and<br />
∫ (|∇u| 2 − 1 2 |u|4 )<br />
dx,<br />
corresponding to mass and energy respectively. In one dimension (5.28) is<br />
integrable and can give rise to soliton-type solutions. More generally, it is<br />
an example of a Hamiltonian PDE. Many numerical (usually non-adaptive)<br />
methods have been derived to take advantage of this integrability (Budd<br />
and Piggott 2005, McLachlan 1994). If posed in n dimensions, where n ≥ 2,<br />
then the PDE (5.28) is no longer integrable and it may admit singular<br />
(focusing) solutions for certain initial data. A review of these is given by<br />
Sulem and Sulem (1999), who also describe some numerical computations<br />
using a <strong>moving</strong> mesh method based on Winslow’s algorithm. Numerically<br />
this is a very difficult problem, as high resolution in time and space is<br />
required to capture the strong self-focusing of the solution, to deal <strong>with</strong> the<br />
highly oscillatory nature of the solution ‘tail’, and to compute over a large<br />
domain to avoid boundary effects (Budd et al. 1999a, Ceniceros 2002). In<br />
such singular solutions both the maximum value of the solution modulus,<br />
and its phase, blow up in a finite time T . The precise form of this blowup<br />
and the initial conditions that lead to blow-up are the subject of much<br />
investigation (see the review in Sulem and Sulem (1999)), and much remains<br />
unresolved. Two significant open questions are: (1) What is the exact<br />
nature of the blow-up profile in two dimensions (where it is known to be<br />
approximately self-similar but the precise form is still unclear), and (2) Do<br />
there exist radially symmetric self-similar solutions in three dimensions? In<br />
the latter case these are conjectured to take the form<br />
u(r, t) =<br />
1<br />
√<br />
(T − t)<br />
e ia log(T −t) Q(y), r = √ T − ty, r= |x|,<br />
where a is an unknown constant. The existence of such a solution can be<br />
addressed by a scale-invariant method applied to the (one-dimensional) class<br />
of radially symmetric solutions. In this we take the monitor function<br />
M = |u(r, t)| 2 ,<br />
derived in Section 5.2.1, and use a collocation-based discretization <strong>with</strong><br />
N = 81 points. In such a calculation we would expect to observe a discrete
