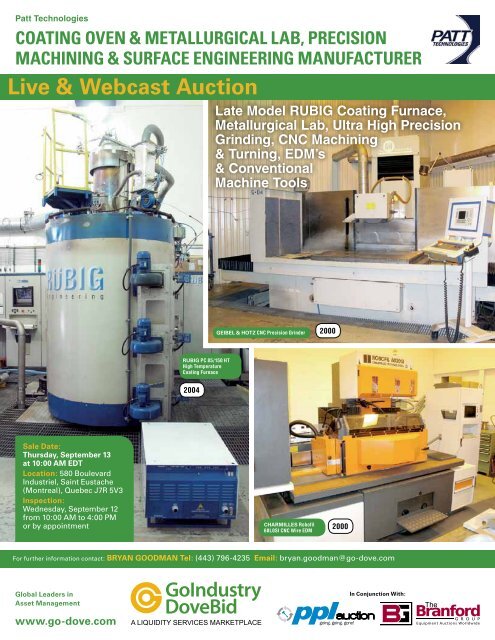

Brochure dell'evento

Patt Technologies
COATING OVEN & METALLURGICAL LAB, PRECISION
MACHINING & SURFACE ENGINEERING MANUFACTURER
Live & Webcast Auction
Late Model RUBIG Coating Furnace,
Metallurgical Lab, Ultra High Precision
Grinding, CNC Machining
& Turning, EDM’s
& Conventional
Machine Tools
GEIBEL & HOTZ CNC Precision Grinder
2000
RUBIG PC 85/150 HT
High Temperature
Coating Furnace
2004
Sale Date:
Thursday, September 13
at 10:00 AM EDT
Location: 580 Boulevard
Industriel, Saint Eustache
(Montreal), Quebec J7R 5V3
Inspection:
Wednesday, September 12
from 10:00 AM to 4:00 PM
or by appointment
CHARMILLES Robofil
60L0SI CNC Wire EDM
2000
For further information contact: BRYAN GOODMAN Tel: (443) 796-4235 Email: bryan.goodman@go-dove.com
Global Leaders in
Asset Management
www.go-dove.com
In Conjunction With:
going. going. gone!
a division of PPL Group LLC
3100 Dundee Road | Suite 915

COATING OVEN & METALLURGICAL LAB, PRECISION MACHINING
& SURFACE ENGINEERING MANUFACTURER
Stainless Steel Construction
ELMA 4-Stage Automatic Ultrasonic Cleaning Line 1999
COATING FURNACE, PARTS CLEANING & METALLURGICAL LAB
2004 RUBIG PC 85/150 HT High Temperature Coating Furnace,
S/N PC623001 PA, w/(3) BUSCH Vacuum Pumps
ZEISS Stereozoom Microscope 1999
1999 ELMA T900/400/900/5+WLT+RWA100 4-Stage Automatic Ultrasonic Cleaning
Line, S/N 09211699, w/Stainless Steel Construction, Dryer Station, Fume Hood
AMTREX SONOREX Compact Ultrasonic Bath
2003 HITACHI S3000N Scanning Electron Microscope, S/N 1558-03 w/OXFORD INCA
ENARGY Computer, Vacuum Pump
1999 ZEISS STEMI SV11 STEREOZOOM Microscope, S/N 455056
ZEISS AXIOVERT 25 CA Microscope
MICRO PHOTONICS NANOVEA SERIES MTR3/200-200/NI Scratch Tester, S/N V1079
2000 FISHER H100VP XY-PROG Hardness Tester, S/N 03948333, w/HUNT WETZLAR
CCD Camera, HUND Microscope, STARRETT Granite Plate
(2) BUEHLER 1600-6400 Hardness Testers, S/N 592-MMTZ-00815, 562-MMTZ-00561,
New as 2003, w/CCD Camera
(2) BUEHLER METASERV 2000 Grinder/Polishers, S/N 569-MGV-1275, 569-MGV-1271
2000 BUEHLER SURFMET I Belt Surfacer, S/N 570-EMO-2039
BUEHLER SIMPLIMET 1000 Mounting Press, S/N 570-NIK-00330
BUEHLER ABRASIMET 2 Lab Saw, S/N 557-MSC-2909
AIR SCIENCE P5 Chemical Safety Filter Hood, S/N P50776
FISHERSCOPE HEU Micro Hardness Control Unit, S/N 0394331
2
Please check final Lot Catalog posted to the sale page at www.go-dove.com

Live & Webcast Auction
MICRO PHOTONICS Nanovea Series Scratch Tester
FISHER Hardness Tester 2000
View of BUEHLER Equipment
HITACHI S3000N Scanning Electron Microscope 2003
WALTER Helitronic Power 400 6-Axis CNC Tool & Cutter Grinder
1996
ULTRA HIGH PRECISION
CNC GRINDING
2000 GEIBEL & HOTZ ES15100 GTSL CNC
Precision Grinder, S/N 101640,
w/SIEMENS SMATIC OPZ7 Control,
59" x 39.37" Electro-Magnetic Chuck,
Work Envelope: X-59", Y-33.5", Z-39.5",
Coolant Filtration System
1999 GEIBEL & HOTZ FS850 GTSL
Precision Grinder, S/N 101588-1299,
w/SIEMENS SMATIC OP27 Control,
31.49" x 19.68" Electro-Magnetic Chuck,
Work Envelope: X-31.5", Y-16.75", Z-19.75",
Coolant Filtration System
GEIBEL & HOTZ GRINDERS OPERATE
WITH A PAPER STRIP COOLANT FILTER
GOOD SELECTION OF SPARE GRINDING
STONES, WHEELS & FLANGES
ALL TO BE OFFERED SEPARATELY
GEIBEL & HOTZ Precision Grinder 1999
Auction Conducted
in U.S. Dollars
Please check final Lot Catalog posted to the sale page at www.go-dove.com
3

COATING OVEN & METALLURGICAL LAB, PRECISION MACHINING
& SURFACE ENGINEERING MANUFACTURER
ULTRA HIGH PRECISION CNC GRINDING, Continued
1996 WALTER
HELITRONIC POWER
400 6-Axis CNC Tool
& Cutter Grinder,
S/N 6003, w/WALTER
HMC 400 Control
1990 WALTER
HELITRONIC 55
7-Axis CNC Tool
& Cutter Grinder,
S/N 5623, w/WALTER
HMC 200 Control
WALTER Helitronic 55 7-Axis CNC Tool & Cutter Grinder 1990
(5) WALTER
HELI-CENTER GC8
7-Axis CNC Tool
& Cutter Grinder,
S/N 272, 269, 242, 241,
215, w/WALTER HMC
200 Control
2005 SUNNEN
CGM-5000 CNC Bore
Sizing/Finishing
Grinder, S/N 2T1-1081
(5) WALTER Heli-Center GC8 7-Axis CNC Tool & Cutter Grinders
EXCELLENT SELECTION OF
GRINDING ATTACHMENTS,
MACHINIST VISES, ROTARY
TABLES, INDEXING TABLES,
TOOL HOLDERS, SINE TABLES,
CARBIDE TOOLING, PERISHABLE
TOOLING, ETC.
SUNNEN CNC Bore Sizing/Finishing Grinder 2005
Items Subject to Prior Sale
OCEAN TECHNOLOGIES CNC EDM Drill 2005
EDM’s
CHARMILLES Robofil 510P CNC Wire EDM 2000
2000 CHARMILLES ROBOFIL 60L0SI CNC Wire
EDM, S/N 193596, w/Maximum Work Piece:
X-27.5", Y-15.75", Z-13.75", Maximum-Axis
Travel: X-24.75", Y-15.75", Maximum Taper
Angle: 30 Degree
2000 CHARMILLES ROBOFIL 510P CNC Wire
EDM, S/N 560035, w/Maximum Work Piece:
X-47.25", Y – 27.5", Z- 15.75", Maximum-Axis
Travel: X – 27.5", Y – 15.75", Maximum Taper
Angle: 30 Degree
SODICK A280 CNC Sinker EDM, S/N A280-
050, w/MARK EX EDW Control
2005 OCEAN TECHNOLOGIES OCT-3525NA
CNC EDM Drill, S/N DRO1180105, w/SW4000
2-Axis DRO, Digital Erosion Parameter
Gauge DRO
4
Please check final Lot Catalog posted to the sale page at www.go-dove.com

Live & Webcast Auction
OKUMA ES-L Turning Center
SMTW M1050A Centerless Grinder
NIIGATA EN50B Horizontal Machining Center
CNC
MACHINE TOOLS
NIIGATA EN50B Horizontal
Machining Center, S/N 15015, w/
FANUC 11M Control, 40 Station
ATC, Twin 19.75" Square Pallets
1999 FRYER VB-50 Vertical
Milling Machine, S/N 50017,
w/AUTOCON DYNAPATH
Control, 63" x 20" Table
STAMA MC-110 Vertical
Machining Center, S/N
B53546E/04, w/FANUC Control
OKUMA ES-L Turning Center,
S/N C0272, w/OSP-U10L
Control, 8 Station Turret,
Tailstock, Chip Conveyor
LNS HYDROBAR Auto Bar Feed
GOCKEL G40E LT Way & Knife Grinder
FRYER VB-50 Vertical Milling Machine 1999
GRINDERS
SMTW M1050A Centerless
Grinder, S/N 0757, w/50mm
Capacity
GOCKEL G40E LT Way & Knife
Grinder, S/N 6043, w/128" x 6.5"
Mag Chuck
JONES & SHIPMAN No. 1051
Cylindrical Grinder, S/N n/a
LANDIS 2RU 14" x 50"
Cylindrical Grinder, S/N 1978
RIBON RUR 1000 12" x 39.37"
Cylindrical Grinder, S/N n/a
(6) MAKINO C-40 Tool & Cutter
Grinders, S/N E54-8246,
E50-7127, E50-7126, E49-6511,
E49-6474, E49-6413, w/Large
Assortment of Grinding
Attachments
KENT KGT-40S Tool & Cutter
Grinder, S/N 80081
CHAO HUEI CH-40S Tool &
Cutter Grinder, S/N 487402
JONES & SHIPMAN No. 1051 Cylindrical Grinder
Auction Conducted in U.S. Dollars
(6) MAKINO C-40 Tool & Cutter Grinders
Please check final Lot Catalog posted to the sale page at www.go-dove.com
5

COATING OVEN & METALLURGICAL LAB, PRECISION MACHINING
& SURFACE ENGINEERING MANUFACTURER
GOODWAY GW-2480 Gap Bed Engine Lathe
SAWS, MILLS & DRILLS
SPEEDFAM No. 96 4-Head Lapping Machine Complete Manufacturers Rebuild – 2010
LAPPING
MACHINE
SPEEDFAM No. 96
4-Head Lapping
Machine, S/N
96BGW466901-
2413, w/30" heads,
40 HP Table Motor,
Note: Complete
Manufacturers
Rebuild 2010
Items Subject
to Prior Sale
1998 PEHAKA SF-8 Auto Mould Makers Vertical
Bandsaw, S/N 38192, w/43" x 45" Power Feed
Table, 30" Throat, Work Envelope; 27.55"W x
18.89"H, Table Tilt; Right/Left 30 deg/100 deg,
Chip Auger
STARTRITE H250M Horizontal Bandsaw,
S/N 102190
LAGUN FCM-1600 Universal Mill, S/N 81, w/16"
x 64" Table, 56–1,400 Vert Head RPM, 28–1,400
Horz. Head RPM, 3-Axis DRO
2001 EUMEGA MDV-3 Vertical Mill, S/N 4633,
w/10" x 50" Power Feed Table, 3 HP Spindle
Motor, 2-Axis DRO
LAGUN FTV-1S Vertical Mill, S/N SE31150, w/10"
x 44" Power Feed Table, 2-Axis DRO
1999 4' TONE FAN TF-1280H Radial Arm Drill,
S/N 9241 44–1,500 RPM, Power Clamp, Box Table
IBARMIA A-45 Geared Head Drill, S/N 445-F
w/140–1,300 RPM, 8" Power Quill Feed
LATHES
GOODWAY GW-2480 Gap Bed Engine Lathe,
S/N 71864, w/37 – 1500 RPM, Quick Change Tool
Post, Taper Attachment, 3" Spindle Bore, Inch &
Metric Threading, 2-Axis DRO
KRACH 16" x 50" Engine Lathe, S/N 573, w/12.5
– 1600 RPM, Quick Change Tool Post, Inch &
Metric Threading
VICTOR No. 1640 Engine Lathe, S/N 563931, w/30
– 1800 RPM
1999
PEHAKA SF-8 Auro Mould Makers Vertical Bandsaw 1998
4' TONE FAN TF-1280H
Radial Arm Drill
LAGUN FCM-1600 Universal Mill
6
Please check final Lot Catalog posted to the sale page at www.go-dove.com

Live & Webcast Auction
BEM F-400P-SS Thermal Typhoon Wash System WENZEL LH65 CMM 2005
(11) X-ACT, DEMAG, TRANSCRANE
Free Standing Jib Cranes
MISCELLANEOUS MACHINERY
& EQUIPMENT
BEM F-400P-SS Thermal Typhoon Wash System, S/N 13585, Stainless Steel
Construction
2011 TORIT DONALDSON DWS4 Fume Filter, S/N 1G2061414,
NEW NEVER USED
SUNNEN MBB-1660R Precision Honing Machine, S/N 82567
CAROLINA CBP-5500 55-Ton Hyd. Shop Press, S/N 5490
BLAST-IT-ALL 700CFM Sandblast Cabinet, w/Trolley Feed Table, 24" Rotary
Table, 50"W x 53"D x 32"H Work Area
TRINCO 36/EP2 Sand Blast Cabinet, S/N 15402-9
ALSO Table Saws, Double End Grinders, Drill Presses, MIG & TIG Welders,
Buffers, Tool Presetters, Etc.
2011
NEW
NEVER
USED
BLAST-IT-ALL 700CFM Sandblast Cabinet
QA DEPARTMENT
TORIT DONALDSON
DWS4 Fume Filter
2005 WENZEL LH65 CMM, S/N 054558, w/57" x 54" Black Granite Table,
RENISHAW PH10M Probe
MITUTOYO BRIGHT 120 CMM, S/N 710002, w/RENISHAW MH8 Probe
CLARK DCP12 Hardness Tester, S/N 78187
PICO MSUAHE 160000 Leak Detector
ALSO Height Gauges, Micrometers, Pin Gauges, Thread Gauges,
Microscopes, Gauge Blocks, Verniers, etc.
FORKLIFT & FACTORY EQUIPMENT
YALE GL040 4000 Lb. LPG Forklift, S/N A437494
(11) X-ACT, DEMAG, TRANSCRANE Free Standing Jib Cranes, Up to 3-Ton
Capacity, Power Trolley
2005 INGERSOLL RAND SSR-UP6-15-125 15 HP Air Compressor,
S/N PX5959UD5306
2005 INGERSOLL RAND UNI-15-150H Combination 15 HP Air Compressor/
Dryer, S/N UE039160524
2005 INGERSOLL RAND TMS0140 Air Dryer, S/N n/a
ALSO KARCHER Pressure Washer, (5) NUSTEEL Stainless Steel Tool
Chests, (4) CRAFTSMAN Tool Chests, Adjustable Pallet Racks, Hardwood
Work Benches, LISTA Cabinets, Hand & Power Tools, Stainless Steel &
Brass Hardware & Fittings, Strapping Caddies, Pallet Trucks, (2) 40 Yard
Sea Containers, Scales, etc.
OFFICE
FURNITURE &
EQUIPMENT
Excellent Selection of New
Executive Type Office Suites
& Boardroom Furniture, File
Cabinets, Lunch Room
Equipment, Laptop
Computers, PC’s, Printers,
Plotters, Etc.
OVER 800 LOTS OFFERED
OF EXCELLENT HIGH
PRECISION MACHINE
TOOLS, SUPPORT
EQUIPMENT, & TOOLING
YALE GL040 4000 Lb. LPG Forklift
2005
Auction Conducted in U.S. Dollars
INGERSOLL RAND 15 HP Air Compressor
Please check final Lot Catalog posted to the sale page at www.go-dove.com
7

Patt Technologies
COATING OVEN & METALLURGICAL LAB, PRECISION
MACHINING & SURFACE ENGINEERING MANUFACTURER
Executive Offices
11425 Cronhill Drive
Owings Mills, Maryland 21117
Tel: (410) 654-7500 • (800) 722-3334
Fax (410) 654-5876
FIRST CLASS MAIL
POSTMASTER: Dated Material.
Please Deliver Promptly.
Presorted
First Class Mail
U.S. Postage
PAID
Eugene, Oregon
Permit No. 17
Live &
Webcast
Auction
Sale Date: Thursday
September 13
at 10:00 AM EDT
Location:
580 Boulevard
Industriel, Saint
Eustache (Montreal),
Quebec J7R 5V3
For further information contact: BRYAN GOODMAN
Tel: (443) 796-4235 Email: bryan.goodman@go-dove.com
Information provided is believed to be accurate, but is not guaranteed.
Inspection: Wednesday, September 12 from 10:00 AM
to 4:00 PM or by appointment
W
N
580 Boulevard Industriel,
Saint Eustache (Montreal),
Quebec J7R 5V3
S
E
Montreal’s Pierre
Trudeau
International Airport
For auction related questions please contact: BRYAN GOODMAN
Tel: (443) 796-4235 Email: bryan.goodman@go-dove.com
Auction will be
conducted in U.S. dollars
Items Subject to Prior Sale
OVERNIGHT
ACCOMMODATIONS
Imperia Hotel Et Suites
570 Rue Dubois
Saint-Eustache, QC J7R 5V3
............... (450) 472-3336
Sheraton Laval Hotel
2440 Autoroute des
Laurentides
Laval, QC H7T 1X5
............... (450) 687-2440
Holiday Inn Laval Montreal
2900 boul de Carrefour
Laval, QC H7T 2K9
............... (450) 682-9000
Hampton Inn & Suites
1900 Trans-Canada Highway
Dorval, QC H9P 2N4
............... (514) 633-8243
Holiday Inn Pointe-Claire,
Montreal Airport
6700 Trans-Canada Highway
Pointe-Claire, QC H9R 1C2
.................(514) 697-7110
going. going. gone!
a division of PPL Group LLC
3100 Dundee Road | Suite 915
Northbrook, IL 60062
www.pplauction.com
Phone: 224-927-5300 | Fax: 224-927-5311
In Conjunction With:
AIRPORT:
Montreal’s Pierre Trudeau
International Airport
Directions:
From Montreal’s Pierre Trudeau
International Airport: Boulevard
Romeo Vachon to Autoroute
520E, then merge onto Chemin
de la Cote de Liesse continuing
onto Avenue Michel Jasmin.
Take the left ramp to Autoroute
40. Merge onto Autoroute 520E.
Take Exit 4 toward Laval/Lachine/
Autoroute 13. Merge onto
Chemin de la Cote de Liesse then
turn right onto Autoroute 13N
toward Laval. Drive 18.4 km,
take Exit 22-O on the left for
Autoroute 640 O toward Saint-
Eustache. Drive 2.2 km and
merge onto Autoroute 640W.
Drive 3.8 km and take Exit 11 for
Quebec 148/Boulevard Arthur-
Sauve. Turn right onto Boulevard
Arthur-Sauve. Turn left onto
Boulevard Industriel and drive
2.2 km to auction site on the left.
REMOVAL: Small, hand carryable items must be removed by Wednesday,
September 19. All other items must be removed by Friday, October 5.
For complete terms and conditions, please visit www.go-dove.com
QS-0013935

Patt Technologies
Presorted
First Class Mail
U.S. Postage
PAID
Eugene, Oregon
Permit No. 17
COATING OVEN & METALLURGICAL LAB, PRECISION
MACHINING & SURFACE ENGINEERING MANUFACTURER
Executive Offices
11425 Cronhill Drive
Owings Mills, Maryland 21117
Tel: (410) 654-7500 • (800) 722-3334
Fax (410) 654-5876
FIRST CLASS MAIL
POSTMASTER: Dated Material.
Please Deliver Promptly.
INT’L. PRIORITY AIRMAIL
U.S. POSTAGE PAID
TWIN CITIES, MN
PERMIT NO. 02365
Live &
Webcast
Auction
Sale Date: Thursday
September 13
at 10:00 AM EDT
Location:
580 Boulevard
Industriel, Saint
Eustache (Montreal),
Quebec J7R 5V3
For further information contact: BRYAN GOODMAN
Tel: (443) 796-4235 Email: bryan.goodman@go-dove.com
Information provided is believed to be accurate, but is not guaranteed.
Inspection: Wednesday, September 12 from 10:00 AM
to 4:00 PM or by appointment
W
N
580 Boulevard Industriel,
Saint Eustache (Montreal),
Quebec J7R 5V3
S
E
Montreal’s Pierre
Trudeau
International Airport
For auction related questions please contact: BRYAN GOODMAN
Tel: (443) 796-4235 Email: bryan.goodman@go-dove.com
Auction will be
conducted in U.S. dollars
Items Subject to Prior Sale
OVERNIGHT
ACCOMMODATIONS
Imperia Hotel Et Suites
570 Rue Dubois
Saint-Eustache, QC J7R 5V3
............... (450) 472-3336
Sheraton Laval Hotel
2440 Autoroute des
Laurentides
Laval, QC H7T 1X5
............... (450) 687-2440
Holiday Inn Laval Montreal
2900 boul de Carrefour
Laval, QC H7T 2K9
............... (450) 682-9000
Hampton Inn & Suites
1900 Trans-Canada Highway
Dorval, QC H9P 2N4
............... (514) 633-8243
Holiday Inn Pointe-Claire,
Montreal Airport
6700 Trans-Canada Highway
Pointe-Claire, QC H9R 1C2
.................(514) 697-7110
going. going. gone!
a division of PPL Group LLC
3100 Dundee Road | Suite 915
Northbrook, IL 60062
www.pplauction.com
Phone: 224-927-5300 | Fax: 224-927-5311
In Conjunction With:
AIRPORT:
Montreal’s Pierre Trudeau
International Airport
Directions:
From Montreal’s Pierre Trudeau
International Airport: Boulevard
Romeo Vachon to Autoroute
520E, then merge onto Chemin
de la Cote de Liesse continuing
onto Avenue Michel Jasmin.
Take the left ramp to Autoroute
40. Merge onto Autoroute 520E.
Take Exit 4 toward Laval/Lachine/
Autoroute 13. Merge onto
Chemin de la Cote de Liesse then
turn right onto Autoroute 13N
toward Laval. Drive 18.4 km,
take Exit 22-O on the left for
Autoroute 640 O toward Saint-
Eustache. Drive 2.2 km and
merge onto Autoroute 640W.
Drive 3.8 km and take Exit 11 for
Quebec 148/Boulevard Arthur-
Sauve. Turn right onto Boulevard
Arthur-Sauve. Turn left onto
Boulevard Industriel and drive
2.2 km to auction site on the left.
REMOVAL: Small, hand carryable items must be removed by Wednesday,
September 19. All other items must be removed by Friday, October 5.
For complete terms and conditions, please visit www.go-dove.com
QS-0013935
