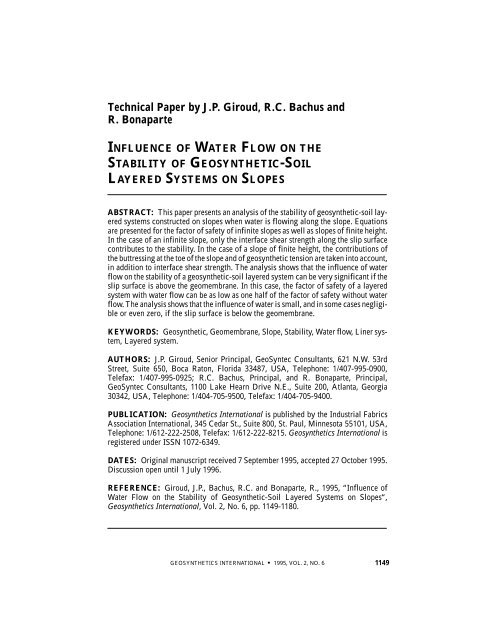

<strong>Technical</strong> <strong>Paper</strong> <strong>by</strong> J.P. <strong>Giroud</strong>, R.C. <strong>Bachus</strong> <strong>and</strong><br />
R. <strong>Bonaparte</strong><br />
INFLUENCE OF WATER FLOW ON THE<br />
STABILITY OF GEOSYNTHETIC-SOIL<br />
LAYERED SYSTEMS ON SLOPES<br />
ABSTRACT: This paper presents an analysis of the stability of geosynthetic-soil layered<br />
systems constructed on slopes when water is flowing along the slope. Equations<br />
are presented for the factor of safety of infinite slopes as well as slopes of finite height.<br />
In the case of an infinite slope, only the interface shear strength along the slip surface<br />
contributes to the stability. In the case of a slope of finite height, the contributions of<br />
the buttressing at the toe of the slope <strong>and</strong> of geosynthetic tension are taken into account,<br />
in addition to interface shear strength. The analysis shows that the influence of water<br />
flow on the stability of a geosynthetic-soil layered system can be very significant if the<br />
slip surface is above the geomembrane. In this case, the factor of safety of a layered<br />
system with water flow can be as low as one half of the factor of safety without water<br />
flow. The analysis shows that the influence of water is small, <strong>and</strong> in some cases negligible<br />
or even zero, if the slip surface is below the geomembrane.<br />
KEYWORDS: Geosynthetic, Geomembrane, Slope, Stability, Water flow, Liner system,<br />
Layered system.<br />
AUTHORS: J.P. <strong>Giroud</strong>, Senior Principal, GeoSyntec Consultants, 621 N.W. 53rd<br />
Street, Suite 650, Boca Raton, Florida 33487, USA, Telephone: 1/407-995-0900,<br />
Telefax: 1/407-995-0925; R.C. <strong>Bachus</strong>, Principal, <strong>and</strong> R. <strong>Bonaparte</strong>, Principal,<br />
GeoSyntec Consultants, 1100 Lake Hearn Drive N.E., Suite 200, Atlanta, Georgia<br />
30342, USA, Telephone: 1/404-705-9500, Telefax: 1/404-705-9400.<br />
PUBLICATION: Geosynthetics International is published <strong>by</strong> the Industrial Fabrics<br />
Association International, 345 Cedar St., Suite 800, St. Paul, Minnesota 55101, USA,<br />
Telephone: 1/612-222-2508, Telefax: 1/612-222-8215. Geosynthetics International is<br />
registered under ISSN 1072-6349.<br />
DATES: Original manuscript received 7 September 1995, accepted 27 October 1995.<br />
Discussion open until 1 July 1996.<br />
REFERENCE: <strong>Giroud</strong>, J.P., <strong>Bachus</strong>, R.C. <strong>and</strong> <strong>Bonaparte</strong>, R., 1995, “Influence of<br />
Water Flow on the Stability of Geosynthetic-Soil Layered Systems on Slopes“,<br />
Geosynthetics International, Vol. 2, No. 6, pp. 1149-1180.<br />
GEOSYNTHETICS INTERNATIONAL S 1995, VOL. 2, NO. 6<br />
1149
GIROUD, BACHUS AND BONAPARTE D Influence of Water on Layered Systems on Slopes<br />
1 INTRODUCTION<br />
A geosynthetic-soil layered system constructed on a slope typically includes one or<br />
more fluid barriers (e.g. geomembranes, geosynthetic clay liners, <strong>and</strong> compacted clay<br />
layers), often referred to as liners, <strong>and</strong> one or more drainage layers (e.g. geosynthetic<br />
materials such as geonets <strong>and</strong> geocomposite drains, <strong>and</strong> granular layers). As a result of<br />
the layered structure, water may flow downslope parallel to the slope direction, there<strong>by</strong><br />
exerting drag forces on the layers within which the flow takes place. These drag forces,<br />
being oriented downslope, are detrimental to the stability of the geosynthetic-soil layered<br />
system.<br />
The purpose of this paper is to evaluate the influence of water flow on the stability<br />
of geosynthetic-soil layered systems on slopes. It will be seen that the action of water<br />
flow is complex <strong>and</strong> must be carefully analyzed. For example, in some cases the factor<br />
of safety of a layered system when water is flowing is approximately one half of the<br />
factor of safety when water is not flowing, whereas in other cases water flow along a<br />
slope has no influence on the factor of safety.<br />
2 ANALYSIS OF THE EFFECT OF WATER FLOW<br />
2.1 Overview of Water Flow in a Drainage Layer<br />
When water flows in a drainage layer placed on a low-permeability material (i.e. a<br />
liner) located on a slope of finite height <strong>and</strong> subjected to a supply of water, the phreatic<br />
surface generally is not parallel to the slope (Figure 1). In other words, the thickness<br />
of the portion of the drainage layer where water flows (hereinafter referred to as the flow<br />
Figure 1.<br />
Water flow in a drainage layer.<br />
1150 GEOSYNTHETICS INTERNATIONAL S 1995, VOL. 2, NO. 6
GIROUD, BACHUS AND BONAPARTE D Influence of Water on Layered Systems on Slopes<br />
thickness) is generally not uniform. The determination of the phreatic surface in a drainage<br />
layer is beyond the scope of this paper. As shown <strong>by</strong> <strong>Giroud</strong> <strong>and</strong> Houlihan (1995),<br />
an average value of the flow thickness, t wavg , can be calculated as a function of the water<br />
supply rate, the slope <strong>and</strong> length of the drainage layer, <strong>and</strong> the hydraulic conductivity<br />
of the drainage layer material. In this paper, a uniform flow thickness, t w , is considered<br />
<strong>and</strong> it is reasonable to assume that t w = t wavg when using the equations presented herein.<br />
The presence of a liner (i.e. a low-permeability material) below the drainage layer<br />
is essential in the study presented herein. The liner separates the medium above the liner,<br />
where water flows, from the medium below the liner, where it is assumed that there<br />
is no flow. Since geomembranes are now used extensively in liner systems <strong>and</strong> they are<br />
generally placed immediately below a drainage layer, it will be assumed that there is<br />
a geomembrane below the drainage layer.<br />
As indicated in Section 1, drainage layers can be constructed with either granular or<br />
geosynthetic materials. Geosynthetic materials used in drainage layers are typically<br />
only a few millimeters thick. For properly designed drainage layers, the thickness of<br />
the flow is less than the thickness of the drainage layer. Therefore, in the case of properly<br />
designed geosynthetic drainage layers, the flow thickness is very small. It will be<br />
shown hereinafter that the effect of water flow on slope stability is proportional to flow<br />
thickness. Accordingly, water flow has virtually no effect on the stability of layered systems<br />
incorporating properly designed geosynthetic drainage layers. Therefore, this paper<br />
will focus on layered systems incorporating granular drainage layers.<br />
Notwithst<strong>and</strong>ing the foregoing comments, the equations presented herein are applicable<br />
to geosynthetic drainage layers provided that: 1) the considered physical properties<br />
of the granular drainage material (such as porosity <strong>and</strong> the various densities) are<br />
replaced <strong>by</strong> the corresponding properties of the geosynthetic material; <strong>and</strong> 2) it can be<br />
assumed that the structure of the geosynthetic is such that, even under stress, the contact<br />
areas between solid constituents of the geosynthetics or between these solid constituents<br />
<strong>and</strong> adjacent materials are small. The latter requirement is necessary to ensure the<br />
applicability to the geosynthetic of the effective stress principle which describes the<br />
way stresses are distributed between the solid phase <strong>and</strong> the liquid phase of a saturated<br />
soil.<br />
The equations presented in this paper can easily be extended to the case where the<br />
considered drainage layer, granular or geosynthetic, does not have sufficient flow capacity<br />
<strong>and</strong>, as a result, a fraction of the flow occurs in a layer of soil above the drainage<br />
layer. In this case, the effect of water flow on slope stability is evaluated considering<br />
the flow in the entire depth of the drainage layer, plus the flow up to a certain depth in<br />
the soil layer located above the drainage layer.<br />
Although the liquid considered in this paper is water, the equations presented are valid<br />
without any modification for aqueous solutions, such as leachates. The equations can<br />
also be used for any other liquid provided that the density (or the unit weight) of water<br />
is replaced <strong>by</strong> the density (or the unit weight) of that liquid.<br />
The equations presented in this paper are not applicable if water does not flow parallel<br />
to the slope. This situation may occur in some cases, especially under certain transient<br />
flow conditions. However, in most cases, under steady-state as well as transient conditions,<br />
water flows parallel to the slope in layered systems.<br />
GEOSYNTHETICS INTERNATIONAL S 1995, VOL. 2, NO. 6<br />
1151
GIROUD, BACHUS AND BONAPARTE D Influence of Water on Layered Systems on Slopes<br />
2.2 Effects of Water on Soil<br />
2.2.1 Overview<br />
The term soil, in this paper, encompasses all materials made of mineral particles. The<br />
term encompasses, in particular, granular materials used in drainage layers such as<br />
s<strong>and</strong>, gravel, <strong>and</strong> aggregate. The term also encompasses materials made of fine particles<br />
such as silts <strong>and</strong> clays that may be placed above a geomembrane or a granular<br />
drainage layer as part of a layered system.<br />
It is known from soil mechanics, <strong>and</strong> the theory of flow in porous media, that water<br />
has two major mechanical effects on soils. Water (whether it flows or not) tends to uplift<br />
soil particles due to a buoyancy effect <strong>and</strong> flowing water tends to drag particles in the<br />
direction of flow. (The same two effects explain why a barge both floats on a river <strong>and</strong><br />
moves with the current.) In general, soil particles subjected to these two effects do not<br />
move because of their high density, <strong>and</strong> because they are interlocked within a stable soil<br />
structure. However, these two effects, alone or combined with others, can cause soil instability<br />
in some cases.<br />
The effects of buoyancy <strong>and</strong> drag are discussed below. Other potential effects of water<br />
are not considered in this paper. These effects include, for example, changes in soil<br />
properties induced <strong>by</strong> water <strong>and</strong> dissolution of some soil components <strong>by</strong> water.<br />
2.2.2 Buoyancy Force<br />
Water exerts a pressure on the surface of a submerged soil particle. The magnitude<br />
of this pressure varies linearly with elevation, increasing from the uppermost to the lowermost<br />
point of the considered particle. This pressure results in an upward vertical force<br />
applied to the particle. A classical demonstration shows that this force (known as Archimedes<br />
thrust) is equal to the weight of water that would fill the volume occupied <strong>by</strong> the<br />
particle.<br />
A soil is composed of particles <strong>and</strong> voids. The proportion of particles relative to the<br />
combined volume of particles <strong>and</strong> voids is 1-n (where n is the soil porosity) <strong>and</strong>, since<br />
the Archimedes thrust is applied only to particles, the soil buoyant density, ρ b ,is:<br />
ρ b = (1 − n) (ρ s − ρ w )<br />
(1)<br />
where: n = soil porosity; ρ s = density of soil particles; <strong>and</strong> ρ w = density of water.<br />
Simple geometric considerations give:<br />
ρ d = (1 − n) ρ s (2)<br />
(3)<br />
ρ sat = (1 − n) ρ s + n ρ w<br />
where: ρ d = “dry density” of soil (i.e. the density of soil calculated considering only the<br />
particles, which is equal to the density of dry soil if the soil volume does not change<br />
as the soil dries); <strong>and</strong> ρ sat = “saturated density” of soil (i.e. the density of soil calculated<br />
1152 GEOSYNTHETICS INTERNATIONAL S 1995, VOL. 2, NO. 6
GIROUD, BACHUS AND BONAPARTE D Influence of Water on Layered Systems on Slopes<br />
assuming that all voids are filled with water, which is equal to the density of saturated<br />
soil if the soil volume does not change as the soil is being saturated with water).<br />
Combining Equations 1 <strong>and</strong> 3 gives:<br />
ρ b = ρ sat − ρ w<br />
(4)<br />
Finally, the density of a soil which contains a certain amount of water retained <strong>by</strong> capillarity<br />
is:<br />
ρ t = ρ d (1 + w)<br />
(5)<br />
where: ρ t = “total density” of soil (i.e. the density of soil that contains a certain amount<br />
of water); <strong>and</strong> w = water content defined as the mass of water in a given volume of soil<br />
divided <strong>by</strong> the mass of dry soil (i.e. mass of particles) in the same volume of soil.<br />
In the above equations, the densities ρ t , ρ s , ρ sat , ρ b , ρ d <strong>and</strong> ρ w can be replaced <strong>by</strong> unit<br />
weights γ t , γ s , γ sat , γ b , γ d <strong>and</strong> γ w , respectively. The general relationship between unit<br />
weight <strong>and</strong> density is:<br />
γ = ρ g<br />
(6)<br />
where g is the acceleration due to gravity (g = 9.81 m/s 2 ).<br />
In examples presented hereinafter, a typical soil will be used; this soil is defined <strong>by</strong><br />
a porosity n = 0.35 <strong>and</strong> a density of particles ρ s = 2700 kg/m 3 . Based on the above values<br />
of n <strong>and</strong> ρ s , <strong>and</strong> considering a water content of 8%, the typical soil used in the examples<br />
has the characteristics presented in Table 1, which are consistent with Equations 1 to<br />
6.<br />
Table 1.<br />
Typical soil used for examples <strong>and</strong> comparisons.<br />
Densities<br />
Unit weights<br />
ρ s = 2700 kg/m 3<br />
γ s = 26.49 kN/m 3<br />
ρ sat = 2105 kg/m 3<br />
γ sat = 20.65 kN/m 3<br />
ρ b = 1105 kg/m 3 = 0.525 ρ sat<br />
γ b = 10.84 kN/m 3 =0.525γ sat<br />
ρ d = 1755 kg/m 3<br />
γ d = 17.22 kN/m 3<br />
for w =8%:<br />
for w =8%:<br />
ρ t = 1895 kg/m 3 = 0.900 ρ sat γ t = 18.59 kN/m 3 = 0.900 γ sat<br />
Note: The soil porosity is n = 0.35. The densities <strong>and</strong> unit weights were calculated using Equations 1 to 6.<br />
GEOSYNTHETICS INTERNATIONAL S 1995, VOL. 2, NO. 6<br />
1153
GIROUD, BACHUS AND BONAPARTE D Influence of Water on Layered Systems on Slopes<br />
2.2.3 Drag Force<br />
Flowing water exerts drag forces on soil particles. A classical demonstration of the<br />
theory of flow in porous media shows that the resultant of drag forces on soil particles<br />
is in the direction of the flow <strong>and</strong> can be expressed as a force per unit volume of soil<br />
as follows:<br />
f w = γ w i<br />
(7)<br />
where: f w = drag force per unit volume of soil; γ w = unit weight of water; <strong>and</strong> i = hydraulic<br />
gradient that characterizes the flow at the point where the drag force is calculated.<br />
It is noteworthy that the drag force per unit volume is independent of the soil hydraulic<br />
conductivity, k.Ifk increases, the drag force tends to increase because flow velocity<br />
increases; at the same time, however, the drag force tends to decrease because the medium,<br />
being more permeable, offers less resistance to flow. The two mechanisms balance<br />
each other exactly.<br />
From Equation 7, the drag force, F w , applied to a volume, V w , of soil where water<br />
is flowing is:<br />
F w = f w V w = γ w iV w<br />
(8)<br />
Although the drag force per unit volume, f w , does not depend on the soil hydraulic<br />
conductivity, k, of the drainage layer material, the drag force, F w , generally depends<br />
on k because the volume of soil occupied <strong>by</strong> water flow, V w , generally depends on k<br />
(e.g. in Figure 1 the phreatic surface rises if the hydraulic conductivity, k, of the drainage<br />
layer material decreases).<br />
2.3 Stresses in Materials Located on Slopes<br />
2.3.1 Overview<br />
Having presented a discussion on the effects of water on soil, the next logical step is<br />
to discuss the effect of water on stresses in materials located on slopes. Three cases are<br />
considered: the case where water flows over the entire thickness of the soil layer (“full<br />
flow”); the case where there is no water flow (“no flow”) either because the soil is dry<br />
or it contains only water retained <strong>by</strong> capillarity; <strong>and</strong> the case where water flows in a<br />
fraction of the thickness of the soil layer (“partial flow”). These three cases are analyzed<br />
below, starting with the full flow case which provides an opportunity to present as simply<br />
as possible the concepts involved in the analysis. The simple no flow case will then<br />
be presented <strong>and</strong> the more complex partial flow case will be derived from the two other<br />
cases. Finally, a comparison between the three cases will lead to conclusions on the effect<br />
of water flow on stresses.<br />
It is assumed that flow occurs only in areas where the soil is saturated. In areas where<br />
the soil is not saturated it is assumed that water is retained <strong>by</strong> capillarity. Herein, capillary<br />
suction is neglected <strong>and</strong> the pore water pressure is assumed to be zero when the soil<br />
1154 GEOSYNTHETICS INTERNATIONAL S 1995, VOL. 2, NO. 6
GIROUD, BACHUS AND BONAPARTE D Influence of Water on Layered Systems on Slopes<br />
is not saturated. It is also assumed that the soil below the geomembrane is never saturated.<br />
Therefore, it is assumed that the pore water pressure is zero <strong>and</strong> that there is no<br />
flow below the geomembrane.<br />
In subsequent analyses, conditions above <strong>and</strong> below the geomembrane will be considered.<br />
It is important to note that, in the discussions, the phrase “above the geomembrane”<br />
refers to a potential slip surface located either along the upper face of the geomembrane<br />
or at any location above the geomembrane. Similarly, the phrase “below the<br />
geomembrane” refers to a potential slip surface located either along the lower face of<br />
the geomembrane or at any location below the geomembrane. However, all equations<br />
are written for the case where the slip surface is at, or very close to, the geomembrane<br />
(upper or lower face). If the slip surface is not along the geomembrane, the term t in<br />
the equations (which represents the thickness of soil above the geomembrane) should<br />
be replaced <strong>by</strong> a term that represents the thickness of soil above the slip surface.<br />
2.3.2 Case of Full Water Flow<br />
Evaluation of Applied Forces. A layer of saturated soil resting on a geomembrane on<br />
a slope is considered (Figure 2). It is assumed that there is a sufficient supply of water<br />
to ensure steady-state flow of water in the entire soil thickness. The thickness of the soil<br />
layer is t <strong>and</strong> a vertical slice of soil, of width b in the direction of the slope, is considered.<br />
All forces considered in the analyses presented below are, in fact, forces per unit length,<br />
the unit length being perpendicular to the plane of the considered figure or cross section.<br />
However, for the sake of simplicity, the phrase “per unit length” will not be repeated<br />
after the words “force” or “weight”.<br />
Figure 2.<br />
Water flowing over the entire thickness, t, of a soil layer on a slope.<br />
GEOSYNTHETICS INTERNATIONAL S 1995, VOL. 2, NO. 6<br />
1155
GIROUD, BACHUS AND BONAPARTE D Influence of Water on Layered Systems on Slopes<br />
If the considered slice is relatively far from the toe or the top of the slope, the forces<br />
applied <strong>by</strong> the soil on the right side <strong>and</strong> on the left side of the vertical slice are balanced.<br />
According to the discussion on the effects of water on soil in Section 2.2, the two forces<br />
applied to the soil particles comprised in the considered slice are the buoyant weight,<br />
W b , <strong>and</strong> the drag force, F w . Since the volume (per unit length) of the slice is bt, the<br />
buoyant weight is:<br />
W b = γ b bt<br />
(9)<br />
<strong>and</strong> the drag force is, according to Equation 8:<br />
F w = γ w bti<br />
(10)<br />
The hydraulic gradient for flow with a phreatic surface parallel to the slope is:<br />
i = sin β<br />
(11)<br />
Combining Equations 10 <strong>and</strong> 11 gives:<br />
F w = γ w btsin β<br />
(12)<br />
Stresses on the Upper Face of the Geomembrane. Since F w is parallel to the geomembrane,<br />
the effective normal stress, σ ′ n , on the geomembrane (i.e. the stress applied <strong>by</strong><br />
the soil particles on the geomembrane) results only from the buoyant weight, W b ,<strong>and</strong><br />
it is obtained <strong>by</strong> projecting W b (given <strong>by</strong> Equation 9) on the normal to the geomembrane<br />
<strong>and</strong> dividing <strong>by</strong> b:<br />
W b (cos β)∕b = σ ′ n = γ b t cos β<br />
(13)<br />
According to the effective stress principle, which is applicable to materials made of<br />
low-deformability particles with small contact areas, such as soils, the total normal<br />
stress applied on the geomembrane is the normal stress applied <strong>by</strong> the particles (i.e. the<br />
effective normal stress) plus the pressure applied <strong>by</strong> water (i.e. the pore water pressure):<br />
σ n = σ ′ n + u<br />
(14)<br />
where: σ n = total normal stress; σ ′ n = effective normal stress; <strong>and</strong> u = pore water pressure.<br />
The pore water pressure on the geomembrane is derived as shown in Figure 3 <strong>by</strong> considering<br />
an equipotential line MN, which is perpendicular to the flow lines according<br />
to the theory of flow in porous media. By definition of the hydraulic potential:<br />
1156 GEOSYNTHETICS INTERNATIONAL S 1995, VOL. 2, NO. 6
GIROUD, BACHUS AND BONAPARTE D Influence of Water on Layered Systems on Slopes<br />
Figure 3.<br />
Use of equipotential surfaces to determine the pressure in a flowing liquid.<br />
u = u M = u N + ρ w g (z N − z M )<br />
(15)<br />
where: u M = pore water pressure at M; u N = pore water pressure at N; z M = elevation of<br />
M; <strong>and</strong> z N = elevation of N.<br />
The pore water pressure is zero at the phreatic surface if the atmospheric pressure is<br />
used as the zero reference. Therefore, u N = 0. Also, from simple geometric considerations<br />
in Figure 3:<br />
z N − z M = z Q − z M = t cos β<br />
(16)<br />
where z Q is the elevation of Q (which is equal to z N ).<br />
From the above considerations <strong>and</strong> Equation 6, the pore water pressure on the geomembrane<br />
is:<br />
u = ρ w gt cos β = γ w t cos β<br />
(17)<br />
The total normal stress on the geomembrane can then be calculated <strong>by</strong> combining<br />
Equations 13, 14 <strong>and</strong> 17 as follows:<br />
σ n = (γ b + γ w ) t cos β<br />
(18)<br />
GEOSYNTHETICS INTERNATIONAL S 1995, VOL. 2, NO. 6<br />
1157
GIROUD, BACHUS AND BONAPARTE D Influence of Water on Layered Systems on Slopes<br />
Combining Equations 4, 6 <strong>and</strong> 18 gives:<br />
σ n = γ sat t cos β<br />
(19)<br />
Equation 19 could have been obtained directly, as Equation 13 was obtained, but with<br />
the saturated weight, W sat , instead of the buoyant weight:<br />
W sat (cos β)∕b = σ n = γ sat t cos β<br />
(20)<br />
The shear force applied on the geomembrane <strong>by</strong> the slice shown in Figure 2 is obtained<br />
as follows <strong>by</strong> adding the projection on the geomembrane of the buoyant weight<br />
of the slice <strong>and</strong> the drag force, which is parallel to the geomembrane:<br />
S = W b sin β + F w<br />
(21)<br />
Combining Equations 9, 12 <strong>and</strong> 21, <strong>and</strong> dividing <strong>by</strong> b, give the shear stress as follows:<br />
S∕b = τ = γ b t sin β + γ w t sin β<br />
(22)<br />
Combining Equations 4, 6 <strong>and</strong> 22 gives:<br />
τ = γ sat t sin β<br />
(23)<br />
Stresses on the Lower Face of the Geomembrane. As assumed in Section 2.3.1, the<br />
pore water pressure, u, is zero below the geomembrane. Therefore, according to Equation<br />
14, σ n = σ ′ n below the geomembrane. The total normal stress, σ n , on the lower face<br />
of the geomembrane is equal to the total normal stress, σ n , on the upper face of the geomembrane,<br />
since they both result from the weight of soil <strong>and</strong> water located above the<br />
geomembrane, as shown in Equation 20 (the weight of the geomembrane itself being<br />
neglected). Consequently, the stresses on the lower face of the geomembrane, when<br />
there is “full flow” above the geomembrane, are:<br />
σ n = σ ′ n = γ sat t cos β<br />
(24)<br />
τ = γ sat t sin β (25)<br />
Comparing Equations 19, 23, 24 <strong>and</strong> 25 shows that the total normal stresses <strong>and</strong> the<br />
shear stresses are the same above <strong>and</strong> below the geomembrane, whereas the effective<br />
normal stresses on either side of the geomembrane are different. However, it should be<br />
noted that the shear stresses are the same above <strong>and</strong> below the geomembrane only if<br />
the continuum is not disrupted, i.e. if there is no slip surface above the geomembrane<br />
1158 GEOSYNTHETICS INTERNATIONAL S 1995, VOL. 2, NO. 6
GIROUD, BACHUS AND BONAPARTE D Influence of Water on Layered Systems on Slopes<br />
<strong>and</strong> if the geomembrane tension is not mobilized. If there is a slip surface above the<br />
geomembrane or if the geomembrane tension is mobilized, only a fraction of the shear<br />
stress is transmitted through the slip surface.<br />
2.3.3 Case of No Water Flow<br />
If there is no flow, there is no drag force, F w , <strong>and</strong> the pore water pressure, u, is zero<br />
above the geomembrane. Also, as indicated in Section 2.3.1, the pore water pressure<br />
is zero below the geomembrane. Therefore, according to Equation 14, σ n = σ ′ n . In this<br />
case the soil above the geomembrane is either dry or, more generally, retains some water<br />
<strong>by</strong> capillarity. Its unit weight is then γ t (defined <strong>by</strong> Equations 5 <strong>and</strong> 6) <strong>and</strong> the stresses<br />
on the geomembrane are:<br />
σ n = σ ′ n = γ t t cos β<br />
τ = γ t t sin β<br />
(26)<br />
(27)<br />
In this case, since there is no water above <strong>and</strong> below the geomembrane, the conditions<br />
are the same above <strong>and</strong> below the geomembrane <strong>and</strong> Equations 26 <strong>and</strong> 27 express the<br />
stresses on the lower face as well as on the upper face of the geomembrane (assuming<br />
that there is no slip surface above the geomembrane).<br />
2.3.4 Case of Partial Water Flow<br />
The case where there is partial flow is shown in Figure 4. In this case, the thickness<br />
of water flow is t w , which is less than the thickness, t, of the soil layer. The equations<br />
Figure 4.<br />
t.<br />
Water flowing in a portion of uniform thickness, t w , in a soil layer of thickness<br />
GEOSYNTHETICS INTERNATIONAL S 1995, VOL. 2, NO. 6<br />
1159
GIROUD, BACHUS AND BONAPARTE D Influence of Water on Layered Systems on Slopes<br />
for stresses are then obtained <strong>by</strong> combining the equations for the case where there is<br />
full flow over the thickness t w , <strong>and</strong> the case where there is no flow over the thickness<br />
t - t w . The equations thus obtained are presented below.<br />
Stresses on the Upper Face of the Geomembrane. The stresses on the upper face of<br />
the geomembrane for the case of partial flow (Figure 4) are as follows:<br />
S Pore water pressure on the upper face of the geomembrane:<br />
u = γ w t w cos β<br />
(28)<br />
S Effective normal stress on the upper face of the geomembrane:<br />
σ ′ n = γt t − t w<br />
+ γ b t w<br />
cos β<br />
(29)<br />
S Total normal stress on the upper face of the geomembrane:<br />
σ n = γt t − t w<br />
+ γ sat t w<br />
cos β<br />
(30)<br />
S Shear stress on the upper face of the geomembrane:<br />
τ = γt t − t w<br />
+ γ sat t w<br />
sin β<br />
(31)<br />
Stresses on the Lower Face of the Geomembrane. The stresses on the lower face of<br />
the geomembrane for the case of partial flow (Figure 4) are as follows:<br />
S Pore water pressure on the lower face of the geomembrane:<br />
u = 0<br />
(32)<br />
S Effective <strong>and</strong> total normal stress on the lower face of the geomembrane:<br />
σ ′ n = σ n = γ t (t − t w ) + γ sat t w<br />
cos β<br />
(33)<br />
S Shear stress on the lower face of the geomembrane:<br />
τ = γ t (t − t w ) + γ sat t w<br />
sin β<br />
(34)<br />
1160 GEOSYNTHETICS INTERNATIONAL S 1995, VOL. 2, NO. 6
GIROUD, BACHUS AND BONAPARTE D Influence of Water on Layered Systems on Slopes<br />
The eight equations given above are applicable to all three cases: full flow, partial<br />
flow, <strong>and</strong> no flow. These equations give the corresponding equations for the case of full<br />
flow, with t w = t, <strong>and</strong> for the case of no flow, with t w =0.<br />
2.3.5 Effects of Water Flow on Stresses<br />
The equations for the three cases studied above are summarized in Tables 2 <strong>and</strong> 3.<br />
The following comments can be made regarding the stresses on the lower face of the<br />
geomembrane:<br />
S The pore water pressure is zero under the geomembrane, as discussed in Section<br />
2.3.1. Therefore, under the geomembrane, the effective normal stress is identical to<br />
the total normal stress.<br />
S The total normal stress is the same on the lower face <strong>and</strong> on the upper face of the geomembrane.<br />
S The shear stress is the same on the lower face <strong>and</strong> on the upper face of the geomembrane<br />
if there is no slip surface above the geomembrane.<br />
The effects of water flow on the stresses at the geomembrane level can be evaluated<br />
<strong>by</strong> comparing the equations given in Tables 2 <strong>and</strong> 3 for the case with full flow <strong>and</strong> the<br />
case where there is no flow. These effects can be summarized as follows:<br />
S The shear stress, τ, increases from γ t t sinβ to γ sat t sinβ. For the typical soil presented<br />
in Table 1 the increase is 11%.<br />
Table 2.<br />
Stresses on the upper face of the geomembrane.<br />
Stress No flow Full flow Partial flow<br />
Pore water pressure, u<br />
0<br />
γ w t cosβ<br />
γ w t w cosβ<br />
Effective normal stress,<br />
σ ′ n<br />
γ t t cosβ<br />
γ b t cosβ<br />
[γ t (t - t w )+γ b t w ]cosβ<br />
Total normal stress, σ n<br />
γ t t cosβ<br />
γ sat t cosβ<br />
[γ t (t - t w )+γ sat t w ]cosβ<br />
Shear stress, τ<br />
γ t t sinβ<br />
γ sat t sinβ<br />
[γ t (t - t w )+γ sat t w ]sinβ<br />
Table 3.<br />
Stresses on the lower face of the geomembrane.<br />
Stress No flow Full flow Partial flow<br />
Pore water pressure, u<br />
0<br />
0<br />
0<br />
Effective normal stress,<br />
σ ′ n<br />
γ t t cosβ<br />
γ sat t cosβ<br />
[γ t (t - t w )+γ sat t w ]cosβ<br />
Total normal stress, σ n<br />
γ t t cosβ<br />
γ sat t cosβ<br />
[γ t (t - t w )+γ sat t w ]cosβ<br />
Shear stress, τ<br />
γ t t sinβ<br />
γ sat t sinβ<br />
[γ t (t - t w )+γ sat t w ]sinβ<br />
GEOSYNTHETICS INTERNATIONAL S 1995, VOL. 2, NO. 6<br />
1161
GIROUD, BACHUS AND BONAPARTE D Influence of Water on Layered Systems on Slopes<br />
S The total normal stress, σ n , increases from γ t t cosβ to γ sat t cosβ. The increase is also<br />
11% for the typical soil presented in Table 1.<br />
S The effective normal stress, σ ′ n , on the lower face of the geomembrane increases<br />
from γ t t cosβ to γ sat t cosβ. The increase is also 11% for the typical soil presented in<br />
Table 1.<br />
S The effective normal stress, σ ′ n , on the upper face of the geomembrane decreases<br />
from γ t t cosβ to γ b t cosβ. For the typical soil presented in Table 1 the decrease is<br />
42%.<br />
It is important to note that the main effect of water flowing along the slope is not the<br />
increase in shear stress but the decrease in effective normal stress above the geomembrane,<br />
which causes a significant decrease in shear strength above the geomembrane,<br />
hence a significant decrease in stability above the geomembrane, as discussed below.<br />
Also, it is interesting to note that the percentage changes indicated above are independent<br />
of the slope angle.<br />
3 EFFECT OF WATER FLOW ON THE STABILITY OF A<br />
GEOSYNTHETIC-SOIL LAYERED SYSTEM ON AN INFINITE SLOPE<br />
3.1 Introduction to Infinite Slopes<br />
3.1.1 Definition <strong>and</strong> Assumption<br />
An infinite slope is a slope which has a uniform inclination over an infinite length <strong>and</strong>,<br />
therefore, an infinite height. Calculations are simpler for the case of an infinite slope<br />
than for the case of a slope of finite height. When there is no water flow, an approximate<br />
evaluation of the stability of a layered system on a slope of finite height is often performed<br />
<strong>by</strong> calculating the factor of safety of the same layered system on an infinite slope<br />
with the same inclination as the slope of finite height. The factor of safety thus obtained<br />
is smaller than the factor of safety which would be obtained using the actual slope geometry,<br />
which is conservative.<br />
If an infinite slope were subjected to a water supply distributed over its entire length<br />
(like the slope of finite height in Figure 1), the rate of water flow along the slope would<br />
be infinite. This would not correspond to any real situation. To use an infinite slope for<br />
an approximate evaluation of the stability of a layered system where water is flowing,<br />
it is necessary to assume that the flow thickness is uniform in the layered system<br />
installed on the infinite slope (which implies the presence of a constant source of water<br />
at the “top” of the infinite slope). In other words, it must be assumed that the flow rate<br />
is the same at any elevation along the slope, which is not the case with a slope of finite<br />
height exposed to a uniform supply of water (Figure 1).<br />
Even though the assumption described above is not consistent with the flow rate along<br />
a slope of finite height, it is an appropriate assumption because it provides a good<br />
approximation of the flow thickness, which is the parameter that influences stability as<br />
discussed hereafter. To ensure that the approximate evaluation of stability provided <strong>by</strong><br />
the use of an infinite slope is as accurate as possible, the flow thickness, t w , in the infinite<br />
1162 GEOSYNTHETICS INTERNATIONAL S 1995, VOL. 2, NO. 6
GIROUD, BACHUS AND BONAPARTE D Influence of Water on Layered Systems on Slopes<br />
slope should be equal to the average flow thickness, t wavg , for the actual slope geometry,<br />
calculated as indicated in Section 2.1.<br />
3.1.2 Factor of Safety<br />
In the case of an infinite slope, there is no mechanism at the toe or at the top of the<br />
slope that may contribute to stability. Therefore, the stability depends only on the shear<br />
strength along the potential slip surface. Accordingly, the factor of safety of an infinite<br />
slope is defined as follows:<br />
FS = s τ<br />
(35)<br />
where: s = interface shear strength along the slip surface; <strong>and</strong> τ = interface shear stress<br />
along the slip surface. This equation represents a limit state wherein shear stress <strong>and</strong><br />
shear strength are assumed to be independent of slope deformation.<br />
The interface shear strength, s, of a soil-geosynthetic or a geosynthetic-geosynthetic<br />
interface may be expressed as follows using Coulomb’s law:<br />
s = a + σ ′ n tan δ<br />
(36)<br />
where: a = interface adhesion along the slip surface; <strong>and</strong> δ = interface friction angle<br />
along the slip surface.<br />
The remainder of Section 3 presents a discussion on how the factor of safety is affected<br />
<strong>by</strong> water flow.<br />
3.2 Case of No Water Flow<br />
If there is no water flow, the effective normal stress on the geomembrane, σ ′ n ,isgiven<br />
<strong>by</strong> Equation 26. Therefore, Equation 36 becomes:<br />
s = a + γ t t cos β tan δ<br />
(37)<br />
Combining Equations 27, 35 <strong>and</strong> 37 gives:<br />
FS = a + γ t t cos β tan δ<br />
γ t t sin β<br />
(38)<br />
hence:<br />
FS = tan δ<br />
tan β + a<br />
γ t t sin β<br />
(39)<br />
GEOSYNTHETICS INTERNATIONAL S 1995, VOL. 2, NO. 6<br />
1163
GIROUD, BACHUS AND BONAPARTE D Influence of Water on Layered Systems on Slopes<br />
The discussion presented in Section 3.3 will show that the effect of water flow on stability<br />
is different whether the slip surface is above or below the geomembrane. Consequently,<br />
if there is no water flow <strong>and</strong> the slip surface is above the geomembrane, it is<br />
convenient to write the factor of safety as follows:<br />
a A<br />
FS A = tan δ A<br />
tan β + γ t t sin β<br />
(40)<br />
where: δ A = interface friction angle along a slip surface located above the geomembrane;<br />
<strong>and</strong> a A = interface adhesion along a slip surface located above the geomembrane.<br />
Similarly, the factor of safety is written as follows if there is no water flow <strong>and</strong> the<br />
slip surface is below the geomembrane:<br />
a B<br />
FS B = tan δ B<br />
tan β + γ t t sin β<br />
(41)<br />
where: δ B = interface friction angle along a slip surface located below the geomembrane;<br />
<strong>and</strong> a B = interface adhesion along a slip surface located below the geomembrane.<br />
It should be noted that it has been implicitly assumed that there is only one slip surface.<br />
In particular, Equation 41 is only valid if the only slip surface is below the geomembrane.<br />
If there was another slip surface above the geomembrane, the shear stress<br />
due to the weight of the soil layer above the geomembrane would not be entirely transmitted<br />
through the slip surface, <strong>and</strong> the equation would not be correct.<br />
3.3 Case of Full Water Flow<br />
3.3.1 Effect of Water Flow on the Stability Above the Geomembrane<br />
It is assumed that the slip surface is at, or close to, the upper face of the geomembrane,<br />
i.e. the thickness of soil above the slip surface is t, as defined in Figure 2. To calculate<br />
the factor of safety defined <strong>by</strong> Equation 35, it is necessary to evaluate the interface shear<br />
strength, s, <strong>and</strong> the shear stress, τ. The shear stress, τ, is given <strong>by</strong> Equation 23. The interface<br />
shear strength must be calculated using the effective normal stress, σ ′ n , expressed<br />
<strong>by</strong> Equation 13. Combining Equations 13 <strong>and</strong> 36, <strong>and</strong> using the subscript A for “above”,<br />
give:<br />
s = a A + γ b t cos β tan δ A<br />
(42)<br />
Combining Equations 23, 35 <strong>and</strong> 42 gives:<br />
FS A = γ b<br />
γ sat<br />
tan δ A<br />
tan β + a A<br />
γ sat t sin β<br />
(43)<br />
1164 GEOSYNTHETICS INTERNATIONAL S 1995, VOL. 2, NO. 6
GIROUD, BACHUS AND BONAPARTE D Influence of Water on Layered Systems on Slopes<br />
This factor of safety is to be compared with the factor of safety expressed <strong>by</strong> Equation<br />
40 for the case of no water flow. The comparison shows that, for the typical soil presentedinTable1:<br />
S FS A full-flow / FS A no-flow =0.52ifa A =0;<br />
S FS A full-flow / FS A no-flow =0.90ifδ A =0;<strong>and</strong><br />
S FS A full-flow / FS A no-flow is between 0.52 <strong>and</strong> 0.90 if a A ≠ 0<strong>and</strong>δ A ≠ 0.<br />
Based on these results, it is clear that, for slip surfaces located above the geomembrane,<br />
the factor of safety can significantly decrease if water is flowing.<br />
The ratios presented above are based on the assumption that the interface shear<br />
strength properties, δ A <strong>and</strong> a A , are not influenced <strong>by</strong> the presence of water. If the presence<br />
of water reduced the interface shear strength parameters, the effects noted in the<br />
above comparison would be even more substantial.<br />
3.3.2 Effect of Water Flow on the Stability Below the Geomembrane<br />
It is assumed that the slip surface is located at, or close to, the lower face of the geomembrane<br />
<strong>and</strong> it is assumed that there is no other slip surface above the geomembrane.<br />
(The case of a dual slip surface is theoretically possible, but in this case only a fraction<br />
of the shear stress would be transmitted through the upper slip surface <strong>and</strong> reach the<br />
lower slip surface.) Therefore, it is assumed that the totality of the shear stress is transmitted<br />
to the considered slip surface that is located below the geomembrane.<br />
To calculate the factor of safety defined <strong>by</strong> Equation 35, it is necessary to evaluate<br />
the interface shear strength, s, <strong>and</strong> the shear stress, τ. The shear stress is expressed <strong>by</strong><br />
Equation 25, which is identical to Equation 23. It is interesting to note that the shear<br />
stress acting below the geomembrane is the same as the shear stress acting above the<br />
geomembrane (provided that there is no dual slip surface <strong>and</strong> that no geomembrane tension<br />
is mobilized, as discussed in Section 2.3.2).<br />
The interface shear strength must be calculated using the effective normal stress below<br />
the geomembrane, which is given <strong>by</strong> Equation 24. Combining Equations 24 <strong>and</strong><br />
36, <strong>and</strong> using the subscript B for “below”, give:<br />
s = a B + γ sat t cos β tan δ B<br />
(44)<br />
Combining Equations 25, 35 <strong>and</strong> 44 gives:<br />
a B<br />
FS B = tan δ B<br />
tan β + γ sat t sin β<br />
(45)<br />
This factor of safety is to be compared with the factor of safety expressed <strong>by</strong> Equation<br />
41 for the case of no water flow. The comparison shows that, for the typical soil presentedinTable1:<br />
S FS B full-flow / FS B no-flow =1ifa B =0;<br />
S FS B full-flow / FS B no-flow =0.90ifδ B =0;<strong>and</strong><br />
GEOSYNTHETICS INTERNATIONAL S 1995, VOL. 2, NO. 6<br />
1165
GIROUD, BACHUS AND BONAPARTE D Influence of Water on Layered Systems on Slopes<br />
S FS B full-flow / FS B no-flow is between 0.9 <strong>and</strong> 1 if a B ≠ 0<strong>and</strong>δ B ≠ 0.<br />
Based on these results, it is clear that, for slip surfaces located below the geomembrane,<br />
the factor of safety is not greatly affected if water is flowing above the geomembrane,<br />
provided that there is no pore water pressure under the geomembrane. This result<br />
is a logical extension of the conclusions presented in Section 2.3.5 where it was shown<br />
that water flowing above the geomembrane has only a small influence on the shear<br />
stress <strong>and</strong> the effective normal stress below the geomembrane.<br />
3.4 Case of Partial Water Flow<br />
The process used in Section 3.3 is used again below. Therefore, no detailed explanation<br />
is given in Section 3.4.<br />
3.4.1 Effect of Water Flow on the Stability Above the Geomembrane<br />
Combining Equations 29 <strong>and</strong> 36 gives the interface shear strength as follows:<br />
s = a A + γ t (t − t w ) + γ b t w<br />
cos β tan δ A<br />
(46)<br />
Combining Equations 31, 35 <strong>and</strong> 46 gives the factor of safety as follows:<br />
FS A = γ t (t − t w ) + γ b t w tan δ A<br />
γ t (t − t w ) + γ sat t w tan β +<br />
a A ∕ sin β<br />
γ t (t − t w ) + γ sat t w<br />
(47)<br />
3.4.2 Effect of Water Flow on the Stability Below the Geomembrane<br />
Combining Equations 33 <strong>and</strong> 36 gives the interface shear strength as follows:<br />
s = a B + γ t (t − t w ) + γ sat t w<br />
cos β tan δ B<br />
(48)<br />
Combining Equations 34, 35 <strong>and</strong> 48 gives the factor of safety as follows:<br />
FS B = tan δ B<br />
tan β + a B ∕ sin β<br />
γ t (t − t w ) + γ sat t w<br />
(49)<br />
3.5 Conclusions Regarding the Influence of Water Flow on Infinite Slopes<br />
3.5.1 Summary of Equations<br />
Equations giving the factor of safety for the case of an infinite slope are regrouped<br />
in Table 4. It is possible to represent all cases <strong>by</strong> one general equation:<br />
1166 GEOSYNTHETICS INTERNATIONAL S 1995, VOL. 2, NO. 6
GIROUD, BACHUS AND BONAPARTE D Influence of Water on Layered Systems on Slopes<br />
FS = γ RESIST<br />
γ DRIVE<br />
tan δ a∕ sin β<br />
+<br />
tan β γ DRIVE t<br />
(50)<br />
where the values of γ RESIST <strong>and</strong> γ DRIVE are given in Table 5. As the subscripts indicate,<br />
γ RESIST <strong>and</strong> γ DRIVE are the unit weights associated with the resisting <strong>and</strong> driving forces,<br />
respectively, that govern stability. It should be noted that, consistent with the definition<br />
of the factor of safety, γ DRIVE appears in both denominators, whereas, consistent with<br />
Coulomb’s law, γ RESIST appears only in the numerator with tanδ.<br />
Table 4.<br />
Factor of safety for an infinite slope.<br />
No flow<br />
FS A = tan δ A<br />
tan β + a A<br />
γ t t sin β<br />
FS B = tan δ B<br />
tan β + a B<br />
γ t t sin β<br />
Full flow<br />
FS A = γ b tan δ A<br />
γ sat tan β + a A<br />
γ sat t sin β<br />
FS B = tan δ B<br />
tan β + a B<br />
γ sat t sin β<br />
Partial flow<br />
FS A = γ t (t − t w ) + γ b t w tan δ A<br />
γ t (t − t w ) + γ sat t w tan β + a A ∕ sin β<br />
γ t (t − t w ) + γ sat t w<br />
FS B = tan δ B<br />
tan β + a B ∕ sin β<br />
γ t (t − t w ) + γ sat t w<br />
Notes: Subscripts A for “above the geomembrane” <strong>and</strong> B for “below the geomembrane”. The flow thickness,<br />
t w , <strong>and</strong> the drainage layer thickness, t, are defined inFigure 4.The expressionsfor partialflow becomeidentical<br />
to the expressions for no flow if t w = 0 <strong>and</strong> identical to the expressions for saturated flow if t w = t.<br />
Table 5.<br />
General stability equation for an infinite slope.<br />
General equation<br />
Type<br />
of<br />
flow<br />
FS = γ RESIST<br />
γ DRIVE<br />
Above<br />
(δ = δ A , a = a A )<br />
tan δ a∕ sin β<br />
+<br />
tan β γ DRIVE t<br />
Values of the parameters<br />
Below<br />
(δ = δ B , a = a B )<br />
γ RESIST γ DRIVE γ RESIST = γ DRIVE<br />
No flow γ t γ t<br />
Full flow γ b γ sat<br />
Partial flow γ t 1 − t w<br />
t<br />
+ γ b<br />
t wt<br />
γ t 1 − t w<br />
t<br />
+ γ sat<br />
t wt<br />
Notes: The flow thickness, t w , <strong>and</strong> the drainage layer thickness, t, are defined in Figure 4. The expressions<br />
for partial flow become identical to the expression for no flow if t w = 0 <strong>and</strong> identical to the expressions for<br />
saturated flow if t w = t.<br />
GEOSYNTHETICS INTERNATIONAL S 1995, VOL. 2, NO. 6<br />
1167
GIROUD, BACHUS AND BONAPARTE D Influence of Water on Layered Systems on Slopes<br />
Equation 50 is essentially of academic interest for infinite slopes because it can only<br />
be used with Table 5, which makes it more cumbersome than the equations summarized<br />
in Table 4. However, Equation 50 is useful within the scope of this paper because it provides<br />
the model that will be used to establish with minimum effort the equation for<br />
slopes of finite height.<br />
3.5.2 Discussion of the Effects of Water Flow on Infinite Slopes<br />
As indicated in Sections 3.3 <strong>and</strong> 3.4, the effect of water flow on the stability of a geosynthetic-soil<br />
layered system on a slope is much greater if the slip surface is above the<br />
geomembrane than if it is below. The reasons for this can be summarized as follows:<br />
S The main effect of water flowing in a geosynthetic-soil layered system on a slope is<br />
the significant decrease in the effective normal stress above the geomembrane.<br />
S Other effects of water flowing in a geosynthetic-soil layered system are a slight increase<br />
in the effective normal stress below the geomembrane <strong>and</strong> a slight increase in<br />
the shear stress above <strong>and</strong> below the geomembrane.<br />
S As a result of the changes in effective normal stress, the shear strength (soil <strong>and</strong> interface<br />
shear strength) significantly decreases above the geomembrane <strong>and</strong> slightly increases<br />
below the geomembrane.<br />
S As a result of the changes in shear strength <strong>and</strong> the slight increase in shear stress, the<br />
factor of safety is significantly affected above the geomembrane <strong>and</strong> only mildly affected<br />
below the geomembrane.<br />
This is confirmed <strong>by</strong> the simple examples presented in Tables 6 <strong>and</strong> 7. Table 6 shows<br />
that if there is no interface adhesion, which is a case frequently considered in analyses,<br />
the stability below the geomembrane is not affected at all <strong>by</strong> water flow above the geomembrane,<br />
yet the stability above the geomembrane is significantly influenced <strong>by</strong> water<br />
flow.<br />
Table 6. Example of factor of safety calculation for an infinite slope in the case where there<br />
is no interface adhesion, <strong>and</strong> where the slope angle, β, equals the interface friction angle, δ.<br />
Assumptions: δ A = δ B = β a A = a B =0<br />
No flow<br />
Full flow<br />
Case<br />
Partial flow<br />
(half full)<br />
(t w =0.5t)<br />
Factor of safety<br />
FS A =1.00+0=1.00<br />
FS B =1.00+0=1.00<br />
FS A = (0.525) (1.00) + 0 = 0.525<br />
FS B =1.00+0=1.00<br />
(0.900)(0.5) + (0.525)(0.5)<br />
FS A = (1.00) + 0 = 0.750<br />
(0.900)(0.5) + (1.0)(0.5)<br />
FS B =1.00+0=1.00<br />
Notes: The meaning of the subscripts is as follows: A = above the geomembrane; <strong>and</strong> B =belowthe<br />
geomembrane. The following numerical values are from Table 1: γ b /γ sat = 0.525, <strong>and</strong> γ t /γ sat =0.900.The<br />
equations used in this table are presented in the same order in Table 4.<br />
1168 GEOSYNTHETICS INTERNATIONAL S 1995, VOL. 2, NO. 6
GIROUD, BACHUS AND BONAPARTE D Influence of Water on Layered Systems on Slopes<br />
Table7. Exampleoffactorofsafetycalculationforaninfiniteslopeinacasewherethereis<br />
interface adhesion.<br />
Assumptions: tanδ A =tanδ B =0.75tanβ a A = a B =0.25γ t tsinβ<br />
Case<br />
No flow<br />
Full flow<br />
Partial flow<br />
(half full)<br />
(t w =0.5t)<br />
(0.900)(0.5) + (0.525)(0.5)<br />
FS A =<br />
(0.900)(0.5) + (1.0)(0.5)<br />
Factor of safety<br />
FS A = 0.75 + 0.25 = 1.00<br />
FS B = 0.75 + 0.25 = 1.00<br />
FS A = (0.525) (0.75) + (0.900) (0.25) = 0.619<br />
FS B = 0.75 + (0.900) (0.25) = 0.975<br />
(0.900)(0.25)<br />
(0.75) +<br />
(0.900)(0.5) + (1.0)(0.5) = 0.799<br />
(0.900)(0.25)<br />
FS B = 0.75 +<br />
(0.900)(0.5) + (1.0)(0.5) = 0.987<br />
Notes: The meaning of the subscripts is as follows: A = above the geomembrane; <strong>and</strong> B =belowthe<br />
geomembrane. The following numerical values are from Table 1: γ b /γ sat = 0.525, <strong>and</strong> γ t /γ sat = 0.900. The<br />
equations used in this table are presented in the same order in Table 4.<br />
4 EFFECT OF WATER FLOW ON THE STABILITY OF A<br />
GEOSYNTHETIC-SOIL LAYERED SYSTEM ON A SLOPE<br />
OF FINITE HEIGHT<br />
4.1 Factor of Safety for a Slope of Finite Height with No Water Flow<br />
<strong>Giroud</strong> et al. (1995) have shown that the factor of safety of a geosynthetic-soil layered<br />
system (such as a liner system) constructed on a slope of finite height is expressed <strong>by</strong><br />
the following equation when there is no water flow:<br />
FS = tan δ<br />
tan β + a<br />
γt sin β + t h<br />
sin Ô<br />
2sinβ cos β cos(β + Ô) + c<br />
γh<br />
cos Ô<br />
sin β cos(β + Ô) + T<br />
γht<br />
(51)<br />
where: δ = interface friction angle; a = interface adhesion; Ô = internal friction angle<br />
of soil above the geomembrane; c = cohesion of soil above the geomembrane; γ = unit<br />
weight of soil above the geomembrane; t = thickness of soil above the geomembrane;<br />
h = height of slope (as defined in Figure 5); β = slope angle; <strong>and</strong> T = geosynthetic tension<br />
above the slip surface.<br />
This equation can also be written as follows:<br />
FS = tan δ<br />
tan β + a<br />
γt sin β + t h<br />
tan Ô∕(2 sin β cos 2 β)<br />
+ c<br />
1 − tan β tan Ô γh<br />
1∕(sin β cos β)<br />
1 − tan β tan Ô + T<br />
γht<br />
(52)<br />
Equation 52 is slightly more complex than Equation 51, but it better shows the influence<br />
of Ô through the term tanÔ.<br />
GEOSYNTHETICS INTERNATIONAL S 1995, VOL. 2, NO. 6<br />
1169
GIROUD, BACHUS AND BONAPARTE D Influence of Water on Layered Systems on Slopes<br />
Figure 5. Definition of a geosynthetic-soil layered system on a slope of finite height.<br />
(Note: The slip surface considered in the development of Equation 51 or 52 is DABC.)<br />
Equation 51 (or Equation 52) comprises five terms. These terms can be characterized<br />
as follows:<br />
S The first term quantifies the contribution of the interface friction angle to stability.<br />
S The second term quantifies the contribution of the interface adhesion to stability.<br />
S The third <strong>and</strong> fourth terms quantify the contribution of the toe buttressing effect,<br />
which results from the shear strength of the soil located at the toe of the slope above<br />
the slip surface. Both terms depend on the soil internal friction angle, whereas only<br />
the fourth term depends on the soil cohesion.<br />
S The fifth term quantifies the contribution to the factor of safety of any tension in the<br />
geosynthetics located above the slip surface (which may include one or more geosynthetics<br />
specifically used as reinforcement).<br />
A detailed discussion of the five terms may be found in the paper <strong>by</strong> <strong>Giroud</strong> et al.<br />
(1995).<br />
4.2 Factor of Safety for a Slope of Finite Height with Water Flow<br />
The approach followed below to develop the factor of safety equation with water flow<br />
for the case of a slope of finite height is similar to the approach used for the case of an<br />
infinite slope to develop the general equation presented in Section 3.5.1 <strong>and</strong> Table 5.<br />
This approach consists of writing a unique equation that identifies the relevant values<br />
of the unit weight (see Equation 50). The method used <strong>by</strong> <strong>Giroud</strong> et al. (1995) to establish<br />
Equation 51 (or Equation 52, which is equivalent) using the two-wedge approach<br />
shown in Figure 6 was followed step-<strong>by</strong>-step. The calculations originally performed <strong>by</strong><br />
<strong>Giroud</strong> et al. (1995) were repeated using the following three different values for the unit<br />
1170 GEOSYNTHETICS INTERNATIONAL S 1995, VOL. 2, NO. 6
GIROUD, BACHUS AND BONAPARTE D Influence of Water on Layered Systems on Slopes<br />
Figure 6. Definition of the two wedges used in the development of the factor of safety<br />
equation for a geosynthetic-soil layered system on a slope of finite height.<br />
weights, depending on the considered wedge <strong>and</strong> the role of the considered force (resisting<br />
or driving):<br />
S γ 1RESIST is the unit weight associated with the internal friction angle, Ô, that contributes<br />
to the portion of the resisting force related to Wedge 1 (i.e. the toe buttressing effect);<br />
S γ 2RESIST is the unit weight associated with the interface friction angle, δ, that contributes<br />
to the portion of the resisting force related to Wedge 2 (i.e. the interface shear<br />
strength); <strong>and</strong><br />
S γ 2DRIVE is the unit weight that contributes to the driving force due to the weight of<br />
Wedge 2.<br />
The following equation, which is similar to Equation 51, but which also includes the<br />
general stability approach presented in Equation 50 <strong>and</strong> Table 5, has thus been obtained:<br />
FS = γ 2RESIST<br />
γ 2DRIVE<br />
tan δ<br />
tan β + a<br />
γ 2DRIVE t sin β + γ 1RESIST<br />
γ 2DRIVE<br />
t<br />
h<br />
sin Ô<br />
2sinβ cos β cos(β + Ô)<br />
+ c<br />
γ 2DRIVE<br />
h<br />
cos Ô<br />
sin β cos(β + Ô) + T<br />
γ 2DRIVE ht<br />
(53)<br />
It should be noted that, as a result of the definition of the factor of safety, the two unit<br />
weights related to resisting forces must appear in two of the numerators of Equation 53,<br />
<strong>and</strong> the unit weight related to the driving force must appear in all of the denominators<br />
of Equation 53. It should also be noted that, consistent with the two-wedge approach<br />
used to develop Equation 51, the unit weight of Wedge 1, γ 1 , only contributes to resist-<br />
GEOSYNTHETICS INTERNATIONAL S 1995, VOL. 2, NO. 6<br />
1171
GIROUD, BACHUS AND BONAPARTE D Influence of Water on Layered Systems on Slopes<br />
ing forces, whereas the unit weight of Wedge 2, γ 2 , contributes to both resisting <strong>and</strong><br />
driving forces.<br />
The unit weights of the soil overlying the geomembrane used in Equation 53 are consistent<br />
with those given in Table 5 <strong>and</strong> are as follows:<br />
γ 2DRIVE = γ t<br />
1 − t w<br />
t<br />
+ γ sat<br />
t wt<br />
(54)<br />
γ 1RESIST = γ t 1 − t* w<br />
t<br />
+ γ b<br />
t * w<br />
t<br />
(55)<br />
The third unit weight used in Equation 53 depends on the considered interface. For<br />
a slip surface located above the geomembrane:<br />
γ 2RESIST = γ t<br />
1 − t w<br />
t<br />
+ γ b<br />
t wt<br />
(56)<br />
<strong>and</strong> for a slip surface located below the geomembrane:<br />
γ 2RESIST = γ t<br />
1 − t w<br />
t<br />
+ γ sat<br />
t wt<br />
(57)<br />
where: t w = thickness of flow in Wedge 2; <strong>and</strong> t * w = thickness of flow in Wedge 1. If<br />
the flow thickness is not uniform in Wedge 2, an average value between A <strong>and</strong> B (Figure<br />
7) should be used, t w = t wavg , as indicated in Section 2.1. In Wedge 1, the flow thickness<br />
is rarely uniform <strong>and</strong> an average value should be selected <strong>by</strong> the design engineer. The<br />
average value may be small if there is effective drainage at the toe of the slope (e.g. a<br />
Figure 7.<br />
Flow thickness for the case of a slope of finite height.<br />
1172 GEOSYNTHETICS INTERNATIONAL S 1995, VOL. 2, NO. 6
GIROUD, BACHUS AND BONAPARTE D Influence of Water on Layered Systems on Slopes<br />
collector pipe that works) or may be large (up to t * w = t) if the toe of the slope is saturated<br />
or flooded. (Note that γ 2DRIVE <strong>and</strong> γ 1RESIST each have a unique value, regardless of whether<br />
the slip surface is above or below the geomembrane, because they are always acting<br />
above the geomembrane, whereas γ 2RESIST acts at the location of the slip surface <strong>and</strong><br />
therefore has a different value depending on whether the slip surface is above or below<br />
the geomembrane.)<br />
Combining Equations 53, 54, 55 <strong>and</strong> 56 gives the factor of safety for a slip surface<br />
above the geomembrane as follows:<br />
FS A = γ t (t − t w ) + γ b t w tan δ A<br />
γ t (t − t w ) + γ sat t w tan β +<br />
+ γ t (t − t * w) + γ b t * w<br />
γ t (t − t w ) + γ sat t w<br />
t<br />
h<br />
a A ∕ sin β<br />
γ t (t − t w ) + γ sat t w<br />
sin Ô<br />
2sinβ cos β cos(β + Ô)<br />
ct∕h<br />
+<br />
γ t (t − t w ) + γ sat t w<br />
cos Ô<br />
sin β cos(β + Ô)<br />
T∕h<br />
+<br />
(58)<br />
γ t (t − t w ) + γ sat t w<br />
Combining Equations 53, 54, 55 <strong>and</strong> 57 gives the factor of safety for a slip surface<br />
below the geomembrane as follows:<br />
FS B = tan δ B<br />
tan β + a B ∕ sin β<br />
+ γ t (t − t * w) + γ b t * w<br />
γ t (t − t w ) + γ sat t w γ t (t − t w ) + γ sat t w<br />
t<br />
h<br />
sin Ô<br />
2sinβ cos β cos(β + Ô)<br />
+<br />
ct∕h<br />
cos Ô<br />
γ t (t − t w ) + γ sat t w sin β cos(β + Ô) + T∕h<br />
γ t (t − t w ) + γ sat t w<br />
(59)<br />
It should be noted that only the first two terms of Equations 58 <strong>and</strong> 59 are different.<br />
In other words, the contribution of the toe buttressing effect (third <strong>and</strong> fourth terms) <strong>and</strong><br />
of the geosynthetic reinforcement (fifth term) is the same whether the slip surface is<br />
above or below the geomembrane.<br />
It should also be noted that in Equations 58 <strong>and</strong> 59, the two terms that contain Ô can<br />
be replaced <strong>by</strong> the following equivalent expressions derived from a comparison between<br />
Equations 51 <strong>and</strong> 52:<br />
sin Ô<br />
2sinβ cos β cos(β + Ô) = tan Ô∕(2 sin β cos2 β)<br />
1 − tan β tan Ô<br />
cos Ô 1∕(sin β cos β)<br />
=<br />
sin β cos(β + Ô) 1 − tan β tan Ô<br />
(60)<br />
(61)<br />
GEOSYNTHETICS INTERNATIONAL S 1995, VOL. 2, NO. 6<br />
1173
GIROUD, BACHUS AND BONAPARTE D Influence of Water on Layered Systems on Slopes<br />
When there is full flow in Wedge 1 (t w = t)aswellasinWedge2( t * w = t), Equation<br />
58 gives the following equation for the factor of safety for a slip surface above the geomembrane:<br />
FS A = γ b tan δ A<br />
γ sat tan β +<br />
+ c<br />
γ sat h<br />
a A<br />
γ sat t sin β + γ b<br />
γ sat<br />
cos Ô<br />
sin β cos(β + Ô) + T<br />
γ sat th<br />
t<br />
h<br />
sin Ô<br />
2sinβ cos β cos(β + Ô)<br />
(62)<br />
<strong>and</strong> Equation 59 gives the following equation for the factor of safety for a slip surface<br />
below the geomembrane:<br />
a B<br />
FS B = tan δ B<br />
tan β + γ sat t sin β + γ b<br />
+ c<br />
γ sat h<br />
γ sat<br />
t<br />
h<br />
cos Ô<br />
sin β cos(β + Ô) + T<br />
γ sat th<br />
sin Ô<br />
2sinβ cos β cos(β + Ô)<br />
(63)<br />
When there is no water flow, t w = t * w = 0. Equation 58 then gives Equation 51 with<br />
δ = δ A , a = a A <strong>and</strong> γ = γ t . Similarly, Equation 59 gives Equation 51 with δ = δ B , a =<br />
a B <strong>and</strong> γ = γ t .<br />
4.3 Discussion of the Effects of Water Flow on Slopes of Finite Height<br />
The following two comments can be made:<br />
S Inspection of Equations 58 <strong>and</strong> 62 (i.e. the equations that give the factor of safety for<br />
a slip surface located above the geomembrane) <strong>and</strong> Equations 59 <strong>and</strong> 63 (i.e. the<br />
equations that give the factor of safety for a slip surface located below the geomembrane)<br />
shows that the difference between the two sets of equations occurs only in the<br />
first two terms of the equations, i.e. the two terms that give the factor of safety of an<br />
infinite slope (see Table 4).<br />
S In most cases of practical interest, the magnitudes of the first two terms of Equations<br />
58, 59, 62 <strong>and</strong> 63 are far greater than the magnitudes of the three other terms. Therefore,<br />
the impact that water flow may have on the factor of safety is essentially through<br />
the first two terms of the equation.<br />
From the above two comments, it may be concluded that the influence of water flow<br />
on the stability of geosynthetic-soil layered systems on slopes of finite height is similar<br />
to the influence of water flow on the stability of geosynthetic-soil layered systems on<br />
infinite slopes. In particular, water flow significantly reduces the factor of safety for a<br />
slip surface located above the geomembrane, but has a relatively small effect on the factor<br />
of safety for a slip surface located below the geomembrane.<br />
1174 GEOSYNTHETICS INTERNATIONAL S 1995, VOL. 2, NO. 6
GIROUD, BACHUS AND BONAPARTE D Influence of Water on Layered Systems on Slopes<br />
4.4 Design Example<br />
4.4.1 Presentation of the Design Example<br />
A simple geosynthetic-soil layered system is considered. It consists of a 0.55 m thick<br />
layer of granular soil having the unit weights shown in Table 1, resting on a geomembrane,<br />
which in turn rests on a 1V:4H slope (i.e. β =14_)thatis6mhigh(i.e.h =6m<br />
as defined in Figure 5). The relevant materials <strong>and</strong> interface properties are:<br />
S granular soil shear strength: internal friction angle, Ô =33_, <strong>and</strong> cohesion, c =0;<br />
S interface shear strength between the geomembrane <strong>and</strong> the overlying granular soil:<br />
interface friction angle, δ A =16_, <strong>and</strong> interface adhesion, a A =0.<br />
S interface shear strength between the geomembrane <strong>and</strong> the underlying soil: interface<br />
friction angle, δ B =11_, <strong>and</strong> interface cohesion, a B =2.5kPa.<br />
According to a preceding design step, not described herein, the maximum expected<br />
water flow thickness during the worst case precipitation is 0.30 m. It will be conservatively<br />
assumed that t w = 0.30 m. This design example is depicted schematically in Figure<br />
8.<br />
What is the factor of safety of the considered geosynthetic-soil layered system against<br />
instability?<br />
4.4.2 Overview<br />
The factor of safety will be calculated first for the case where there is no flow, then<br />
for the case where water flows. In both cases, slip surfaces above <strong>and</strong> below the geomembrane<br />
will be considered.<br />
β =14_<br />
Figure 8.<br />
Illustration of the design example.<br />
GEOSYNTHETICS INTERNATIONAL S 1995, VOL. 2, NO. 6<br />
1175
GIROUD, BACHUS AND BONAPARTE D Influence of Water on Layered Systems on Slopes<br />
4.4.3 Case of No Water Flow<br />
Whenthereisnoflow,Equation51or52canbeused.Equation52isusedbelow.<br />
Slip Surface Above the Geomembrane. If the slip surface is above the geomembrane,<br />
Equation52isusedwithδ A <strong>and</strong> a A as follows:<br />
hence:<br />
FS A =<br />
tan 16_ 1∕4 + 0 + 0.55 (tan 33 _)∕(2 sin 14_ cos 2 14 _)<br />
6 1 − (1∕4) tan 33_<br />
FS A = 1.147 + 0 + 0.156 + 0 + 0 = 1.303<br />
+ 0 + 0<br />
Slip Surface Below the Geomembrane. If the slip surface is below the geomembrane,<br />
Equation52isusedwithδ B <strong>and</strong> a B as follows:<br />
tan 11_ FS B =<br />
1∕4 + 2.5<br />
(18.59)(0.55) sin 14 + 0.55 (tan 33 _)∕(2 sin 14_ cos 2 14 _)<br />
+ 0 + 0<br />
_ 6 1 − (1∕4) tan 33_<br />
hence:<br />
FS B = 0.778 + 1.011 + 0.156 + 0 + 0 = 1.945<br />
4.4.4 Case of Water Flow<br />
As indicated in Section 4.4.1, the flow thickness to be considered along the slope (i.e.<br />
in Wedge 2 in Figure 7) is t w = 0.30 m (Figure 8). To be conservative, poor drainage will<br />
be considered at the toe (Figure 8). Simple geometric considerations in Figure 8 show<br />
that, with the assumption of a horizontal phreatic surface in Wedge 1, 79% of Wedge<br />
1 is saturated. Therefore, the following approximate value of t * w will be used:<br />
t * w = (0.79) (0.55) = 0.44 m<br />
The equations to be used to calculate the factor of safety when there is water flow are:<br />
Equation 58 for a slip surface located above the geomembrane <strong>and</strong> Equation 59 for a<br />
slip surface located below the geomembrane. These equations will be used with the expressions<br />
given <strong>by</strong> Equations 60 <strong>and</strong> 61 (to familiarize the reader with the fact that there<br />
are two equivalent expressions).<br />
Slip Surface Above the Geomembrane. If the slip surface is above the geomembrane,<br />
Equation 58 (written with the expressions defined <strong>by</strong> Equations 60 <strong>and</strong> 61) gives the<br />
calculated factor of safety as follows:<br />
1176 GEOSYNTHETICS INTERNATIONAL S 1995, VOL. 2, NO. 6
GIROUD, BACHUS AND BONAPARTE D Influence of Water on Layered Systems on Slopes<br />
FS A =<br />
hence:<br />
(18.59)(0.55 − 0.30) + (10.84)(0.30)<br />
(18.59)(0.55 − 0.30) + (20.65)(0.30)<br />
(18.59)(0.55 − 0.44) + (10.84)(0.44)<br />
+<br />
(18.59)(0.55 − 0.44) + (20.65)(0.44)<br />
+ 0 + 0<br />
tan 16_<br />
1∕4 + 0<br />
0.55<br />
6<br />
FS A = (0.729)(1.147) + 0 + (0.612)(0.156) + 0 + 0 = 0.932<br />
(tan 33 _)∕(2 sin 14_<br />
cos 2 14 _)<br />
1 − (1∕4) tan 33_<br />
The first <strong>and</strong> third terms which carry over from the case of no flow (i.e. 1.147 <strong>and</strong><br />
0.156) have been significantly reduced <strong>by</strong> the effect of water flow <strong>and</strong>, as a result, the<br />
calculated factor of safety above the geomembrane is less than one.<br />
Slip Surface Below the Geomembrane. If the slip surface is below the geomembrane,<br />
Equation 59 (written with the expressions defined <strong>by</strong> Equations 60 <strong>and</strong> 61) gives the<br />
calculated factor of safety as follows:<br />
tan 11_<br />
FS B =<br />
1∕4 + 2.5∕ sin 14_<br />
(18.59)(0.55 − 0.30) + (20.65)(0.30)<br />
hence:<br />
(18.59)(0.55 − 0.44) + (10.84)(0.44)<br />
+<br />
(18.59)(0.55 − 0.44) + (20.65)(0.44)<br />
+ 0 + 0<br />
0.55<br />
6<br />
FS B = 0.778 + 0.953 + (0.612)(0.156) + 0 + 0<br />
(tan 33 _)∕(2 sin 14_<br />
cos 2 14 _)<br />
1 − (1∕4) tan 33_<br />
hence:<br />
FS B = 0.778 + 0.953 + 0.095 = 1.826<br />
4.4.5 Discussion of the Design Example<br />
The results of the above design example illustrate that, in the case of a slope of finite<br />
height, the calculated factor of safety for a slip surface located above the geomembrane<br />
is significantly affected <strong>by</strong> water flow, whereas the calculated factor of safety for a slip<br />
surface located below the geomembrane is not significantly affected <strong>by</strong> water flow. This<br />
is consistent with the comments made in Section 3.5.2 for infinite slopes.<br />
GEOSYNTHETICS INTERNATIONAL S 1995, VOL. 2, NO. 6<br />
1177
GIROUD, BACHUS AND BONAPARTE D Influence of Water on Layered Systems on Slopes<br />
5 CONCLUSIONS<br />
The effect of water flow on the stability of geosynthetic-soil layered systems on<br />
slopes has been analyzed. It has been shown for both infinite slopes <strong>and</strong> slopes of finite<br />
height that water flow significantly reduces the factor of safety for slip surfaces located<br />
above the geomembrane whereas it reduces only slightly the factor of safety for slip<br />
surfaces located below the geomembrane.<br />
Equations have been provided that allow design engineers to readily calculate the factor<br />
of safety of geosynthetic-soil layered systems with water flow. Design examples<br />
have been provided for an infinite slope <strong>and</strong> a slope of finite height.<br />
The authors hope that this paper will be useful to readers who are interested in an analysis<br />
of the effect of water flow on slope stability, as well as design engineers interested<br />
in a practical design method. Indeed, the first time the method presented herein was<br />
used, it was to solve a practical problem: the senior author used the method to analyze<br />
the failure of a l<strong>and</strong>fill final cover <strong>and</strong> to demonstrate that the water flowing in the drainage<br />
layer located above the geomembrane had not significantly contributed to the failure<br />
since the slip surface was below the geomembrane.<br />
ACKNOWLEDGMENTS<br />
The authors are grateful to T. Pelte for his careful review of the manuscript, <strong>and</strong> G.<br />
Saunders <strong>and</strong> S.M. Berdy for their assistance in the preparation of the paper.<br />
REFERENCES<br />
<strong>Giroud</strong>, J.P., Williams, N.D., Pelte, T. <strong>and</strong> Beech, J.F., 1995, “Stability of Geosynthetic-<br />
Soil Layered Systems on Slopes”, Geosynthetics International, Vol. 2, No. 6, pp.<br />
1115-1148.<br />
<strong>Giroud</strong>, J.P. <strong>and</strong> Houlihan, M.F., 1995, “Design of Leachate Collection Layers”, Proceedings<br />
of the Fifth International L<strong>and</strong>fill Symposium, Vol. 2, Sardinia, Italy, October<br />
1995, pp. 613-640.<br />
NOTATIONS<br />
The subscripts A <strong>and</strong> B are used to identify symbols related to slip surfaces located<br />
“above” <strong>and</strong> “below” the geomembrane, respectively. Forces <strong>and</strong> weights are, in reality,<br />
forces <strong>and</strong> weights per unit length perpendicular to the plane of the figure, hence<br />
the unit N/m. Basic SI units are in parentheses.<br />
a = interface adhesion along the slip surface (Pa)<br />
a A = interface adhesion along a slip surface located above the geomembrane<br />
(Pa)<br />
1178 GEOSYNTHETICS INTERNATIONAL S 1995, VOL. 2, NO. 6
GIROUD, BACHUS AND BONAPARTE D Influence of Water on Layered Systems on Slopes<br />
a B = interface adhesion along a slip surface located below the geomembrane<br />
(Pa)<br />
b = width of a vertical slice of soil measured in the direction of the slope (m)<br />
c = cohesion of soil above the geomembrane (Pa)<br />
F w = drag force (N/m)<br />
f w = drag force per unit volume of soil (N/m 3 )<br />
FS = factor of safety (dimensionless)<br />
FS A = factor of safety if the slip surface is above the geomembrane<br />
(dimensionless)<br />
FS B = factor of safety if the slip surface is below the geomembrane<br />
(dimensionless)<br />
g = acceleration due to gravity (m/s 2 )<br />
h = height of slope (m)<br />
i = hydraulic gradient (dimensionless)<br />
k = soil hydraulic conductivity (m/s)<br />
n = soil porosity (dimensionless)<br />
S = shear force applied on the geomembrane (N)<br />
s = interface shear strength along the slip surface (Pa)<br />
T = geosynthetic tension (N/m)<br />
t = thickness of the soil layer (m)<br />
t w = water flow thickness (m)<br />
t * w = water flow thickness in Wedge 1, i.e. in the toe area (m)<br />
t wavg = average value of water flow thickness (m)<br />
u = pore water pressure (Pa)<br />
u M = pore water pressure at M (Pa)<br />
u N = pore water pressure at N (Pa)<br />
V w = volume of soil occupied <strong>by</strong> water flow (m 3 )<br />
W b = buoyant weight (N/m)<br />
W sat = saturated weight (N/m)<br />
w = water content defined as mass of water divided <strong>by</strong> mass of dry soil<br />
(dimensionless)<br />
z M = elevation of M (Figure 3) (m)<br />
z N = elevation of N (Figure 3) (m)<br />
z Q = elevation of Q (= z N )(Figure3)(m)<br />
β = slope angle (_)<br />
δ = interface friction angle along the slip surface (_)<br />
δ A = interface friction angle along a slip surface located above the<br />
geomembrane (_)<br />
GEOSYNTHETICS INTERNATIONAL S 1995, VOL. 2, NO. 6<br />
1179
GIROUD, BACHUS AND BONAPARTE D Influence of Water on Layered Systems on Slopes<br />
δ B = interface friction angle along a slip surface located below the<br />
geomembrane (_)<br />
Ô = internal friction angle of the soil above the geomembrane (_)<br />
γ = unit weight (N/m 3 )<br />
γ 1RESIST = unit weight of soil associated with the internal friction angle, Ô, that<br />
contributes to the portion of the resisting force related to Wedge 1<br />
(i.e. the toe buttressing effect) in the case of a slope of finite height (N/m 3 )<br />
γ 2DRIVE = unit weight of soil that contributes to the driving force due to the weight<br />
of Wedge 2 in the case of a slope of finite height (N/m 3 )<br />
γ 2RESIST = unit weight of soil associated with the interface friction angle, δ, that<br />
contributes to the portion of the resisting force related to Wedge 2 (i.e.<br />
the interface shear strength) in the case of a slope of finite height (N/m 3 )<br />
γ DRIVE = unit weight of soil associated with the driving forces which govern<br />
stability of an infinite slope (N/m 3 )<br />
γ RESIST = unit weight of soil associated with the resisting forces which govern<br />
stability of an infinite slope (N/m 3 )<br />
γ b = “buoyant unit weight” of soil (N/m 3 )<br />
γ d = “dry unit weight” of soil (N/m 3 )<br />
γ s = unit weight of soil particles (N/m 3 )<br />
γ sat = “saturated unit weight” of soil (N/m 3 )<br />
γ t = “total unit weight” of soil (N/m 3 )<br />
γ w = unit weight of water (N/m 3 )<br />
ρ = density (kg/m 3 )<br />
ρ b = “buoyant density” of soil (kg/m 3 )<br />
ρ d = “dry density” of soil (kg/m 3 )<br />
ρ s = density of soil particles (kg/m 3 )<br />
ρ sat = “saturated density” of soil (kg/m 3 )<br />
ρ t = “total density” of soil (kg/m 3 )<br />
ρ w = density of water (kg/m 3 )<br />
σ n = total normal stress (Pa)<br />
σ ′ n = effective normal stress (Pa)<br />
τ = interface shear stress along the slip surface (Pa)<br />
1180 GEOSYNTHETICS INTERNATIONAL S 1995, VOL. 2, NO. 6
Errata<br />
INFLUENCE OF WATER FLOWONTHE<br />
STABILITY OF GEOSYNTHETIC-SOIL<br />
LAYERED SYSTEMS ON SLOPES<br />
TECHNICAL PAPER FOR ERRATA: <strong>Giroud</strong>, J.P., <strong>Bachus</strong>, R.C. <strong>and</strong> <strong>Bonaparte</strong>,<br />
R., 1995, “Influence of Water Flow on the Stability of Geosynthetic-Soil Layered<br />
Systems on Slopes”, Geosynthetics International, Vol. 2, No. 6, pp. 1149-1180.<br />
PUBLICATION: Geosynthetics International is published <strong>by</strong> the Industrial Fabrics<br />
Association International, 345 Cedar St., Suite 800, St. Paul, MN 55101-1088, USA,<br />
Telephone: 1/612-222-2508, Telefax: 1/612-222-8215. Geosynthetics International is<br />
registered under ISSN 1072-6349.<br />
REFERENCE FOR ERRATA: <strong>Giroud</strong>, J.P., <strong>Bachus</strong>, R.C. <strong>and</strong> <strong>Bonaparte</strong>, R., 1997,<br />
“Errata for ‘Influence of Water Flow on the Stability of Geosynthetic-Soil Layered<br />
Systems on Slopes’”, Geosynthetics International, Vol. 4, No. 2, pp. 209-210.<br />
The authors would like to make the following corrections to their paper which appeared<br />
in Geosynthetics International, Vol. 2, No. 6.<br />
ERRATA FOR SECTION:<br />
4.4.4 Case of Water Flow<br />
On page 1177:<br />
In the denominator of the third term of the first equation for FS A , 0.44 should be replaced<br />
<strong>by</strong> 0.30, i.e. the value of t w . (It is important to note that 0.44 in the numerator<br />
is correct.) As a result, the third term of the second equation for FS A becomes:<br />
(0.628)(0.156) instead of (0.612)(0.156)<br />
Consequently:<br />
FS A = 0.934 instead of FS A = 0.932<br />
The same corrections apply to the first <strong>and</strong> second equations for FS B on the same page<br />
(i.e. p. 1177). Consequently:<br />
GEOSYNTHETICS INTERNATIONAL S 1997, VOL. 4, NO. 2<br />
209
ERRATA D Influence of Water on Layered Systems on Slopes<br />
FS B = 1.829 instead of FS B = 1.826<br />
It is important to note that Equations 58 to 61 are correct. Equations 58 to 61 are the<br />
analytical equations which were used to develop the numerical equations of Section<br />
4.4.4 which contain the errors mentioned above.<br />
The authors are grateful to R.J. Taylor who pointed out the errors.<br />
210 GEOSYNTHETICS INTERNATIONAL S 1997, VOL. 4, NO. 2
