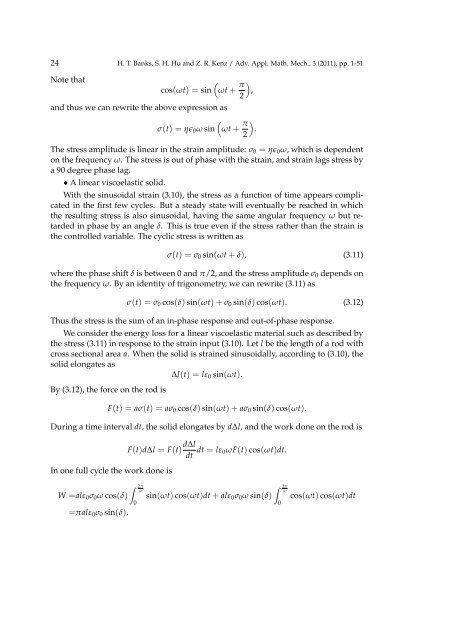

24 H. T. Banks, S. H. Hu <strong>and</strong> Z. R. Kenz / Adv. Appl. Math. Mech., 3 (2011), pp. 1-51<br />
Note that<br />
(<br />
cos(ωt) = sin ωt + π )<br />
,<br />
2<br />
<strong>and</strong> thus we can rewrite the above expression as<br />
(<br />
σ(t) = ηϵ 0 ω sin ωt + π )<br />
.<br />
2<br />
The stress amplitude is linear in the strain amplitude: σ 0 = ηϵ 0 ω, which is dependent<br />
on the frequency ω. The stress is out <strong>of</strong> phase with the strain, <strong>and</strong> strain lags stress by<br />
a 90 degree phase lag.<br />
• A linear viscoelastic solid.<br />
With the sinusoidal strain (3.10), the stress as a function <strong>of</strong> time appears complicated<br />
in the first few cycles. But a steady state will eventually be reached in which<br />
the resulting stress is also sinusoidal, having the same angular frequency ω but retarded<br />
in phase by an angle δ. This is true even if the stress rather than the strain is<br />
the controlled variable. The cyclic stress is written as<br />
σ(t) = σ 0 sin(ωt + δ), (3.11)<br />
where the phase shift δ is between 0 <strong>and</strong> π/2, <strong>and</strong> the stress amplitude σ 0 depends on<br />
the frequency ω. By an identity <strong>of</strong> trigonometry, we can rewrite (3.11) as<br />
σ(t) = σ 0 cos(δ) sin(ωt) + σ 0 sin(δ) cos(ωt). (3.12)<br />
Thus the stress is the sum <strong>of</strong> an in-phase response <strong>and</strong> out-<strong>of</strong>-phase response.<br />
We consider the energy loss <strong>for</strong> a linear viscoelastic material such as described by<br />
the stress (3.11) in response to the strain input (3.10). Let l be the length <strong>of</strong> a rod with<br />
cross sectional area a. When the solid is strained sinusoidally, according to (3.10), the<br />
solid elongates as<br />
∆l(t) = lε 0 sin(ωt).<br />
By (3.12), the <strong>for</strong>ce on the rod is<br />
F(t) = aσ(t) = aσ 0 cos(δ) sin(ωt) + aσ 0 sin(δ) cos(ωt).<br />
During a time interval dt, the solid elongates by d∆l, <strong>and</strong> the work done on the rod is<br />
In one full cycle the work done is<br />
∫ 2π<br />
ω<br />
W =alε 0 σ 0 ω cos(δ)<br />
0<br />
=πalε 0 σ 0 sin(δ).<br />
F(t)d∆l = F(t) d∆l<br />
dt dt = lε 0ωF(t) cos(ωt)dt.<br />
∫ 2π<br />
ω<br />
sin(ωt) cos(ωt)dt + alε 0 σ 0 ω sin(δ)<br />
0<br />
cos(ωt) cos(ωt)dt
