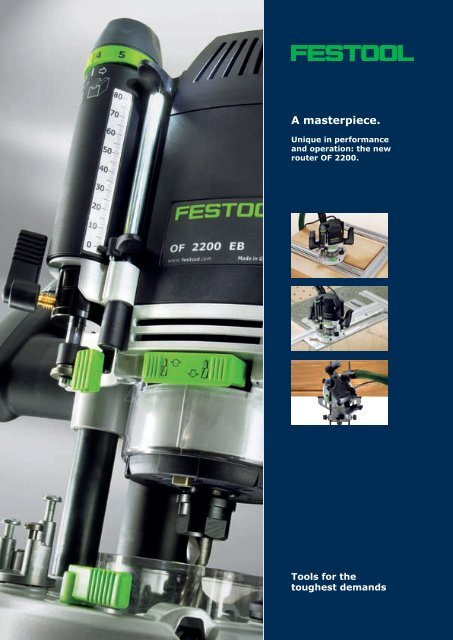

A masterpiece.<br />
Unique in performance<br />
and operation: the new<br />
router OF 2200.<br />
Tools for the<br />
toughest demands
2<br />
<strong>The</strong> new router OF 2200.<br />
A tool that shines<br />
in all areas.<br />
<strong>The</strong> router OF 2200 is the new masterpiece from Festool. It<br />
impresses with its powerful drive, perfect technical equipment,<br />
ideal ergonomics and top precision. Added to this is an unbe-<br />
lievable low-end torque: 2200 Watts are sufficient for it to cut<br />
through the hardest of material without jamming or tearing.<br />
<strong>The</strong> router OF 2200 thus sets new standards in all areas –<br />
simply a genuine masterpiece. But you have to experience this<br />
yourself.
4<br />
A quantum leap in technology, reliability and ergonomics.<br />
A tool that can do everything.<br />
More powerful, easier to use, more comfortable and safer –<br />
the OF 2200 offers the most powerful low-end torque, highest<br />
precision and top ergonomic comfort. No matter what your<br />
task is – with the OF 2200, you have the solution in your hand.<br />
After all, nothing is impossible!<br />
IPT Interactive Product Tour<br />
Experience the new router OF 2200<br />
in action!<br />
Festool routers.<br />
For perfect results, Festool<br />
offers you over 160 router bits<br />
in HS and HW quality for<br />
different shank diameters.<br />
You want to see more? In that case the detailed application<br />
DVD-ROM with numerous practical examples is just what<br />
you need! Simply request it with the enclosed card.<br />
Or view online and place your order: www.festool.co.za.<br />
Faultless precision.<br />
Once the routing height is set, the<br />
router can be clamped to both<br />
guide columns at the same time<br />
with only one clamping handle.<br />
This double column clamping<br />
system guarantees accurate<br />
routing results.<br />
Convenient router bit change.<br />
<strong>The</strong> spindle stop with rocker and<br />
ratchet technique without spanner<br />
conversion ensures fast and safe<br />
router bit change.<br />
Profile cutter quickly adapted.<br />
By coupling the base plate and<br />
motor unit, you can move the<br />
profile cutter with the fine<br />
adjustment quickly into the ideal<br />
position.<br />
Exact fine adjustment.<br />
Cutting depth with an accuracy of<br />
up to 1/10 mm thanks to a depth<br />
setting free of clearance with a<br />
zero function. Softgrip and drag<br />
indicator are arranged ergonomically.<br />
Corrosion-free columns.<br />
<strong>The</strong> coating protects the<br />
guide columns against<br />
corrosion.
Tool-free change.<br />
Change the copying ring,<br />
chip catcher and base runner<br />
using FastFix: simply unlock,<br />
change, click in. Centring is<br />
automatic.<br />
Powerful low-speed torque.<br />
<strong>The</strong> electronic motor control uses<br />
the 2200 Watts to produce an<br />
impressive low-end torque<br />
performance. <strong>The</strong> three-fold<br />
mounted armature shaft guarantees<br />
low-vibration routing. For<br />
example, in ash with a 30-mm<br />
router bit dia. and 30 mm routing<br />
depth.<br />
First-class ergonomics.<br />
An ergonomic working position<br />
when working with the side and<br />
guide stop is possible thanks to a<br />
guide rod support offset by 30°.<br />
Systematic cleanliness.<br />
<strong>The</strong> extraction ring, chip catcher<br />
and the exhaust adapter, which<br />
can be rotated 45°, make an<br />
extraction performance of up to<br />
99 % possible when routing<br />
edges.<br />
80 mm routing stroke.<br />
Impressive 80 mm routing<br />
stroke for more options and<br />
safety.<br />
5
6<br />
<strong>The</strong> OF 2200 unites power and ergonomics.<br />
A tool that goes full speed ahead.<br />
<strong>The</strong> new router OF 2200 is truly amazing. Its unbelievable<br />
power is best demonstrated when working on large workpieces<br />
and hard material. <strong>The</strong> optimised size-weight ratio allows you<br />
to control the new router OF 2200 even at full power. <strong>The</strong> firm<br />
support on the workpiece also guarantees precise results and<br />
ensures ergonomic and safe work.
30° for easier guidance<br />
When routing with the side stop or the guide rail, the guide<br />
rods of the OF 2200 are offset by 30°. This means that the<br />
working position and advance direction are perfectly aligned.<br />
A lot easier in difficult material and for long periods of routing.<br />
Use of the side stop.<br />
Easily secured: the side and guide stop<br />
Clamping of the two guide rods to the base plate and<br />
the stop requires only one clamping screw - real time<br />
saving. <strong>The</strong> ergonomically aligned stops also optimise<br />
the application pressure on the workpiece.<br />
Control elements within reach<br />
<strong>The</strong> important control elements such as double column<br />
clamp, On-Off switch and the extraction ring trigger can be<br />
operated conveniently – without having to let go of the<br />
router. This means that both hands remain on the machine<br />
during the work operation. This is comfortable and increases<br />
safety.<br />
1.<br />
Everything under<br />
control:<br />
3.<br />
2.<br />
1. Double column clamp<br />
Simply turn to lock the routing<br />
height at both guide columns.<br />
<strong>The</strong> router does not twist even if<br />
strong forces are applied.<br />
2. On-Off switch<br />
Both hands remain firmly on the<br />
router when switching on or off –<br />
for more safety.<br />
3. Extraction ring trigger<br />
Both hands remain on the router<br />
when the extraction ring is<br />
triggered.<br />
7
8<br />
<strong>The</strong> OF 2200 offers an even greater working depth.<br />
A tool with the right depth range.<br />
With its extremely large routing stroke of 80 millimetres, the<br />
OF 2200 guarantees an impressive routing depth. This is a<br />
particular advantage when you are using templates. And this<br />
is precisely why the new router is at home in window, con-<br />
servatory, stair and interior fitting as well as in mineral mate-<br />
rial processing.
Safely reaching the depths Versatile work<br />
A great advantage of the new OF 2200 is the 80 mm routing<br />
stroke: the collet is up to 10 mm above the base plate and the<br />
cutters are safely clamped even with thick materials.<br />
Collet up to<br />
10 mm above<br />
the base plate<br />
Routing<br />
stroke up<br />
to 80 mm<br />
<strong>The</strong> projecting collet provides ideal support for the cutters – especially<br />
when you are using routing templates in conjunction with thick<br />
materials.<br />
When cutting grooves on narrow supports, the router cuts precisely<br />
without tilting thanks to the routing aid *.<br />
* System accessories available separately.<br />
<strong>The</strong> new router OF 2200 also offers you many options for<br />
routing with templates. You can use the multiple routing<br />
template, routing aids and worktop routing templates without<br />
any problems.<br />
<strong>The</strong> worktop routing template can be used to produce exact corner and<br />
panel connections in a short time.<br />
<strong>The</strong> multiple routing template with extension profiles * can be used to<br />
effortlessly cut circles and segmental arches.<br />
9
10<br />
Details for precise, tidy work.<br />
Fast and accurate profile cutter setting Work in a clean environment<br />
A masterpiece, also with regard to fine adjustment: By cou-<br />
pling the base plate and motor unit, you can now move the<br />
base plate up or down in increments of 1/10 mm. This allows<br />
you to adapt the profile cutter more easily and exactly to your<br />
workpiece.<br />
Fine adjustment<br />
in 1/10 mm<br />
increments<br />
Coupling of base plate<br />
and motor unit<br />
<strong>The</strong> new fast adjustment for profile cutters supplements and optimises<br />
the fine adjustment using the well-known zero function.<br />
Optimised dust extraction is indispensable if fine wood dust is<br />
produced. This is why a new extraction concept with a lowera-<br />
ble extraction ring was developed for the OF 2200. This guar-<br />
antees an extraction performance of up to 99 %, even when<br />
routing edges.<br />
Extraction of the routing chips is good for your health but it should still<br />
not hamper your work. <strong>The</strong> hose system has therefore been optimised<br />
by providing an exhaust nozzle that can be rotated up to 45°.<br />
<strong>The</strong> new extraction concept of the OF 2200:<br />
Exhaust nozzle can<br />
be rotated 45°<br />
Extraction ring can<br />
be drained<br />
Chip catcher for<br />
extraction at edges<br />
<strong>The</strong> extraction ring can be pushed upwards for a perfect view of the<br />
router and scribe mark. When the extraction ring is lowered, a closed<br />
chip space is created when the cutter plunges into the material, which<br />
prevents dust from getting through.
From the OF 2200 to the bench-mounted router<br />
TF 2200.<br />
A tool with real team spirit.<br />
In conjunction with the CMS Compact Module System basic unit,<br />
the new router becomes the powerful bench-mounted router<br />
TF 2200: ideal for flexible and efficient processing of large work-<br />
pieces and profiles. Height adjustment of the router is carried<br />
out very simply from above with the help of a crank.<br />
<strong>The</strong> routing guard and the double extraction connections guaran-<br />
tee clean work on the bench as well. Furthermore, you can ex-<br />
change the router module for other CMS modules as required:<br />
for sawing or sanding.<br />
Applications of the bench-mounted router TF 2200<br />
• All kinds of routing work:<br />
Rebates, round edges, routing radii and shapes<br />
• Routing shapes and radii at ball bearing guide<br />
• Jointing work at the stop<br />
• For large radii and profiles<br />
<strong>The</strong> routing guard guarantees perfect extraction and<br />
good view of the routing position. It is included in the<br />
TF 2200 set.<br />
11
12<br />
<strong>The</strong> Accessories Systainer for the OF 2200.<br />
A tool that offers more flexibility.<br />
Together with the Accessories Systainer, the OF 2200<br />
becomes a flexible, complete system. It means that you<br />
always have the accessories necessary for the widest variety<br />
of applications at your fingertips. Thanks to the tool-free<br />
base runner and copying ring change, you can adjust quickly<br />
and efficiently to the various tasks.<br />
Base runner dia. 36 mm:<br />
For copying rings with diameters up to 30 mm, in particular,<br />
this base runner is perfectly suitable for use on edges with<br />
small router bits. It prevents tipping when routing around<br />
corners.<br />
Base runner dia. 36 mm with extraction opening:<br />
For copying rings with diameters up to 30 mm, in particular,<br />
this base runner is also fitted with extraction openings for<br />
upward extraction of the chips. For safe and clean routing.
Base runner with wide support:<br />
Provides increased safety because it reduces the risk of tipping<br />
when routing around corners and is ideal for safe guidance of<br />
the OF 2200 on edges.<br />
Guide stop set with base runner:<br />
All this is included in the<br />
Accessories Systainer SYS 2:<br />
• 3 base runners<br />
• 4 copying rings dia. 17, 24,<br />
27, 40 mm<br />
• 1 guide stop set with base<br />
runner<br />
• 1 side stop<br />
•<br />
2 guide bars<br />
Ideal for long sections – then it‘s really straight. Guide stop<br />
with 1/10 mm exact fine adjustment for the guide rails FS/2.<br />
<strong>The</strong> base runner with height adjustment in relation to the<br />
guide rail guarantees a steady base for the router.<br />
13
14<br />
Powerful in action, easy to handle.<br />
Router OF 2200<br />
Applications<br />
• Rebating, grooving and profiling<br />
• Routing large cutouts, circles and arcs with the multi-routing system<br />
MFS<br />
• Creating worktops corner joints with the worktop system APS<br />
• Routing seals and espagnolettes in windows and doors<br />
• Flush trimming, making cutouts, grooving, profiling of mineral material<br />
• Creation of string-boards in hardwood or softwood<br />
• Stationary routing with the bench-mounted router TF 2200 up to<br />
router bit dia. 60 mm<br />
Features<br />
• Top power development and fully variable speed for hard materials<br />
and increased material thicknesses<br />
• Precise work with little effort thanks to a guide bar support offset<br />
by 30°<br />
• Tool-free copying ring and base-runner change<br />
• Fast, convenient router-bit change with rocker and ratchet principle<br />
• Greater precision through extreme torsional rigidity thanks to double<br />
guide column clamp<br />
• Simple and exact routing depth setting to 1/10 mm<br />
• Fast profile cutter adjustment through coupleable/decoupleable base<br />
plate<br />
• Dust extraction of up to 99 % during edge routing through adjustable<br />
extraction ring and chip catcher<br />
Technical data<br />
Power consumption<br />
Plunge depth<br />
Idling speed<br />
Max. cutter diameter<br />
Fine adjustment<br />
Connection for dust extraction<br />
Weight<br />
1<br />
Version<br />
Router OF 2200<br />
EB-Plus<br />
2 Router OF 2200<br />
EB set<br />
Scope of delivery<br />
2200 W<br />
80 mm<br />
10000–22000 rpm<br />
89 mm<br />
1/10 mm<br />
Ø 36 mm (27 mm)<br />
7,8 kg<br />
Router OF 2200 EB, chip catcher, clamping<br />
collet dia. 8 mm, clamping collet dia. 12 mm,<br />
copying ring dia. 30 mm, operating tool, in<br />
SYSTAINER SYS 4<br />
Router OF 2200 scope of delivery as described<br />
above and Accessories Systainer SYS 2<br />
Order no.<br />
574260<br />
574298<br />
More versatile in the set: the new<br />
OF 2200 and the Accessories Systainer.<br />
3<br />
4<br />
5<br />
6<br />
7<br />
8<br />
9<br />
Accessories Systainer version<br />
Accessories<br />
Systainer<br />
ZS-OF 2200,<br />
metric units<br />
Elements<br />
Base runner<br />
LA-OF 2200<br />
D36 CT<br />
Base runner<br />
LA-OF 2200<br />
D36<br />
Base runner<br />
with wide<br />
support<br />
AFB-OF 2200<br />
Side stop<br />
SA-OF 2200<br />
Guide stop set<br />
FS-OF 2200<br />
Guide rod<br />
ST-OF 2200/2<br />
Bench-mounted router TF 2200<br />
Technical data<br />
Power consumption<br />
Idling speed<br />
Max. cutter diameter<br />
Fine adjustment<br />
Dimensions of module mounting<br />
Dust extraction connector<br />
Total weight<br />
Version<br />
10 Bench-<br />
mounted<br />
router<br />
TF 2200<br />
EB set<br />
Scope of delivery<br />
1x side stop SA-OF 2200, guide stop set FS-OF<br />
2200, base runner LA-OF 2200 dia. 36 CT, base<br />
runner LA-OF 2200 dia. 36, base runner with wide<br />
support AFB-OF 2200, copying ring dia. 17, 24, 27,<br />
40 mm, 2 guide bars, in SYSTAINER SYS 2<br />
Explanations/Dimensions<br />
Specially for copying rings up to 30 mm dia. With<br />
extraction openings for extracting chips from above.<br />
Reduces the size of the base runner opening. Toolfree<br />
change possible<br />
Ideal for work on edges, with 36 mm dia. base<br />
runner opening. No tipping when routing around<br />
corners. Tool-free change possible<br />
Prevents tipping and is ideal for safe guidance of the<br />
OF 2200 on edges. Tool-free change possible<br />
For example, for rebating or grooving. With adaptable<br />
plastic sliding jaws, fine adjustment accurate<br />
to 1/10 mm and extractor hood. (please order guide<br />
bars separately)<br />
with 1/10 mm exact fine adjustment for the guide<br />
rails FS/2. <strong>The</strong> base runner with height adjustment<br />
in relation to the guide rail guarantees a steady base<br />
for the router. (please order guide bars separately)<br />
For use of the side stop and guide stop set. Length<br />
400 mm, included in Accessories Systainer ZS-OF<br />
2200<br />
Scope of delivery<br />
2200 W<br />
10000–22000 rpm<br />
60 mm<br />
1/10 mm<br />
578 x 320 mm<br />
dia. 27/36 mm<br />
29.4 kg<br />
Router OF 2200 EB-Plus, CMS basic unit with foldaway<br />
legs, module mounting, router stop, routing<br />
guard, press-down fixture, assembly lugs, clamping<br />
collet dia. 8 mm, clamping collet dia. 12 mm,<br />
copying ring dia. 30 mm, top extractor hood, chip<br />
catcher, operating tool<br />
Order no.<br />
495248<br />
Order no.<br />
494675<br />
494677<br />
494682<br />
494680<br />
494681<br />
495247<br />
Order no.<br />
570262
System overview and accessories<br />
4<br />
6<br />
7<br />
8<br />
System accessories<br />
11<br />
12<br />
13<br />
14<br />
15<br />
16<br />
17<br />
18<br />
19<br />
20<br />
21<br />
22<br />
23<br />
24<br />
25<br />
26<br />
27<br />
28<br />
29<br />
30<br />
31<br />
32<br />
33<br />
3 1 – 2<br />
10<br />
5<br />
9<br />
Collet SZ-D 6.0/OF1400-OF2200<br />
Collet SZ-D 8.0/OF 1400-OF 2200<br />
Collet SZ-D 10.0/OF 1400-OF 2200<br />
Collet SZ-D 12.0/OF 1400-OF 2200<br />
Collet SZ-D 6.35/OF 1400-OF 2200<br />
Collet SZ-D 9.53/OF 1400-OF 2200<br />
Collet SZ-D 12.7/OF 1400-OF 2200<br />
Copying ring KR-D 17.0/OF 2200<br />
Copying ring KR-D 24.0/OF 2200<br />
Copying ring KR-D 27.0/OF 2200<br />
Copying ring KR-D 30.0/OF 2200<br />
Copying ring KR-D 40.0/OF 2200<br />
Chip catcher KSF-OF 2200<br />
Routing template MFS 400<br />
Routing template MFS 700<br />
Extension profile MFS-VP 200<br />
Extension profile MFS-VP 400<br />
Extension profile MFS-VP 700<br />
Extension profile MFS-VP 1000<br />
Extension profile MFS-VP 2000<br />
Routing aid OF-FH 2200<br />
Worktop template APS 900<br />
Mobile dust extractor CTM 33 E-SG<br />
34<br />
Router<br />
11 – 17<br />
18 – 22<br />
23<br />
34<br />
Explanations/Dimensions<br />
Dust-optimised collet with union nut<br />
24<br />
25<br />
26 – 30<br />
Attachable without tools; can be combined with different base runners<br />
Attachable without tools and 360° rotatable chip catcher. For optimal extraction when routing<br />
edges. Contained in the scope of delivery of the OF 2200 (spare part)<br />
For routing cut-outs or circles with minimum effort. For routers with copying ring retainer.<br />
For cut-outs up to 300 x 100 mm and circles up to dia. 600 mm<br />
For routing cut-outs or circles with minimum effort. For routers with copying ring retainer.<br />
For cut-outs up to 600 x 300 mm and circles up to dia. 1200 mm<br />
For extension of the multiple router template MFS 400 and MFS 700, profile 200 mm<br />
Profile 400 mm<br />
Profile 700 mm<br />
Profile 1000 mm<br />
Profile 2000 mm (without scaling)<br />
For example, for cutting grooves for door seals or safety door seals<br />
For corner and panel connections up to 600 mm or by shifting the routing template on the profile up<br />
to 900 mm. Routing bit dia. 14 mm and copying ring dia. 30 mm required<br />
For wood dust and other dust with max. workplace concentration value > 0.1 mg/cm 3 , 1 filter bag<br />
fitted, suction hose D 27x3.5 m-AS, end cover for extraction nozzle, container/filter bag volume<br />
max. 33/30 l, dimensions (LxWxH) 625 x 380 x 550 mm, weight 14.5 kg, in a box. Further models<br />
are available from your specialist dealer, in the main Festool catalogue or on the Festool homepage.<br />
Festool offers you an extensive range of over 160 router bits. In HS and HW quality for different<br />
shank diameters. More information is available from your specialist dealer, in the main Festool<br />
catalogue or on the Festool homepage.<br />
31<br />
32<br />
33<br />
Order no.<br />
494459<br />
494460<br />
494461<br />
494462<br />
494463<br />
494464<br />
494465<br />
494622<br />
494623<br />
494624<br />
494625<br />
494626<br />
494670<br />
492610<br />
492611<br />
492722<br />
492723<br />
492724<br />
492725<br />
492726<br />
495246<br />
492727<br />
583460<br />
15
www.festool.co.za<br />
Head Office South Africa<br />
TTS Tooltechnic Systems (Pty) Ltd<br />
22-26 Electron Avenue<br />
Isando 1600<br />
Phone 0027-11-570-28 80<br />
Fax 0027-11-392-56 25<br />
E-mail: RowenaD@festool.co.za<br />
www.festool.com<br />
Festool GmbH<br />
Export Department<br />
Wertstraße 20<br />
D-73240 Wendlingen<br />
Phone (+49) 70 24/804-640<br />
Fax (+49) 70 24/804-724<br />
E-mail: ebg@tts-festool.com<br />
<strong>New</strong>s and promotions<br />
Online product catalogue<br />
Dealer search<br />
Service<br />
Application examples<br />
3D animation<br />
Your link to more information...<br />
On the Festool site you can find<br />
information about<br />
• <strong>New</strong> products<br />
• Helpful application examples<br />
• Our comprehensive service offer<br />
• <strong>The</strong> complete product range<br />
• Product features in detail<br />
and all of this at your leisure.<br />
Three Years warranty –<br />
that means three years security<br />
www.festool.co.za<br />
09/2007<br />
Festool grants a 2 year warranty from the<br />
date of purchase, as long as the tool has<br />
been used correctly. This warranty is<br />
Wendlingen,<br />
automatically extended by a further year,<br />
73240<br />
provided that the warranty form with every -<br />
new tool is completed correctly and<br />
DE<br />
returned within 30 days of the date of<br />
KG,<br />
purchase.<br />
Co. & AG<br />
Make a contribution yourself – support the<br />
Systems<br />
WWF together with Festool!<br />
Our most important contribution to preser- Tooltechnic<br />
ving our environment is the quality of our<br />
TTS for<br />
products, which are characterised by their<br />
durability and positive eco-features such as<br />
Created<br />
recyclability and environmental compatibility.<br />
By purchasing one of the promotional<br />
products, you are supporting our collaborati-<br />
non-binding. are<br />
on with the WWF and receive a WWF panda<br />
keyring pendant as a thankyou gift.<br />
illustrations All<br />
© 1986 Panda symbol WWF – World Wide Fund For Nature<br />
(Formerly World Wildlife Fund)<br />
® „WWF“ and „living planet“ are WWF Registered Trademarks errors. and<br />
www.festool.com/wwf<br />
Art-Nr. 59440<br />
alterations to<br />
Dealer Subject
