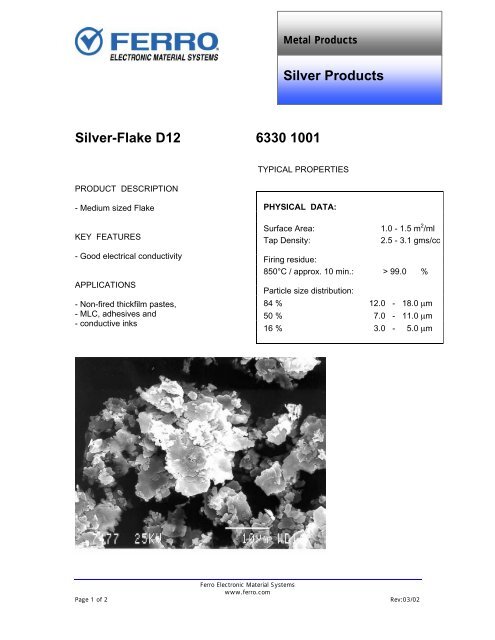

Metal <strong>Products</strong><br />
<strong>Silver</strong>-<strong>Flake</strong> <strong>D12</strong> <strong>6330</strong> <strong>1001</strong><br />
PRODUCT DESCRIPTION<br />
- Medium sized <strong>Flake</strong><br />
KEY FEATURES<br />
- Good electrical conductivity<br />
APPLICATIONS<br />
- Non-fired thickfilm pastes,<br />
- MLC, adhesives and<br />
- conductive inks<br />
<strong>Silver</strong> <strong>Products</strong><br />
TYPICAL PROPERTIES<br />
PHYSICAL DATA:<br />
Surface Area: 1.0 - 1.5 m 2 /ml<br />
Tap Density: 2.5 - 3.1 gms/cc<br />
Firing residue:<br />
850°C / approx. 10 min.: > 99.0 %<br />
Particle size distribution:<br />
84 % 12.0 - 18.0 µm<br />
50 % 7.0 - 11.0 µm<br />
16 % 3.0 - 5.0 µm<br />
<strong>Ferro</strong> Electronic Material Systems<br />
www.ferro.com<br />
Page 1 of 2 Rev:03/02
For more technical information please contact Michael Marx from our applied technology<br />
team in our EM-department:<br />
Phone: 49 – 61 81/ 59 – 40 70<br />
Fax: 49 – 61 81/ 59 – 40 02<br />
<strong>Ferro</strong> Corporation<br />
Electronic Material Systems<br />
3900 So. Clinton Ave.<br />
So. Plainfield, NJ 07080<br />
USA<br />
(908) 561-1100<br />
FAX: (908) 756-7176<br />
<strong>Ferro</strong> Corporation<br />
Rodenbacher Chaussee 4<br />
P. O. Box 1351<br />
D-63403 Hanau-Wolfgang<br />
GERMANY<br />
49.6181.59.3090<br />
FAX: 49.6181.59.3085<br />
<strong>Ferro</strong> Corporation<br />
Shinjuku Monolith 12F<br />
2-3-1 Nishi-Shinjuku<br />
Shinjuku-Ku Tokyo 163-09<br />
JAPAN<br />
81.3.5323.7322<br />
FAX: 81.3.5323.7396<br />
DIISCLAIMER: Reasonable care has been taken in the preparation of this information, but FERRO EXTENDS NO WARRANTIES, MAKES NO REPRESENTATIONS<br />
AND ASSUMES NO RESPONSIBILITY AS TO ACCURACY OR SUITABILITY OF THIS INFORMATION OF THIS PRODUCT FOR ANY PURCHASER’S OR USER’S USE<br />
OR FOR ANY CONSEQUENCE OF ITS USE. FERRO DISCLAIMS ANY WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR ANY PARTICULAR<br />
USE. All statements, technical information and recommendations contained herein are based on Seller’s or Manufacturer’s test and the test of others, and are<br />
believed to be accurate, but no guarantee of accuracy is made. Judgment as to the suitability of information herein or the user’s purposes are necessarily the user’s<br />
responsibility. Users shall determine the suitability of the products for their own intended application.<br />
Users assume all risk of use or handling whether or not in accordance with any statements or recommendation of the seller or manufacturer, Liability, if any, is and<br />
shall be limited to the replacement of such quantity of material proved not to conform to specifications as set out in product specification. Statements concerning<br />
the possible use of these products are not intended as recommendation to use these products in infringement of any patent. No guarantee is made that any use of<br />
the products does not infringe third-party intellectual property or patent rights anywhere in the world.<br />
<strong>Ferro</strong> Electronic Material Systems<br />
www.ferro.com<br />
Page 2 of 2 Rev:04/04
