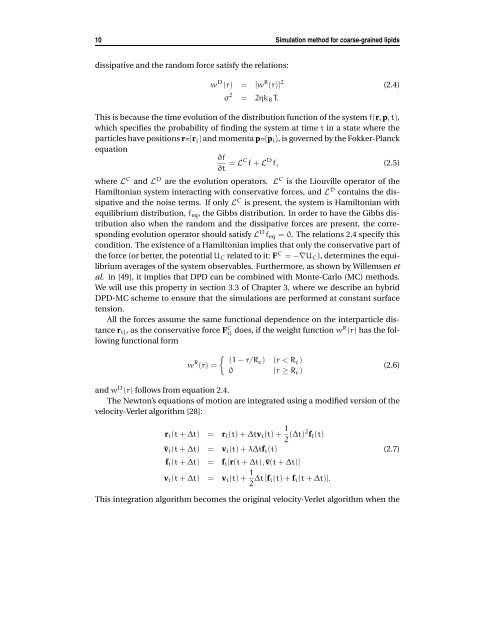

10 Simulation method for coarse-grained lipids dissipative and the random force satisfy the relations: w D (r) = [w R (r)] 2 σ 2 = 2ηkBT. (2.4) This is because the time evolution of the distribution function of the system f(r, p, t), which specifies the probability of finding the system at time t in a state where the particles have positions r={ri} and momenta p={pi}, is governed by the Fokker-Planck equation ∂f ∂t = LC f + L D f, (2.5) where L C and L D are the evolution operators. L C is the Liouville operator of the Hamiltonian system interacting with conservative forces, and L D contains the dissipative and the noise terms. If only L C is present, the system is Hamiltonian with equilibrium distribution, feq, the Gibbs distribution. In order to have the Gibbs distribution also when the random and the dissipative forces are present, the corresponding evolution operator should satisfy L D feq = 0. The relations 2.4 specify this condition. The existence of a Hamiltonian implies that only the conservative part of the force (or better, the potential UC related to it: F C = −∇UC), determines the equilibrium averages of the system observables. Furthermore, as shown by Willemsen et al. in [49], it implies that DPD can be combined with Monte-Carlo (MC) methods. We will use this property in section 3.3 of Chapter 3, where we describe an hybrid DPD-MC scheme to ensure that the simulations are performed at constant surface tension. All the forces assume the same functional dependence on the interparticle distance rij, as the conservative force F C ij does, if the weight function wR (r) has the following functional form w R (r) = (1 − r/Rc) (r < Rc) 0 (r ≥ Rc) (2.6) and w D (r) follows from equation 2.4. The Newton’s equations of motion are integrated using a modified version of the velocity-Verlet algorithm [28]: ri(t + ∆t) = ri(t) + ∆tvi(t) + 1 2 (∆t)2 fi(t) ˜vi(t + ∆t) = vi(t) + λ∆tfi(t) (2.7) fi(t + ∆t) = fi[r(t + ∆t), ˜v(t + ∆t)] vi(t + ∆t) = vi(t) + 1 2 ∆t [fi(t) + fi(t + ∆t)]. This integration algorithm becomes the original velocity-Verlet algorithm when the
2.1 Dissipative Particle Dynamics 11 force is independent of velocity and λ = 0.5. Since in DPD the force depends on the velocity, the iterative scheme of equation 2.7 is used, where ˜v is a prediction for the velocity. In practice λ is an empirical parameter which takes into account the fact that the underlying equations of DPD are stochastic differential equations [28]. Following Groot and Warren in [28] we choose the values λ = 0.65 and σ = 3 which are a compromise between fast simulations (large timestep ∆t) and stability of the system without large deviations from the imposed temperature. Reduced and physical units Usually within the DPD approach one makes use of reduced units for the mass, length and energy. [24, 28]. The unit of length is defined by the cut-off radius Rc, the unit of mass by the mass m of a DPD bead (where all the beads in the system have equal mass), and the unit of energy by kBT. From these, the unit of time τ follows as τ = Rc m/kBT. (2.8) In the following, unless otherwise stated, all the reported quantities will be expressed in these reduced units. An important—and non trivial—aspect in mesoscopic simulations is the mapping of the above mentioned units onto physical units. The level of coarse-graining, i.e. the number Nm of molecules represented by a DPD bead, can be seen as the renormalization factor for this mapping [24]. As an example we describe below the procedure to derive the physical unit of length. If a DPD bead corresponds to Nm water molecules, then a cube of volume R 3 c represents ρNm water molecules, where ρ is the number density, i.e. the number of DPD beads per cubic Rc. Considering that a water molecule has approximately a volume of 30 ˚A 3 , we then have R 3 c = 30ρNm [˚A 3 ]. (2.9) Taking a bead density of ρ = 3 [28], from equation 2.9 we have Rc = 4.4814(Nm) 1/3 [˚A]. (2.10) For instance, if Nm = 1 then Rc = 4.4814 ˚A, and if Nm = 3 then Rc = 6.4633 ˚A. Different mapping criteria have been used to derive the physical unit of time, all based on the mapping of diffusion constants for the system components. For example, Groot and Rabone [24] used a mapping based on the comparison of the experimental value of the self-diffusion constant of water and the corresponding value computed in DPD simulations, while Groot [46] used the diffusion constant of a surfactant micelle. In both references a value of the integration timestep (see equation 2.7) of ∆t = 0.06τ was taken, which gives ∆t ≈5ps or ∆t ≈25ps depending on which diffusion constant is considered. Both values show that DPD simulations allow for
