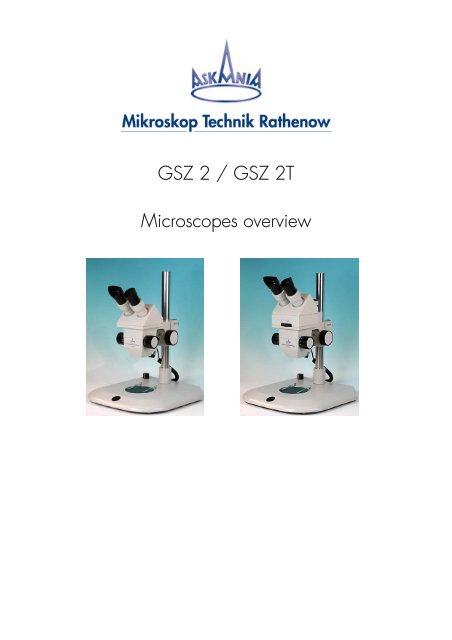

GSZ 2 / GSZ 2T<br />
<strong>Microscopes</strong> <strong>overview</strong>
GSZ 2<br />
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------<br />
Greenough – Stereo – Zoom – Microscope<br />
The GSZ 2 is a further development of the tried and tested<br />
stereo zoom microscope GSZ. It is a Greenough device -<br />
in other words, it has two objectives, mounted together as<br />
a pair, with an 11° angle between them. They stand out in<br />
terms of their high optical performance, for example large,<br />
even fields of vision, without color distortion.<br />
Examples for different equipment/variants:<br />
GSZ 2 with LED incident light illumination and<br />
2x attachment lens<br />
GSZ 2 with LED-ringlight illumination<br />
and column stand with base<br />
GSZ 2 with dark field device<br />
GSZ 2T Cut model<br />
2
GSZ 2T<br />
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------<br />
Greenough – Stereo – Zoom – Microscope, Trinocular for Photo and TV<br />
The compact construction, the large specimen field and<br />
the excellent sharp image reproduction of the Zoom stereo<br />
microscope GSZ 2T makes it the ideal instrument for both<br />
control and monitoring operations in industry as well as for<br />
structural inspection and preparations in teaching,<br />
research and recreation.<br />
The trinocular output which uses 100% of the available<br />
light offers the possibility of photographic and video<br />
image documentation. The built-in iris diaphragm helps<br />
regulate the depth of focus or light intensity. The infinitely<br />
variable magnification adjustment also offers eight set<br />
stops so that reproducible measurements can be carried<br />
out.<br />
Examples for different equipment/variants:<br />
GSZ 2T for digital microphotography<br />
GSZ 2T with LED-ringlight illumination<br />
and column stand with base<br />
GSZ 2T with D-SLR camera<br />
GSZ 2T Cut model<br />
3
GSZ 2 - GSZ 2T<br />
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------<br />
Applications<br />
The GSZ and the GSZ 2T is multiple-purpose microscope, which, because of its upright,<br />
true-to-side images and stereoscopic observation capability, is suited for all users, who wish<br />
to observe their object in three dimensions, by low magnifications or to work under the<br />
microscope.<br />
Industry:<br />
- Assembling<br />
- Quality control<br />
- Adjustment of parts<br />
- Taxidermy<br />
Education & Research:<br />
- Microtechnology<br />
- Electronics<br />
- Mineralogy<br />
- Biology and Medicine<br />
Hobby microscopy:<br />
- Biology<br />
- Phytology<br />
- Ecology<br />
- Natural sciences<br />
Technical Data<br />
Zoom Factor<br />
Working distance (mm)<br />
Magnification<br />
Object field (mm)<br />
Interpupillary distance (mm)<br />
Adjustment ametropia<br />
Weight (kg)<br />
Dimensions W x D x H (mm)<br />
Photo/ TV Exit<br />
GSZ 2<br />
5:1<br />
210 ... 26,5<br />
1,6x ... 200x<br />
100 ... 1<br />
52 ... 78<br />
+/-5 dpt.<br />
4<br />
180 x 235 x 305<br />
not available<br />
GSZ 2T<br />
5:1<br />
210 ... 26,5<br />
2,0x ... 250x<br />
80 ... 0,8<br />
52 ... 78<br />
+/-5 dpt.<br />
5,2<br />
180 x 235 x 335<br />
available<br />
4
Magnification<br />
Table of magnification GSZ 2<br />
Eyepiece<br />
supplementary lens<br />
Working distance 6,3 x/25 10x/20 10x/25 12,5x/20 16x/12,5 25x/8<br />
0,32x 1,6x ... 8x 2,5x ... 12,5x 2,5x ... 12,5x 3,2x ... 16x 4x ... 20x 6,3x ... 32x<br />
210mm 100 ... 20 80 ... 16 100 ... 20 80 ... 16 50 ... 10 32 ... 6,3<br />
0,5x 2,5x ... 12,5x 4x ... 20x 4x ... 20x 5x ... 25x 6,3x ... 32x 10x ... 50x<br />
132mm 63 ... 12,5 50 ... 10 63 ... 12,5 50 ... 10 32 ... 6,3 20 ... 4<br />
0,63x 3,2x ... 16x 5x ... 25x 5x ... 25x 6,3x ... 32x 8x ... 40x 12,5x ... 63x<br />
101mm 50 ... 10 40 ... 8 50 ... 10 40 ... 8 25 ... 5 16 ... 3,2<br />
*<br />
--- 5x ... 25x 8x ... 40x 8x ... 40x 10x ... 50x 12,5x ... 63x 20x ... 100x<br />
71mm 32 ... 6,3 25 ... 5 32 ... 6,3 25 ... 5 16 ... 3,2 10 ... 2<br />
2x 10x ... 50x 16x ... 80x 16x ... 80x 20x ... 100x 25x ... 125x 40x ... 200x<br />
26mm 16 ... 3,2 12,5 ... 2,5 16 ... 3,2 12,5 ... 2,5 8 ... 1,6 5 ... 1<br />
*Standard Equipment*<br />
5
Magnification<br />
Table of magnification GSZ 2T<br />
Eyepiece length<br />
Supplementary lens x width<br />
Working distance 6,3 x/25 10x/20 10x/25 12,5x/20 16x/12,5 25x/8 (mm)<br />
0,32x 2x ... 10x 3,2x ... 16x 3,2x ... 16x 4x ...20x 5x ... 25x 6,3x ... 32x 32 x 24<br />
:<br />
210mm 80 ... 16 63 ... 12,5 80 ... 16 63 ... 12,5 40 ... 8 25 ... 5 6,4 x 4,8<br />
0,5x 3,2x ... 16x 5x ... 25x 5x ... 25x 6,3x ... 32x 8x ... 40x 12,5x ... 63x 20 x 15<br />
:<br />
132mm 50 ... 10 40 ... 8 50 ... 10 40 ... 8 25 ... 5 16 ... 3,2 4 x 3<br />
0,63x 4x ... 20x 6,3x ... 32x 6,3x ... 32x 8x ... 40x 10x ... 50x 16x ... 80x 16 x 12<br />
:<br />
101mm 40 ... 8 32 ... 6,3 40 ... 8 32 ... 6,3 20 ... 4 12,5 ... 2,5 3,2 x 2,4<br />
*<br />
---- 6,3x ... 32x 10x ... 50x 10x ... 50x 12,5x ... 63x 16x ... 80x 25x ... 125x 10 x 7,5<br />
:<br />
71mm 25 ... 5 20 ... 4 25 ... 5 20 ... 4 12,5 ... 2,5 8 ... 1,6 2 x 1,5<br />
2x 12,5x ... 64x 20x ... 100x 20x ... 100x 25x ... 125x 32x ... 160x 50x ... 250x 5 x 3,75<br />
:<br />
26mm 12,5 ... 2,5 10 ... 2 12,5 ... 2,5 10 ... 2 6,3 ... 2,5 4 ... 0,8 1 x 0,75<br />
*Standard Equipment*<br />
6
Sketches<br />
GSZ 2<br />
GSZ 2T<br />
9
