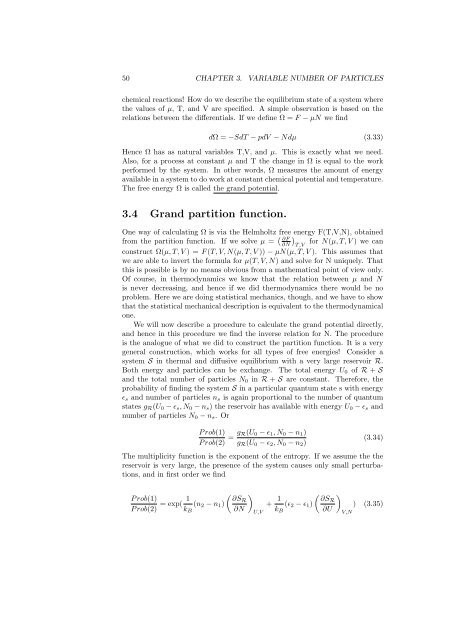

50 CHAPTER 3. VARIABLE NUMBER OF PARTICLES<br />
chemical reactions! How do we describe the equilibrium st<strong>at</strong>e of a system where<br />
the values of µ, T, and V are specified. A simple observ<strong>at</strong>ion is based on the<br />
rel<strong>at</strong>ions between the differentials. If we define Ω = F − µN we find<br />
dΩ = −SdT − pdV − Ndµ (3.33)<br />
Hence Ω has as n<strong>at</strong>ural variables T,V, and µ. This is exactly wh<strong>at</strong> we need.<br />
Also, for a process <strong>at</strong> constant µ and T the change in Ω is equal to the work<br />
performed by the system. In other words, Ω measures the amount of energy<br />
available in a system to do work <strong>at</strong> constant chemical potential and temper<strong>at</strong>ure.<br />
The free energy Ω is called the grand potential.<br />
3.4 Grand partition function.<br />
One way of calcul<strong>at</strong>ing Ω is via the Helmholtz free energy F(T,V,N), obtained<br />
from the partition function. If we solve µ = <br />
∂F<br />
∂N for N(µ, T, V ) we can<br />
T,V<br />
construct Ω(µ, T, V ) = F (T, V, N(µ, T, V )) − µN(µ, T, V ). This assumes th<strong>at</strong><br />
we are able to invert the formula for µ(T, V, N) and solve for N uniquely. Th<strong>at</strong><br />
this is possible is by no means obvious from a m<strong>at</strong>hem<strong>at</strong>ical point of view only.<br />
Of course, in thermodynamics we know th<strong>at</strong> the rel<strong>at</strong>ion between µ and N<br />
is never decreasing, and hence if we did thermodynamics there would be no<br />
problem. Here we are doing st<strong>at</strong>istical mechanics, though, and we have to show<br />
th<strong>at</strong> the st<strong>at</strong>istical mechanical description is equivalent to the thermodynamical<br />
one.<br />
We will now describe a procedure to calcul<strong>at</strong>e the grand potential directly,<br />
and hence in this procedure we find the inverse rel<strong>at</strong>ion for N. The procedure<br />
is the analogue of wh<strong>at</strong> we did to construct the partition function. It is a very<br />
general construction, which works for all types of free energies! Consider a<br />
system S in thermal and diffusive equilibrium with a very large reservoir R.<br />
Both energy and particles can be exchange. The total energy U0 of R + S<br />
and the total number of particles N0 in R + S are constant. Therefore, the<br />
probability of finding the system S in a particular quantum st<strong>at</strong>e s with energy<br />
ɛs and number of particles ns is again proportional to the number of quantum<br />
st<strong>at</strong>es gR(U0 − ɛs, N0 − ns) the reservoir has available with energy U0 − ɛs and<br />
number of particles N0 − ns. Or<br />
P rob(1)<br />
P rob(2) = gR(U0 − ɛ1, N0 − n1)<br />
gR(U0 − ɛ2, N0 − n2)<br />
(3.34)<br />
The multiplicity function is the exponent of the entropy. If we assume the the<br />
reservoir is very large, the presence of the system causes only small perturb<strong>at</strong>ions,<br />
and in first order we find<br />
P rob(1) 1<br />
= exp( (n2 − n1)<br />
P rob(2) kB<br />
<br />
∂SR<br />
+<br />
∂N U,V<br />
1<br />
(ɛ2 − ɛ1)<br />
kB<br />
<br />
∂SR<br />
) (3.35)<br />
∂U V,N
