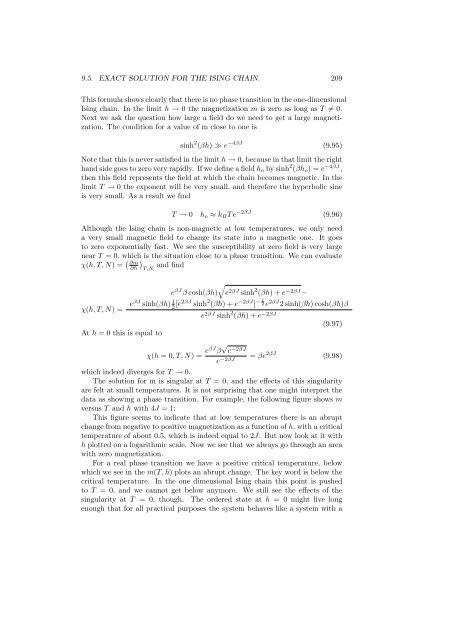

9.5. EXACT SOLUTION FOR THE ISING CHAIN. 209<br />
This formula shows clearly th<strong>at</strong> there is no phase transition in the one-dimensional<br />
Ising chain. In the limit h → 0 the magnetiz<strong>at</strong>ion m is zero as long as T = 0.<br />
Next we ask the question how large a field do we need to get a large magnetiz<strong>at</strong>ion.<br />
The condition for a value of m close to one is<br />
sinh 2 (βh) ≫ e −4βJ<br />
(9.95)<br />
Note th<strong>at</strong> this is never s<strong>at</strong>isfied in the limit h → 0, because in th<strong>at</strong> limit the right<br />
hand side goes to zero very rapidly. If we define a field ho by sinh 2 (βho) = e −4βJ ,<br />
then this field represents the field <strong>at</strong> which the chain becomes magnetic. In the<br />
limit T → 0 the exponent will be very small, and therefore the hyperbolic sine<br />
is very small. As a result we find<br />
T → 0 ho ≈ kBT e −2βJ<br />
(9.96)<br />
Although the Ising chain is non-magnetic <strong>at</strong> low temper<strong>at</strong>ures, we only need<br />
a very small magnetic field to change its st<strong>at</strong>e into a magnetic one. It goes<br />
to zero exponentially fast. We see the susceptibility <strong>at</strong> zero field is very large<br />
near T = 0, which is the situ<strong>at</strong>ion close to a phase transition. We can evalu<strong>at</strong>e<br />
χ(h, T, N) = <br />
∂m<br />
∂h and find<br />
χ(h, T, N) =<br />
T,N<br />
At h = 0 this is equal to<br />
eβJ <br />
β cosh(βh) e2βJ sinh 2 (βh) + e−2βJ −<br />
eβJ sinh(βh) 1<br />
2 [e2βJ sinh 2 (βh) + e−2βJ 1 − ] 2 e2βJ 2 sinh(βh) cosh(βh)β<br />
e2βJ sinh 2 (βh) + e−2βJ (9.97)<br />
χ(h = 0, T, N) = eβJ β √ e −2βJ<br />
e −2βJ<br />
= βe 2βJ<br />
(9.98)<br />
which indeed diverges for T → 0.<br />
The solution for m is singular <strong>at</strong> T = 0, and the effects of this singularity<br />
are felt <strong>at</strong> small temper<strong>at</strong>ures. It is not surprising th<strong>at</strong> one might interpret the<br />
d<strong>at</strong>a as showing a phase transition. For example, the following figure shows m<br />
versus T and h with 4J = 1:<br />
This figure seems to indic<strong>at</strong>e th<strong>at</strong> <strong>at</strong> low temper<strong>at</strong>ures there is an abrupt<br />
change from neg<strong>at</strong>ive to positive magnetiz<strong>at</strong>ion as a function of h, with a critical<br />
temper<strong>at</strong>ure of about 0.5, which is indeed equal to 2J. But now look <strong>at</strong> it with<br />
h plotted on a logarithmic scale. Now we see th<strong>at</strong> we always go through an area<br />
with zero magnetiz<strong>at</strong>ion.<br />
For a real phase transition we have a positive critical temper<strong>at</strong>ure, below<br />
which we see in the m(T, h) plots an abrupt change. The key word is below the<br />
critical temper<strong>at</strong>ure. In the one dimensional Ising chain this point is pushed<br />
to T = 0, and we cannot get below anymore. We still see the effects of the<br />
singularity <strong>at</strong> T = 0, though. The ordered st<strong>at</strong>e <strong>at</strong> h = 0 might live long<br />
enough th<strong>at</strong> for all practical purposes the system behaves like a system with a
