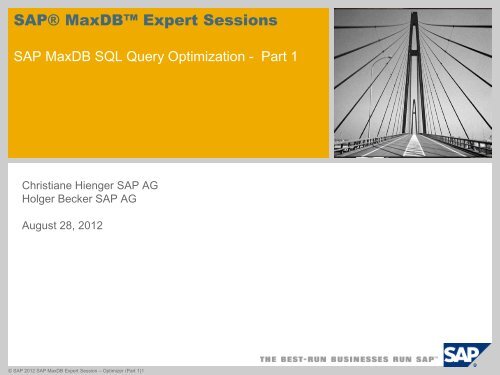

SAP® MaxDB Expert Sessions

SAP MaxDB SQL Query Optimization - Part 1

Christiane Hienger SAP AG

Holger Becker SAP AG

August 28, 2012

© SAP 2012 SAP MaxDB Expert Session – Optimizer (Part 1)1

Agenda

1. Introduction

2 . EXPLAIN

2.1. EXPLAIN

2.2. EXPLAIN QUERYREWRITE

3. Single Table Optimizer Strategies

© SAP 20102/MaxDB 7.8 Expert Session– Optimizer Part 1 /Page 2

After this presentation, you will be able to:

Use several EXPLAIN commands to analyze SQL queries

Understand and interpret the EXPLAIN output

Understand the usage of SQL strategies of the single table optimizer

© SAP 20102/MaxDB 7.8 Expert Session – Optimizer Part 1/Page 3

Goals of Optimization

Goal: Minimizing resource-consumption like

CPU-time

I/O-load

Memory

Disk space

SQL Commands affected by optimization

SELECT

UPDATE

DELETE

INSERT/SELECT

© SAP 2012 /MaxDB 7.8 Expert Session – Optimizer Part 1/Page 4

Cost-based Optimizer

Cost-based optimizer

Search strategy is determined via

– current column content (values)

– available indexes

– estimated count of (page) accesses

‚Lowest cost‘ strategy will be used.


Which condition will be evaluated ?

Single table SELECT

Column = value

Column value

Column BETWEEN value AND value

Column IN ( value, value, ... )

Column LIKE string value (including %,?,...)

Column = (ANY)

Column IN


Introduction into SQL Optimization

SELECT * FROM zztele WHERE STR = ‚Wexstr‘


Primary and Secondary keys (indexes)

Primary key

The primary key is stored in the data tree (clustered)

No separate tree for primary key !

Parts of the primary keys are used as separator in B*trees

The records are stored in primary key order

Secondary key (index)

Construction of a separate B*tree for the secondary key values

A secondary key does not contain physical addresses pointing to the base data but

logical addresses in terms of primary keys


Table Examples: ZZTELE

# of records: around 115,000

© SAP 2012 /MaxDB 7.8 Expert Session – Optimizer Part 1/Page 9

:

Create Table ZZTELE

( NAME CHAR(40),

VORNAME CHAR(20),

STR CHAR(40),

NR INT,

PLZ CHAR(5),

ORT CHAR(25),

CODE CHAR(31),

ADDINFO CHAR(31),

PRIMARY KEY

(NAME,VORNAME,STR) )

Table Examples: ZZSTADTTEIL , ZZMASTER

around 20,000

records


Create Table ZZSTADTTEIL

( PLZ CHAR(5),

ORT CHAR(25),

STADTTEIL CHAR(40),

PRIMARY KEY

(PLZ) )

Create Table ZZMASTER

( YEAR INT,

NAME CHAR(40),

VORNAME CHAR(20),

UNI CHAR (40),

ORT CHAR (25),

PRIMARY KEY

(YEAR,NAME,VORNAME) )

10 records

Indexes created on table ZZTELE


Storing data in a B*tree

Root Level

Page

Root node (Root) of table ZZTELE

8 KByte D S U ....

Level 1

Pages

Leaf Level

Pages

Base data as well as index data (secondary key) is stored in B*tree structures.


Brau Caes Dart Pete... Ste...

Aaron Anton

Steig 5

...

Brauner E.

Ilseweg 11 ...

Caesar

S.Gartenweg 5

Information used by Optimization

SELECT ... FROM tab1 WHERE tab1.col1 = 'Walldorf'

Parse Statement

Best Access Path


Final Strategy Execution

DDL Information

Value Evaluation

Explain (1)

Input : EXPLAIN

Output : Description of search strategy

EXPLAIN is used with SELECT commands that access tables and views

EXPLAIN does not execute the specified SELECT command.

The explain command cannot be used with

UPDATE, DELETE or INSERT commands


Explain (2)

SCHEMANAME

Schema Table 1

Schema Table 2

TABLENAME COLUMN_OR_INDEX STRATEGY PAGECOUNT

Result

name


Names of key or

index columns

Names of key or

index columns

Name of chosen strategy

for this table

Name of chosen strategy

for this table

RESULT IS (NOT)

COPIED, COSTVALUE IS

Number of pages

In system table

Optimizerstatistics

Number of pages

in system table

Optimizerstatistics

Estimated

costs

Applied

Query Rewrite rules 1

Query Rewrite

Query Rewrite rebuilds SQL statements by the use of rules to enable the optimizer

to find the best strategy.

Example: ConvertOrToIn

select * from zztele

where PLZ = '10967' or PLZ = '15099' or PLZ = '12047'

SELECT "NAME", "VORNAME", "STR", "NR",

"PLZ", "ORT", "CODE", "ADDINFO"

FROM "SAPR3"."ZZTELE" AS "_T1“

WHERE PLZ in ('10967' , '15099' , '12047' )

Parameter: EnableQueryRewrite=YES, QueryAnalysisMode=EXTENDED


Query Rewrite Rules

Changing the column ACTIVE in the view QUERYREWRITERULES effects if a rule

is switched on or off.


Monitoring Query Rewrite

EXPLAIN QUERYREWRITE shows the result of Query Rewrite as SQL statement.

The view MONITOR indicates how often rules were applied.


Explain (3)


Explain Queryrewrite


Search Condition and Search Strategies (1)

SELECT VORNAME,NAME,PLZ,ORT,STR,ADDINFO

FROM ZZTELE

WHERE ADDINFO LIKE 'Training%'


Search Strategy

Index and Table

Index

ZZTELE~3

SELECT VORNAME,NAME,PLZ,ORT,STR,ADDINFO

FROM ZZTELE

WHERE PLZ = '10967'

10967


Secondary Key Primary Key List

Aimonsri Kano...Dummy Diel...

Index List

Aimonsri Kanopkon Dummy1

:

Dielschn Korina Dummy4

10967 Berlin Fiance

Primary Key Fieldvalues

A 1

Base Record

10967 Berlin IBU Pub

Base Table

ZZTELE

EQUAL CONDITION FOR KEY

SELECT * FROM zztele

WHERE Name = 'Aaron'

AND Vorname = 'Anton'

AND Str = 'Alt Moabit'

Key Value =


Base Table

EQUAL CONDITION FOR KEY - Example


WHERE Name = 'Aaron'

AND Vorname = 'Anton'

AND Str = 'Alt Moabit'


RANGE CONDITION FOR KEY

SELECT * FROM zztele WHERE Name = 'Schmidt'

AND Vorname like 'A%'


STARTKEY

CONDITION(S) TABLE SCAN RANGE

STOPKEY


Base Table

RANGE CONDITION FOR KEY - Example

SELECT * FROM zztele WHERE Name = 'Schmidt'

AND Vorname like 'A%‘



IN CONDITION FOR KEY


WHERE Name IN ('Mueller', 'Schmidt')

Key Value 1

Key Value 2

'Mueller'

'Schmidt'


Base Table

RANGE Cond for In

IN CONDITION FOR KEY - Example


WHERE Name IN ('Mueller', 'Schmidt')


WHERE Name IN ('Scheu', 'Schmidt')


EQUAL CONDITION FOR INDEX

CREATE INDEX "ZZTELE~3" ON ZZTELE(PLZ)


WHERE plz = ‘12345'

Single

Index


Index List

12345

primary key list

Base Table

EQUAL CONDITION FOR INDEX - Example



WHERE plz = '12345'


RANGE CONDITION FOR INDEX



WHERE plz BETWEEN '10100' AND '10967'

Index

SCAN

RANGE

Index


Index List

Index List



Base Table

RANGE CONDITION FOR INDEX - Example



WHERE plz BETWEEN '10100' AND '10967'


IN CONDITION FOR INDEX

CREATE INDEX "ZZTELE~2" ON ZZTELE ( STR, NR )


WHERE str = 'Wexstr' AND nr IN (3, 255)

Multiple

Index


Index List

3

Index List

255



Base Table

IN CONDITION FOR INDEX - Example



WHERE str = 'Wexstr' AND nr IN (3, 255)


Properties which influence the Optimizer

Only Index

Create intermediate result Yes / NO ( e.g. order by)

Min / Max Optimization

Distinct


ONLY INDEX ACCESSED

Index


Secondary Key Primary Key List

plz name

12345 Antoa Dry Huebel Marek ...

SELECT name, plz

FROM zztele


Base Table

ONLY INDEX ACCESSED - Example

SELECT name, plz

FROM zztele



ORDER BY Index column(s)

CREATE INDEX "ZZTELE~2" ON zztele ( str, nr )

SELECT * FROM zztele WHERE name BETWEEN 'A' and 'T'

ORDER BY str, nr

Index


Index List

Index List



Base Table

ORDER BY Index column(s) - Example

SELECT * FROM zztele WHERE name

BETWEEN 'A' and 'T'

ORDER BY str, nr


ORDER BY key column(s)



WHERE str = 'Wexstr' AND nr BETWEEN 20 AND 23

ORDER BY name, vorname, str

Single

Index

20

Index List

22

Kernel parameter: IndexlistsMergeThreshold




Index List

23


Merged

List

Base Table

ORDER BY key column(s) - Example


WHERE str = 'Wexstr' AND nr

BETWEEN 20 AND 23

ORDER BY name, vorname, str


MIN/MAX Optimization - Example

CREATE INDEX "ZZTELE~2" ON zztele ( str, nr )

SELECT MAX (nr)

FROM zztele

WHERE str = 'Wexstr'


DISTINCT Optimization - Example

CREATE INDEX "ZZTELE~1" ON zztele ( ort, str )

select distinct (ort)

from zztele


NO STRATEGY NOW (ONLY AT EXECUTION

TIME)

Strategy will be determined first during execution of the command

This is valid for queries if the access path will be determined first when they are

executed.

Usually this output is used for queries containing sub-queries or correlated subqueries:

strategy will first be determined when interim results become available.


SUBQUERY allows CONDITION FOR KEY


WHERE name IN (SELECT name FROM zzmaster WHERE year = 2000)

Internal

Subquery File

Key Value 1

Key Value 2

Key Value 3

Key Value 4

Key Value 5


‘Aimonsri'

Base Table

SUBQUERY – Example (1)

EXPLAIN SELECT * FROM zztele

WHERE name IN

(SELECT name FROM zzmaster

WHERE year = 2000)


SUBQUERY allows CONDITION FOR INDEX


SELECT * FROM zztele WHERE plz IN

(SELECT plz FROM zzstadtteil WHERE stadtteil = 'Kreuzberg' )

Internal

Subquery

File

Value 1

Value 1

Value 1

Value 2

Value 3

Value 3

Value 4


Single

Index

Index List

val 1

Index List

val 3



Base Table

SUBQUERY – Example (2)




WHERE plz IN

(SELECT plz FROM zzstadtteil

WHERE stadtteil = 'Kreuzberg' )

Nice to know

SELECT plz FROM zzstadtteil WHERE stadtteil like ‚%berg'

SELECT * FROM zzmaster WHERE vorname = 'Lars'


WHERE name IN ('Aimonsri', 'Hofmann', 'Lueck', 'MORONI', 'Reijer')

AND vorname IN ( 'Jan', 'Walter')

SELECT * FROM zzmaster

WHERE year + 1 = 2001


SELECT * FROM zzmaster

WHERE year = 2001 - 1

© SAP AG 2009. All rights reserved. / Page 50

Questions and Answers

Thank You!

Bye, Bye – And Remember Next Session


Feedback and further information:

http://www.sdn.sap.com/irj/sdn/maxdb

Next Session: 29.08.2012

SAP® MaxDB SQL Query Optimization - Part 2

Disclaimer

This presentation reflects current planning.


Contents may be changed

without prior notice, and are in no way

binding upon SAP.

© Copyright 2012 SAP AG

All Rights Reserved

No part of this publication may be reproduced or transmitted in any form or for any purpose without the express permission of SAP AG. The information contained herein

may be changed without prior notice.

Some software products marketed by SAP AG and its distributors contain proprietary software components of other software vendors.

Microsoft, Windows, Excel, Outlook, and PowerPoint are registered trademarks of Microsoft Corporation.

IBM, DB2, DB2 Universal Database, System i, System i5, System p, System p5, System x, System z, System z10, System z9, z10, z9, iSeries, pSeries, xSeries, zSeries,

eServer, z/VM, z/OS, i5/OS, S/390, OS/390, OS/400, AS/400, S/390 Parallel Enterprise Server, PowerVM, Power Architecture, POWER6+, POWER6, POWER5+,

POWER5, POWER, OpenPower, PowerPC, BatchPipes, BladeCenter, System Storage, GPFS, HACMP, RETAIN, DB2 Connect, RACF, Redbooks, OS/2, Parallel Sysplex,

MVS/ESA, AIX, Intelligent Miner, WebSphere, Netfinity, Tivoli and Informix are trademarks or registered trademarks of IBM Corporation.

Linux is the registered trademark of Linus Torvalds in the U.S. and other countries.

Adobe, the Adobe logo, Acrobat, PostScript, and Reader are either trademarks or registered trademarks of Adobe Systems Incorporated in the United States and/or other

countries.

Oracle is a registered trademark of Oracle Corporation.

UNIX, X/Open, OSF/1, and Motif are registered trademarks of the Open Group.

Citrix, ICA, Program Neighborhood, MetaFrame, WinFrame, VideoFrame, and MultiWin are trademarks or registered trademarks of Citrix Systems, Inc.

HTML, XML, XHTML and W3C are trademarks or registered trademarks of W3C®, World Wide Web Consortium, Massachusetts Institute of Technology.

Java is a registered trademark of Sun Microsystems, Inc.

JavaScript is a registered trademark of Sun Microsystems, Inc., used under license for technology invented and implemented by Netscape.

SAP, R/3, SAP NetWeaver, Duet, PartnerEdge, ByDesign, SAP Business ByDesign, and other SAP products and services mentioned herein as well as their respective

logos are trademarks or registered trademarks of SAP AG in Germany and other countries.

Business Objects and the Business Objects logo, BusinessObjects, Crystal Reports, Crystal Decisions, Web Intelligence, Xcelsius, and other Business Objects products and

services mentioned herein as well as their respective logos are trademarks or registered trademarks of Business Objects S.A. in the United States and in other countries.

Business Objects is an SAP company.

All other product and service names mentioned are the trademarks of their respective companies. Data contained in this document serves informational purposes only.

National product specifications may vary.

These materials are subject to change without notice. These materials are provided by SAP AG and its affiliated companies ("SAP Group") for informational purposes only,

without representation or warranty of any kind, and SAP Group shall not be liable for errors or omissions with respect to the materials. The only warranties for SAP Group

products and services are those that are set forth in the express warranty statements accompanying such products and services, if any. Nothing herein should be construed

as constituting an additional warrant.

© SAP 2012 SAP MaxDB Expert Session – Optimizer (Part 1)53

Script (.pdf file, 2 MB) - SAP MaxDB

Create successful ePaper yourself

Delete template?

Save as template?
