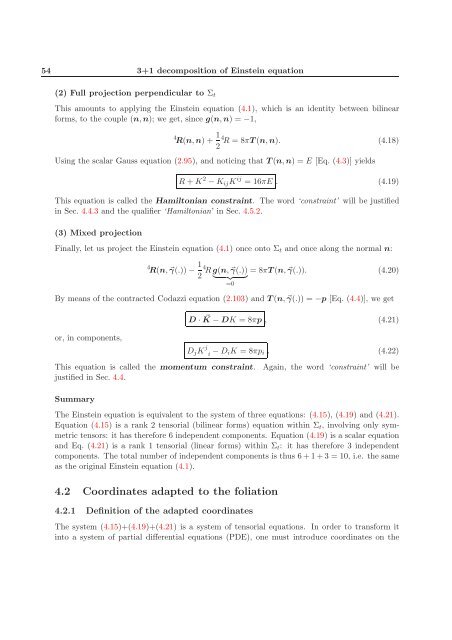

54 <strong>3+1</strong> decomposition <strong>of</strong> Einstein equation<br />
(2) Full projection perpendicular to Σt<br />
This amounts to applying the Einstein equation (4.1), which is an identity between bilinear<br />
forms, to the couple (n,n); we get, since g(n,n) = −1,<br />
4 14<br />
R(n,n) + R = 8πT(n,n). (4.18)<br />
2<br />
Using the scalar Gauss equation (2.95), <strong>and</strong> noticing that T(n,n) = E [Eq. (4.3)] yields<br />
R + K 2 − KijK ij = 16πE . (4.19)<br />
This equation is called the Hamiltonian constraint. The word ‘constraint’ will be justified<br />
in Sec. 4.4.3 <strong>and</strong> the qualifier ‘Hamiltonian’ in Sec. 4.5.2.<br />
(3) Mixed projection<br />
Finally, let us project the Einstein equation (4.1) once onto Σt <strong>and</strong> once along the normal n:<br />
4 14<br />
R(n, γ(.)) − R g(n,γ(.)) = 8πT(n, γ(.)). (4.20)<br />
2 <br />
=0<br />
By means <strong>of</strong> the contracted Codazzi equation (2.103) <strong>and</strong> T(n,γ(.)) = −p [Eq. (4.4)], we get<br />
or, in components,<br />
D · K − DK = 8πp , (4.21)<br />
DjK j<br />
i − DiK = 8πpi . (4.22)<br />
This equation is called the momentum constraint. Again, the word ‘constraint’ will be<br />
justified in Sec. 4.4.<br />
Summary<br />
The Einstein equation is equivalent to the system <strong>of</strong> three equations: (4.15), (4.19) <strong>and</strong> (4.21).<br />
Equation (4.15) is a rank 2 tensorial (bilinear forms) equation within Σt, involving only symmetric<br />
tensors: it has therefore 6 independent components. Equation (4.19) is a scalar equation<br />
<strong>and</strong> Eq. (4.21) is a rank 1 tensorial (linear forms) within Σt: it has therefore 3 independent<br />
components. The total number <strong>of</strong> independent components is thus 6 + 1 + 3 = 10, i.e. the same<br />
as the original Einstein equation (4.1).<br />
4.2 Coordinates adapted to the foliation<br />
4.2.1 Definition <strong>of</strong> the adapted coordinates<br />
The system (4.15)+(4.19)+(4.21) is a system <strong>of</strong> tensorial equations. In order to transform it<br />
into a system <strong>of</strong> partial differential equations (PDE), one must introduce coordinates on the
