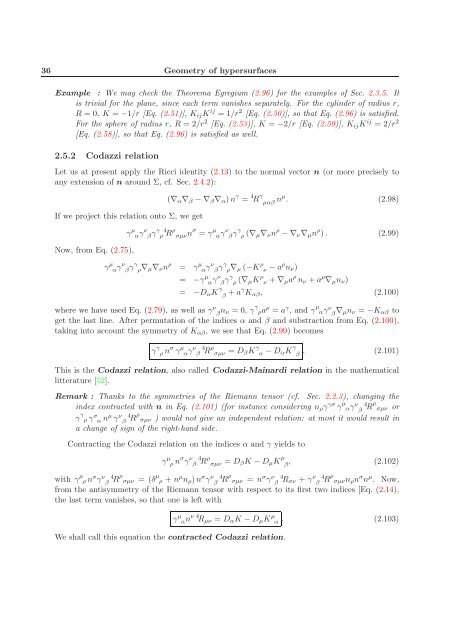

36 Geometry <strong>of</strong> hypersurfaces<br />
Example : We may check the Theorema Egregium (2.96) for the examples <strong>of</strong> Sec. 2.3.5. It<br />
is trivial for the plane, since each term vanishes separately. For the cylinder <strong>of</strong> radius r,<br />
R = 0, K = −1/r [Eq. (2.51)], KijK ij = 1/r 2 [Eq. (2.50)], so that Eq. (2.96) is satisfied.<br />
For the sphere <strong>of</strong> radius r, R = 2/r 2 [Eq. (2.53)], K = −2/r [Eq. (2.59)], KijK ij = 2/r 2<br />
[Eq. (2.58)], so that Eq. (2.96) is satisfied as well.<br />
2.5.2 Codazzi relation<br />
Let us at present apply the Ricci identity (2.13) to the normal vector n (or more precisely to<br />
any extension <strong>of</strong> n around Σ, cf. Sec. 2.4.2):<br />
If we project this relation onto Σ, we get<br />
Now, from Eq. (2.75),<br />
(∇α∇β − ∇β∇α) n γ = 4 R γ<br />
µαβ nµ . (2.98)<br />
γ µ αγ ν β γγ ρ 4 R ρ σµνn σ = γ µ αγ ν β γγ ρ (∇µ∇νn ρ − ∇ν∇µn ρ ) . (2.99)<br />
γ µ α γν β γγ ρ ∇µ∇νn ρ = γ µ α γν β γγ ρ ∇µ (−K ρ ν − aρ nν)<br />
= −γ µ α γν β γγ ρ (∇µK ρ ν + ∇µa ρ nν + a ρ ∇µnν)<br />
= −DαK γ<br />
β + aγ Kαβ, (2.100)<br />
where we have used Eq. (2.79), as well as γ ν β nν = 0, γ γ ρa ρ = a γ , <strong>and</strong> γ µ αγ ν β ∇µnν = −Kαβ to<br />
get the last line. After permutation <strong>of</strong> the indices α <strong>and</strong> β <strong>and</strong> substraction from Eq. (2.100),<br />
taking into account the symmetry <strong>of</strong> Kαβ, we see that Eq. (2.99) becomes<br />
γ γ ρ n σ γ µ αγ ν β 4 R ρ σµν = DβK γ α − DαK γ<br />
β . (2.101)<br />
This is the Codazzi relation, also called Codazzi-Mainardi relation in the mathematical<br />
litterature [52].<br />
Remark : Thanks to the symmetries <strong>of</strong> the Riemann tensor (cf. Sec. 2.2.3), changing the<br />
index contracted with n in Eq. (2.101) (for instance considering nργ γσ γ µ αγ ν β 4 R ρ σµν or<br />
γ γ ρ γ σ α n µ γ ν β 4 R ρ σµν ) would not give an independent relation: at most it would result in<br />
a change <strong>of</strong> sign <strong>of</strong> the right-h<strong>and</strong> side.<br />
Contracting the Codazzi relation on the indices α <strong>and</strong> γ yields to<br />
γ µ ρ n σ γ ν β 4 R ρ σµν = DβK − DµK µ<br />
β , (2.102)<br />
with γ µ ρ n σ γ ν β 4 R ρ σµν = (δ µ ρ + n µ nρ)n σ γ ν β 4 R ρ σµν = n σ γ ν β 4 Rσν + γ ν β 4 R ρ σµνnρn σ n µ . Now,<br />
from the antisymmetry <strong>of</strong> the Riemann tensor with respect to its first two indices [Eq. (2.14),<br />
the last term vanishes, so that one is left with<br />
γ µ α nν 4 Rµν = DαK − DµK µ α<br />
We shall call this equation the contracted Codazzi relation.<br />
. (2.103)
