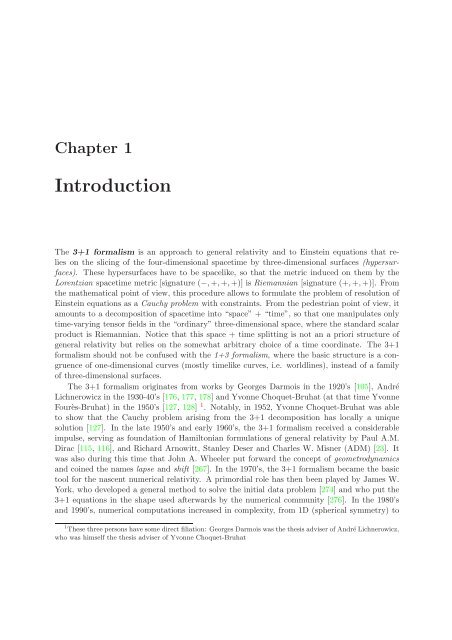

Chapter 1<br />
Introduction<br />
The <strong>3+1</strong> <strong>formalism</strong> is an approach to general <strong>relativity</strong> <strong>and</strong> to Einstein equations that relies<br />
on the slicing <strong>of</strong> the four-dimensional spacetime by three-dimensional surfaces (hypersurfaces).<br />
These hypersurfaces have to be spacelike, so that the metric induced on them by the<br />
Lorentzian spacetime metric [signature (−,+,+,+)] is Riemannian [signature (+,+,+)]. From<br />
the mathematical point <strong>of</strong> view, this procedure allows to formulate the problem <strong>of</strong> resolution <strong>of</strong><br />
Einstein equations as a Cauchy problem with constraints. From the pedestrian point <strong>of</strong> view, it<br />
amounts to a decomposition <strong>of</strong> spacetime into “space” + “time”, so that one manipulates only<br />
time-varying tensor fields in the “ordinary” three-dimensional space, where the st<strong>and</strong>ard scalar<br />
product is Riemannian. Notice that this space + time splitting is not an a priori structure <strong>of</strong><br />
general <strong>relativity</strong> but relies on the somewhat arbitrary choice <strong>of</strong> a time coordinate. The <strong>3+1</strong><br />
<strong>formalism</strong> should not be confused with the 1+3 <strong>formalism</strong>, where the basic structure is a congruence<br />
<strong>of</strong> one-dimensional curves (mostly timelike curves, i.e. worldlines), instead <strong>of</strong> a family<br />
<strong>of</strong> three-dimensional surfaces.<br />
The <strong>3+1</strong> <strong>formalism</strong> originates from works by Georges Darmois in the 1920’s [105], André<br />
Lichnerowicz in the 1930-40’s [176, 177, 178] <strong>and</strong> Yvonne Choquet-Bruhat (at that time Yvonne<br />
Fourès-Bruhat) in the 1950’s [127, 128] 1 . Notably, in 1952, Yvonne Choquet-Bruhat was able<br />
to show that the Cauchy problem arising from the <strong>3+1</strong> decomposition has locally a unique<br />
solution [127]. In the late 1950’s <strong>and</strong> early 1960’s, the <strong>3+1</strong> <strong>formalism</strong> received a considerable<br />
impulse, serving as foundation <strong>of</strong> Hamiltonian formulations <strong>of</strong> general <strong>relativity</strong> by Paul A.M.<br />
Dirac [115, 116], <strong>and</strong> Richard Arnowitt, Stanley Deser <strong>and</strong> Charles W. Misner (ADM) [23]. It<br />
was also during this time that John A. Wheeler put forward the concept <strong>of</strong> geometrodynamics<br />
<strong>and</strong> coined the names lapse <strong>and</strong> shift [267]. In the 1970’s, the <strong>3+1</strong> <strong>formalism</strong> became the basic<br />
tool for the nascent <strong>numerical</strong> <strong>relativity</strong>. A primordial role has then been played by James W.<br />
York, who developed a general method to solve the initial data problem [274] <strong>and</strong> who put the<br />
<strong>3+1</strong> equations in the shape used afterwards by the <strong>numerical</strong> community [276]. In the 1980’s<br />
<strong>and</strong> 1990’s, <strong>numerical</strong> computations increased in complexity, from 1D (spherical symmetry) to<br />
1 These three persons have some direct filiation: Georges Darmois was the thesis adviser <strong>of</strong> André Lichnerowicz,<br />
who was himself the thesis adviser <strong>of</strong> Yvonne Choquet-Bruhat
