180 THE FOURTH DIMENSION place. This purple line lasts for a minute—that is, all of a minute, except the moment taken by the crossing our space of the initial and final red line. The purple line having lasted for this period is succeeded by a red line, which lasts for a moment; then this goes and the tesseract has passed across our space. The final red line we call red bl., because it is separated from the initial red line by a distance along the axis for which we use the colour blue. Thus a line that lasts represents an area duration; is in this mode of presentation equivalent to a dimension of space. In the same way the white line, during the crossing our space by the tesseract, is succeeded by a light blue line which lasts for the inside of a minute, and as the tesseract leaves our space, having crossed it, the white bl. line appears as the final termination. Take now the pink face. Moved in the blue direction it traces out a light purple cube. This light purple cube is shown in sections in b1, b2, b3 and the farther face of this cube in the blue direction is shown in b4-- a pink face, called pink bl. because it is distant from the pink face we began with in the blue direction. Thus the cube which we colour light purple appears as a lasting square. The square face itself, the pink face, vanishes instantly the tesseract begins to move, but the light purple cube appears as a lasting square. Here also duration is the equivalent of a dimension of space—a lasting square is a cube. It is useful to connect these diagrams with the views given in the coloured plate. Take again the orange face, that determined by the red and yellow axes; from it goes a brown cube in the blue direction, for red and yellow and blue are supposed to make brown. This brown cube is shown in three sections in the faces b1, b2, b3. In b4 is the opposite orange face of the brown cube, the face called orange bl.,
REMARKS ON THE FIGURES 181 for it is distant in the blue direction from the orange face. As the tesseract passes transverse to our space, we have then in this region an instantly vanishing orange square, followed by a lasting brown square, and finally an orange face which vanishes instantly. Now, as any three axes will be in our space, let us send the white axis out into the unknown, the fourth dimension, and take the blue axis into our known space dimension. Since the white and blue axes are perpendicular to each other, if the white axis goes out into the fourth dimension in the positive sense, the blue axis will come into the direction the white axis occupied, in the negative sense. wh4 wh3 wh2 wh1 wh0 Fig. 108. Hence, not to complicate matters by having to think of two senses in the unknown direction, let us send the white line into the positive sense of the fourth dimension, and take the blue one as running in the negative sense of that direction which the white line has left; let the blue line, that is, run to the left. We have now the row of figures in fig. 108. The dotted cube shows where we had a cube when the white line ran in our space—now it has turned out of our space, and another solid boundary, another cubic face of the tesseract comes into our space. This cube has red and yellow axes as before; but now, instead of a white axis running to the right, there is a blue axis running to the left. Here we can distinguish the regions by colours in a perfectly systematic way. The red line traces out a purple x
- Page 139 and 140: A FOUR-DIMENSIONAL FIGURE 129 Now s
- Page 141 and 142: A FOUR-DIMENSIONAL FIGURE 131 of me
- Page 143 and 144: A FOUR-DIMENSIONAL FIGURE 133 note
- Page 145 and 146: A FOUR-DIMENSIONAL FIGURE 135 These
- Page 147 and 148: NOMENCLATURE AND ANALOGIES 137 to a
- Page 149 and 150: NOMENCLATURE AND ANALOGIES 139 null
- Page 151 and 152: NOMENCLATURE AND ANALOGIES 141 laye
- Page 153 and 154: NOMENCLATURE AND ANALOGIES 143 a li
- Page 155 and 156: NOMENCLATURE AND ANALOGIES 145 oppo
- Page 157 and 158: NOMENCLATURE AND ANALOGIES 147 the
- Page 159 and 160: NOMENCLATURE AND ANALOGIES 149 dime
- Page 161 and 162: NOMENCLATURE AND ANALOGIES 151 larg
- Page 163 and 164: NOMENCLATURE AND ANALOGIES 153 axes
- Page 165 and 166: NOMENCLATURE AND ANALOGIES 155 lie
- Page 167 and 168: CHAPTER XII THE SIMPLEST FOUR-DIMEN
- Page 169 and 170: THE SIMPLEST FOUR-DIMENSIONAL SOLID
- Page 171 and 172: THE SIMPLEST FOUR-DIMENSIONAL SOLID
- Page 173 and 174: THE SIMPLEST FOUR-DIMENSIONAL SOLID
- Page 175 and 176: THE SIMPLEST FOUR-DIMENSIONAL SOLID
- Page 177 and 178: THE SIMPLEST FOUR-DIMENSIONAL SOLID
- Page 179 and 180: THE SIMPLEST FOUR-DIMENSIONAL SOLID
- Page 181 and 182: THE SIMPLEST FOUR-DIMENSIONAL SOLID
- Page 183 and 184: THE SIMPLEST FOUR-DIMENSIONAL SOLID
- Page 185 and 186: Purple Red THE SIMPLEST FOUR-DIMENS
- Page 187 and 188: Light blue Gren Light purple THE SI
- Page 189: REMARKS ON THE FIGURES 179 ochre cu
- Page 193 and 194: REMARKS ON THE FIGURES 183 that is
- Page 195 and 196: REMARKS ON THE FIGURES 185 yellow l
- Page 197 and 198: REMARKS ON THE FIGURES 187 As the r
- Page 199 and 200: REMARKS ON THE FIGURES 189 cubes, w
- Page 201 and 202: 4 4 REMARKS ON THE FIGURES 191 The
- Page 203 and 204: REMARKS ON THE FIGURES 193 face or
- Page 205 and 206: REMARKS ON THE FIGURES 195 face in
- Page 207 and 208: REMARKS ON THE FIGURES 197 space, a
- Page 209 and 210: REMARKS ON THE FIGURES 199 Hence wh
- Page 211 and 212: REMARKS ON THE FIGURES 201 sections
- Page 213 and 214: CHAPTER XIV * A RECAPITULATION AND
- Page 215 and 216: RECAPITULATION AND EXTENSION 205 ou
- Page 217 and 218: RECAPITULATION AND EXTENSION 207 ha
- Page 219 and 220: RECAPITULATION AND EXTENSION 209 Bu
- Page 221 and 222: RECAPITULATION AND EXTENSION 211 We
- Page 223 and 224: RECAPITULATION AND EXTENSION 213 Th
- Page 225 and 226: RECAPITULATION AND EXTENSION 215 th
- Page 227 and 228: RECAPITULATION AND EXTENSION 217 In
- Page 229 and 230: RECAPITULATION AND EXTENSION 219 th
- Page 231 and 232: RECAPITULATION AND EXTENSION 221 ta
- Page 233 and 234: RECAPITULATION AND EXTENSION 223 If
- Page 235 and 236: RECAPITULATION AND EXTENSION 225 th
- Page 237 and 238: RECAPITULATION AND EXTENSION 227 di
- Page 239 and 240: RECAPITULATION AND EXTENSION 229 If
REMARKS ON THE FIGURES 181<br />
for it is distant in the blue direction from the orange<br />
face. As the tesseract passes transverse to our space,<br />
we have then in this region an instantly vanishing orange<br />
square, followed by a lasting brown square, and finally<br />
an orange face which vanishes instantly.<br />
Now, as any three axes will be in our space, let us send<br />
the white axis out into the unknown, the fourth dimension,<br />
and take the blue axis into our known space<br />
dimension. Since the white and blue axes are perpendicular<br />
to each other, if the white axis goes out into<br />
the fourth dimension in the positive sense, the blue axis<br />
will come into the direction the white axis occupied,<br />
in the negative sense.<br />

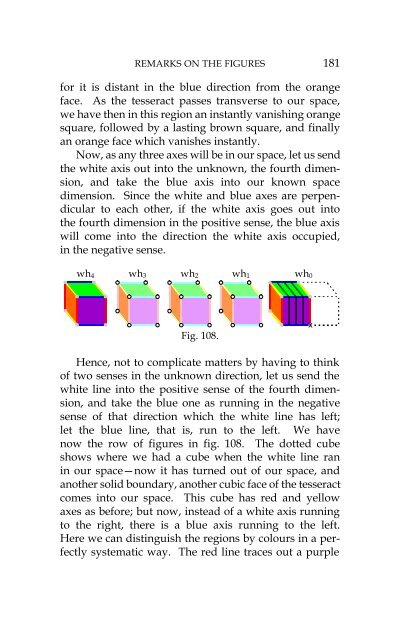

wh4 wh3 wh2 wh1 wh0<br />
