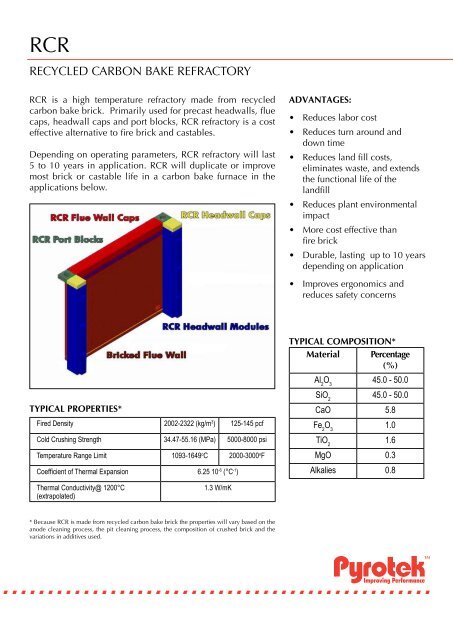

<strong>RCR</strong><br />
ReCyCleD CaRbon bake RefRaCtoRy<br />
<strong>RCR</strong> is a high temperature refractory made from recycled<br />
carbon bake brick. Primarily used for precast headwalls, flue<br />
caps, headwall caps and port blocks, <strong>RCR</strong> refractory is a cost<br />
effective alternative to fire brick and castables.<br />
Depending on operating parameters, <strong>RCR</strong> refractory will last<br />
5 to 10 years in application. <strong>RCR</strong> will duplicate or improve<br />
most brick or castable life in a carbon bake furnace in the<br />
applications below.<br />
Fired Density 2002-2322 (kg/m3 tYPICAL PRoPeRtIes*<br />
) 125-145 pcf<br />
Cold Crushing Strength 34.47-55.16 (MPa) 5000-8000 psi<br />
Temperature Range Limit 1093-1649 o C 2000-3000 o F<br />
Coefficient of Thermal Expansion 6.25 10 -6 (°C -1 )<br />
Thermal Conductivity@ 1200°C<br />
(extrapolated)<br />
1.3 W/mK<br />
* because <strong>RCR</strong> is made from recycled carbon bake brick the properties will vary based on the<br />
anode cleaning process, the pit cleaning process, the composition of crushed brick and the<br />
variations in additives used.<br />
AdvAntAges:<br />
• Reduces labor cost<br />
• Reduces turn around and<br />
down time<br />
• Reduces land fill costs,<br />
eliminates waste, and extends<br />
the functional life of the<br />
landfill<br />
• Reduces plant environmental<br />
impact<br />
• More cost effective than<br />
fire brick<br />
• Durable, lasting up to 10 years<br />
depending on application<br />
• Improves ergonomics and<br />
reduces safety concerns<br />
tYPICAL CoMPosItIon*<br />
Material Percentage<br />
(%)<br />
Al O 2 3<br />
45.0 - 50.0<br />
SiO2 45.0 - 50.0<br />
CaO 5.8<br />
Fe O 2 3<br />
1.0<br />
TiO2 1.6<br />
MgO 0.3<br />
Alkalies 0.8
<strong>RCR</strong><br />
AvAILAbILItY<br />
Currently manufactured in wenatchee, wa, <strong>Pyrotek</strong> can ship <strong>RCR</strong> refractory<br />
throughout the world. other manufacturing sites will be qualified in the<br />
future.<br />
note: the physical and chemical properties listed represent typical, average values obtained in accordance with accepted test methods and are subject to normal manufacturing<br />
variations. they are supplied as a technical service and are subject to change without notice.<br />
