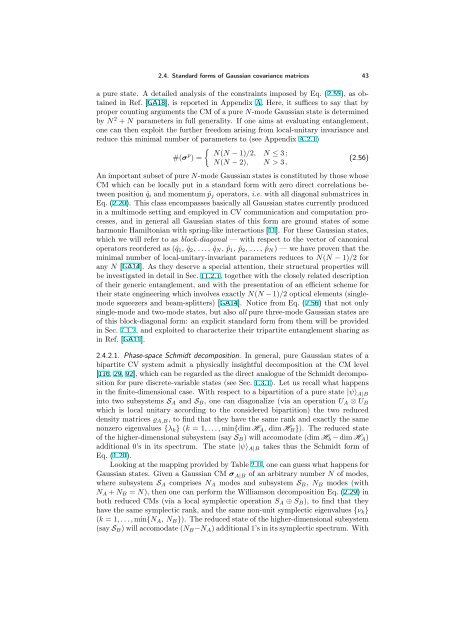

2.4. Standard forms of Gaussian covariance matrices 43<br />
a pure state. A detailed analysis of the constraints imposed by Eq. (2.55), as obtained<br />
in Ref. [GA18], is reported in Appendix A. Here, it suffices to say that by<br />
proper counting arguments the CM of a pure N-mode Gaussian state is determined<br />
by N 2 + N parameters in full generality. If one aims at evaluating entanglement,<br />
one can then exploit the further freedom arising from local-unitary invariance and<br />
reduce this minimal number of parameters to (see Appendix A.2.1)<br />
#(σ p ) =<br />
N(N − 1)/2, N ≤ 3 ;<br />
N(N − 2), N > 3 .<br />
(2.56)<br />
An important subset of pure N-mode Gaussian states is constituted by those whose<br />
CM which can be locally put in a standard form with zero direct correlations between<br />
position ˆqi and momentum ˆpj operators, i.e. with all diagonal submatrices in<br />
Eq. (2.20). This class encompasses basically all Gaussian states currently produced<br />
in a multimode setting and employed in CV communication and computation processes,<br />
and in general all Gaussian states of this form are ground states of some<br />
harmonic Hamiltonian with spring-like interactions [11]. For these Gaussian states,<br />
which we will refer to as block-diagonal — with respect to the vector of canonical<br />
operators reordered as (ˆq1, ˆq2, . . . , ˆqN, ˆp1, ˆp2, . . . , ˆpN) — we have proven that the<br />
minimal number of local-unitary-invariant parameters reduces to N(N − 1)/2 for<br />
any N [GA14]. As they deserve a special attention, their structural properties will<br />
be investigated in detail in Sec. 11.2.1, together with the closely related description<br />
of their generic entanglement, and with the presentation of an efficient scheme for<br />
their state engineering which involves exactly N(N − 1)/2 optical elements (singlemode<br />
squeezers and beam-splitters) [GA14]. Notice from Eq. (2.56) that not only<br />
single-mode and two-mode states, but also all pure three-mode Gaussian states are<br />
of this block-diagonal form: an explicit standard form from them will be provided<br />
in Sec. 7.1.2, and exploited to characterize their tripartite entanglement sharing as<br />
in Ref. [GA11].<br />
2.4.2.1. Phase-space Schmidt decomposition. In general, pure Gaussian states of a<br />
bipartite CV system admit a physically insightful decomposition at the CM level<br />
[116, 29, 92], which can be regarded as the direct analogue of the Schmidt decomposition<br />
for pure discrete-variable states (see Sec. 1.3.1). Let us recall what happens<br />
in the finite-dimensional case. With respect to a bipartition of a pure state |ψ〉 A|B<br />
into two subsystems SA and SB, one can diagonalize (via an operation UA ⊗ UB<br />
which is local unitary according to the considered bipartition) the two reduced<br />
density matrices ϱA,B, to find that they have the same rank and exactly the same<br />
nonzero eigenvalues {λk} (k = 1, . . . , min{dim HA, dim HB}). The reduced state<br />
of the higher-dimensional subsystem (say SB) will accomodate (dim Hb − dim HA)<br />
additional 0’s in its spectrum. The state |ψ〉 A|B takes thus the Schmidt form of<br />
Eq. (1.20).<br />
Looking at the mapping provided by Table 2.II, one can guess what happens for<br />
Gaussian states. Given a Gaussian CM σ A|B of an arbitrary number N of modes,<br />
where subsystem SA comprises NA modes and subsystem SB, NB modes (with<br />
NA + NB = N), then one can perform the Williamson decomposition Eq. (2.29) in<br />
both reduced CMs (via a local symplectic operation SA ⊕ SB), to find that they<br />
have the same symplectic rank, and the same non-unit symplectic eigenvalues {νk}<br />
(k = 1, . . . , min{NA, NB}). The reduced state of the higher-dimensional subsystem<br />
(say SB) will accomodate (NB−NA) additional 1’s in its symplectic spectrum. With
