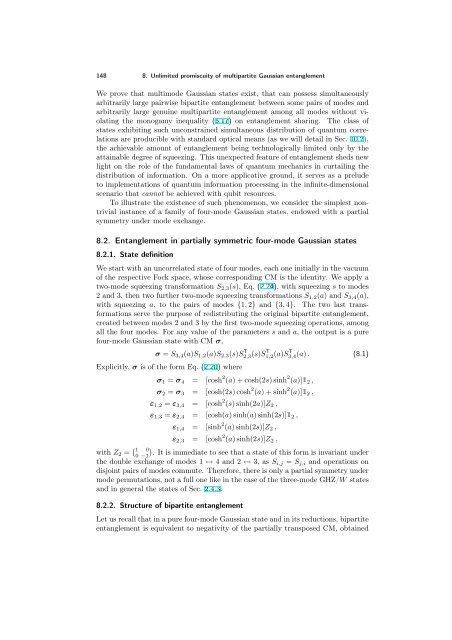

148 8. Unlimited promiscuity of multipartite Gaussian entanglement<br />
We prove that multimode Gaussian states exist, that can possess simultaneously<br />
arbitrarily large pairwise bipartite entanglement between some pairs of modes and<br />
arbitrarily large genuine multipartite entanglement among all modes without violating<br />
the monogamy inequality (6.17) on entanglement sharing. The class of<br />
states exhibiting such unconstrained simultaneous distribution of quantum correlations<br />
are producible with standard optical means (as we will detail in Sec. 10.2),<br />
the achievable amount of entanglement being technologically limited only by the<br />
attainable degree of squeezing. This unexpected feature of entanglement sheds new<br />
light on the role of the fundamental laws of quantum mechanics in curtailing the<br />
distribution of information. On a more applicative ground, it serves as a prelude<br />
to implementations of quantum information processing in the infinite-dimensional<br />
scenario that cannot be achieved with qubit resources.<br />
To illustrate the existence of such phenomenon, we consider the simplest nontrivial<br />
instance of a family of four-mode Gaussian states, endowed with a partial<br />
symmetry under mode exchange.<br />
8.2. Entanglement in partially symmetric four-mode Gaussian states<br />
8.2.1. State definition<br />
We start with an uncorrelated state of four modes, each one initially in the vacuum<br />
of the respective Fock space, whose corresponding CM is the identity. We apply a<br />
two-mode squeezing transformation S2,3(s), Eq. (2.24), with squeezing s to modes<br />
2 and 3, then two further two-mode squeezing transformations S1,2(a) and S3,4(a),<br />
with squeezing a, to the pairs of modes {1, 2} and {3, 4}. The two last transformations<br />
serve the purpose of redistributing the original bipartite entanglement,<br />
created between modes 2 and 3 by the first two-mode squeezing operations, among<br />
all the four modes. For any value of the parameters s and a, the output is a pure<br />
four-mode Gaussian state with CM σ,<br />
σ = S3,4(a)S1,2(a)S2,3(s)S T 2,3(s)S T 1,2(a)S T 3,4(a) . (8.1)<br />
Explicitly, σ is of the form Eq. (2.20) where<br />
σ1 = σ4 = [cosh 2 (a) + cosh(2s) sinh 2 (a)]2 ,<br />
σ2 = σ3 = [cosh(2s) cosh 2 (a) + sinh 2 (a)]2 ,<br />
ε1,2 = ε3,4 = [cosh 2 (s) sinh(2a)]Z2 ,<br />
ε1,3 = ε2,4 = [cosh(a) sinh(a) sinh(2s)]2 ,<br />
ε1,4 = [sinh 2 (a) sinh(2s)]Z2 ,<br />
ε2,3 = [cosh 2 (a) sinh(2s)]Z2 ,<br />
with Z2 = 1 0<br />
0 −1 . It is immediate to see that a state of this form is invariant under<br />
the double exchange of modes 1 ↔ 4 and 2 ↔ 3, as Si,j = Sj,i and operations on<br />
disjoint pairs of modes commute. Therefore, there is only a partial symmetry under<br />
mode permutations, not a full one like in the case of the three-mode GHZ/W states<br />
and in general the states of Sec. 2.4.3.<br />
8.2.2. Structure of bipartite entanglement<br />
Let us recall that in a pure four-mode Gaussian state and in its reductions, bipartite<br />
entanglement is equivalent to negativity of the partially transposed CM, obtained
