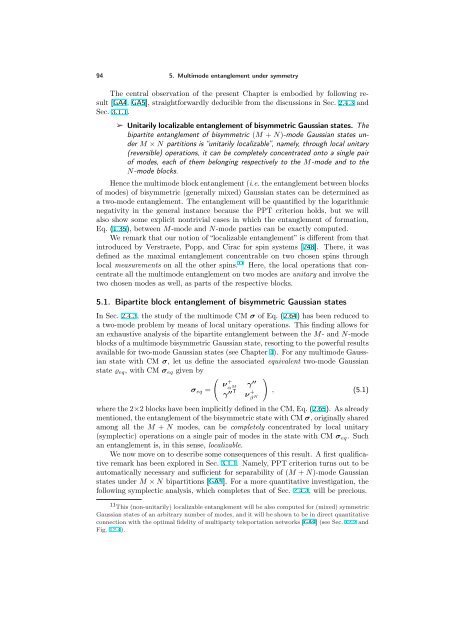

94 5. Multimode entanglement under symmetry The central observation of the present Chapter is embodied by following result [GA4, GA5], straightforwardly deducible from the discussions in Sec. 2.4.3 and Sec. 3.1.1. ➢ Unitarily localizable entanglement of bisymmetric Gaussian states. The bipartite entanglement of bisymmetric (M + N)-mode Gaussian states under M × N partitions is “unitarily localizable”, namely, through local unitary (reversible) operations, it can be completely concentrated onto a single pair of modes, each of them belonging respectively to the M-mode and to the N-mode blocks. Hence the multimode block entanglement (i.e. the entanglement between blocks of modes) of bisymmetric (generally mixed) Gaussian states can be determined as a two-mode entanglement. The entanglement will be quantified by the logarithmic negativity in the general instance because the PPT criterion holds, but we will also show some explicit nontrivial cases in which the entanglement of formation, Eq. (1.35), between M-mode and N-mode parties can be exactly computed. We remark that our notion of “localizable entanglement” is different from that introduced by Verstraete, Popp, and Cirac for spin systems [248]. There, it was defined as the maximal entanglement concentrable on two chosen spins through local measurements on all the other spins. 11 Here, the local operations that concentrate all the multimode entanglement on two modes are unitary and involve the two chosen modes as well, as parts of the respective blocks. 5.1. Bipartite block entanglement of bisymmetric Gaussian states In Sec. 2.4.3, the study of the multimode CM σ of Eq. (2.64) has been reduced to a two-mode problem by means of local unitary operations. This finding allows for an exhaustive analysis of the bipartite entanglement between the M- and N-mode blocks of a multimode bisymmetric Gaussian state, resorting to the powerful results available for two-mode Gaussian states (see Chapter 4). For any multimode Gaussian state with CM σ, let us define the associated equivalent two-mode Gaussian state ϱeq, with CM σeq given by σeq = + ν αM γ ′′ γ ′′T + ν βN , (5.1) where the 2×2 blocks have been implicitly defined in the CM, Eq. (2.65). As already mentioned, the entanglement of the bisymmetric state with CM σ, originally shared among all the M + N modes, can be completely concentrated by local unitary (symplectic) operations on a single pair of modes in the state with CM σeq. Such an entanglement is, in this sense, localizable. We now move on to describe some consequences of this result. A first qualificative remark has been explored in Sec. 3.1.1. Namely, PPT criterion turns out to be automatically necessary and sufficient for separability of (M + N)-mode Gaussian states under M × N bipartitions [GA5]. For a more quantitative investigation, the following symplectic analysis, which completes that of Sec. 2.4.3, will be precious. 11 This (non-unitarily) localizable entanglement will be also computed for (mixed) symmetric Gaussian states of an arbitrary number of modes, and it will be shown to be in direct quantitative connection with the optimal fidelity of multiparty teleportation networks [GA9] (see Sec. 12.2 and Fig. 12.4).
5.1. Bipartite block entanglement of bisymmetric Gaussian states 95 5.1.1. Symplectic properties of symmetric states As a preliminary analysis, it is useful to provide a symplectic parametrization for the standard form coefficients of any two-mode reduced state of a fully symmetric Nmode CM σβN , Eq. (2.60). Following the discussion in Sec. 2.4.1.1, the coefficients b, z1, z2 of the standard form are determined by the local, single-mode invariant Det β ≡ µ −2 β , and by the symplectic invariants Det σβ2 ≡ µ−2 β2 and ∆β2 ≡ ∆(σβ2). Here µβ (µ β2) is the marginal purity of the single-mode (two-mode) reduced states, while ∆β2 is the remaining seralian invariant, Eq. (2.34), of the two-mode reduced states. According to Sec. 4.1, this parametrization is provided, in the present instance, by the following equations b = 1 µβ , z1 = µβ 4 (ɛ− − ɛ+) , z2 = µβ 4 (ɛ− + ɛ+) , (5.2) with ɛ− = ∆2 β2 − 4 µ 2 β2 , and ɛ+ = ∆β2 − 4 µ 2 β 2 − 4 µ 2 β2 . This parametrization has a straightforward interpretation, because µβ and µ β 2 quantify the local mixednesses and ∆ β 2 regulates the entanglement of the twomode blocks at fixed global and local purities [GA2] (see Sec. 4.3.3). Moreover, we can connect the symplectic spectrum of σ β N , given by Eq. (2.61), to the known symplectic invariants. The (N − 1)-times degenerate eigenvalue ν − β is independent of N, while ν + β N can be simply expressed as a function of the single- mode purity µβ and the symplectic spectrum of the two-mode block with eigenvalues ν − β and ν+ β 2: (ν + βN ) 2 N(N − 2) = − µ 2 + β (N − 1) 2 N(ν + β2) 2 + (N − 2)(ν − β )2 . (5.3) In turn, the two-mode symplectic eigenvalues are determined by the two-mode invariants by the relation 2(ν ∓ β )2 = ∆ β 2 ∓ ∆ 2 β 2 − 4/µ 2 β 2 . (5.4) The global purity Eq. (2.37) of a fully symmetric multimode Gaussian state is µ βN ≡ −1/2 Det σβN = (ν − β )N−1ν + βN −1 , (5.5) and, through Eq. (5.3), can be fully determined in terms of the one- and two-mode parameters alone. Analogous reasonings and expressions hold of course for the fully symmetric M-mode block with CM σ α M given by Eq. (2.60). 5.1.2. Evaluation of block entanglement in terms of symplectic invariants We can now efficiently discuss the quantification of the multimode block entanglement of bisymmetric Gaussian states. Exploiting our results on the symplectic characterization of two-mode Gaussian states [GA2, GA3] (see Sec. 4.1) we can select the relevant quantities that, by determining the correlation properties of the two-mode Gaussian state with CM σeq, also determine the entanglement and
