Developed especially for Ideal Standard Verdi<br />
and Palazzo<br />
<strong>Pressalit</strong> <strong>Plaza</strong>, <strong>incl</strong>. BA1 fixed hinge<br />
Design/Year<br />
Product Description<br />
Colour Programme<br />
Hinge Finish<br />
Spare Parts<br />
<strong>Pressalit</strong>, ???<br />

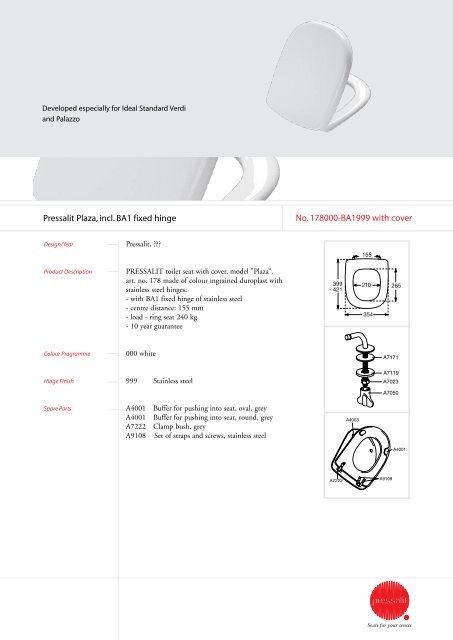

PRESSALIT toilet seat <strong>with</strong> <strong>cover</strong>, model ”<strong>Plaza</strong>”,<br />
art. no. 178 made of colour ingrained duroplast <strong>with</strong><br />
stainless steel hinges.<br />
- <strong>with</strong> BA1 fixed hinge of stainless steel<br />
- centre distance: 155 mm<br />
- load - ring seat 240 kg<br />
- 10 year guarantee<br />
000 white<br />
999 Stainless steel<br />
A4001 Buffer for pushing into seat, oval, grey<br />
A4001 Buffer for pushing into seat, round, grey<br />
A7222 Clamp bush, grey<br />
A9108 Set of straps and screws, stainless steel<br />
<strong>No</strong>. <strong>178000</strong>-<strong>BA1999</strong> <strong>with</strong> <strong>cover</strong><br />
399<br />
- 421<br />
A7222<br />
A4003<br />
155<br />
210<br />
354<br />
A7171<br />
A7119<br />
A7023<br />
A7050<br />
A9108<br />
265<br />
A4001
12.07<br />
<strong>Pressalit</strong> <strong>Plaza</strong>, <strong>incl</strong>. BA1 fixed hinge <strong>No</strong>. <strong>178000</strong>-<strong>BA1999</strong> <strong>with</strong> <strong>cover</strong><br />
Product Weight<br />
Packaging<br />
Material Description<br />
Suitability List<br />
Cleaning Instructions<br />
<strong>Pressalit</strong> A/S, Denmark<br />
www.pressalit.com<br />
European Sales Agencies<br />
Leith House, 39 Campion Drive<br />
Tanfield Lea, Stanley,<br />
Co. Durham. DH9 9PQ<br />
Tel.01207 236622, Fax 01207 236633<br />
info@europeansalesagencies.com<br />
www.europeansalesagencies.com<br />
Net weight approx. 2,900 kg <strong>incl</strong>. hinge<br />
Dimensions: Weight:<br />
Single carton 449x381x64 mm 3,100 kg<br />
5 single cartons in a master carton 456x388x340 mm 16,100 kg<br />
12 master cartons (60) per pallet<br />
TOILET SEAT:<br />
The material is colour ingrained duroplast (UF A 10 = urea formaldehyde) that contains no<br />
environmentally hazardous substances. The body consists of approx. 50% urea (NH2CONH2),<br />
approx. 25% cellulose and approx. 25% formaldehyde (HCHO), as well as small amounts of various<br />
fillers and additives.<br />
BUFFERS:<br />
EVA (copolymer made of ethylene and vinyl acetate).<br />
HINGE LINKS:<br />
Stainless steel (V2A) model W. no. 1.4301/M in accordance <strong>with</strong> DIN 17441/85. Composition:<br />
chrome (cr) 17-19%, nickel (ni) 8-11%, carbon
