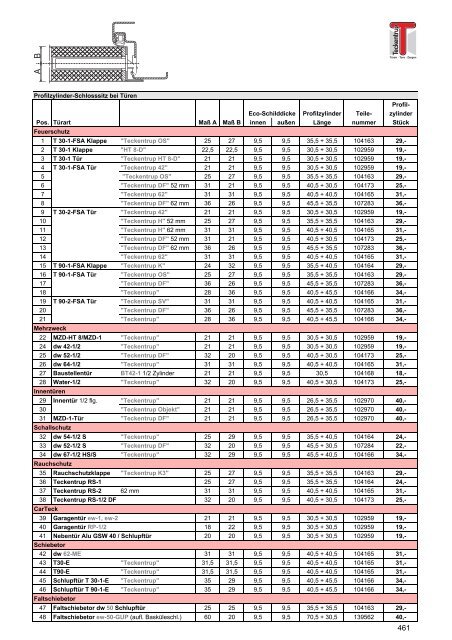

A B Profilzylinder-Schlosssitz bei Türen Profil- Eco-Schilddicke Profilzylinder Teile- zylinder Pos. Türart Maß A Maß B innen außen Länge nummer Stück Feuerschutz 1 T 30-1-FSA Klappe "Teckentrup OS" 25 27 9,5 9,5 35,5 + 35,5 104163 29,- 2 T 30-1 Klappe "HT 8-D" 22,5 22,5 9,5 9,5 30,5 + 30,5 102959 19,- 3 T 30-1 Tür "Teckentrup HT 8-D" 21 21 9,5 9,5 30,5 + 30,5 102959 19,- 4 T 30-1-FSA Tür "Teckentrup 42" 21 21 9,5 9,5 30,5 + 30,5 102959 19,- 5 "Teckentrup OS" 25 27 9,5 9,5 35,5 + 35,5 104163 29,- 6 "Teckentrup DF" 52 mm 31 21 9,5 9,5 40,5 + 30,5 104173 25,- 7 "Teckentrup 62" 31 31 9,5 9,5 40,5 + 40,5 104165 31,- 8 "Teckentrup DF" 62 mm 36 26 9,5 9,5 45,5 + 35,5 107283 36,- 9 T 30-2-FSA Tür "Teckentrup 42" 21 21 9,5 9,5 30,5 + 30,5 102959 19,- 10 "Teckentrup H" 52 mm 25 27 9,5 9,5 35,5 + 35,5 104163 29,- 11 "Teckentrup H" 62 mm 31 31 9,5 9,5 40,5 + 40,5 104165 31,- 12 "Teckentrup DF" 52 mm 31 21 9,5 9,5 40,5 + 30,5 104173 25,- 13 "Teckentrup DF" 62 mm 36 26 9,5 9,5 45,5 + 35,5 107283 36,- 14 "Teckentrup 62" 31 31 9,5 9,5 40,5 + 40,5 104165 31,- 15 T 90-1-FSA Klappe "Teckentrup K" 24 32 9,5 9,5 35,5 + 40,5 104164 29,- 16 T 90-1-FSA Tür "Teckentrup OS" 25 27 9,5 9,5 35,5 + 35,5 104163 29,- 17 "Teckentrup DF" 36 26 9,5 9,5 45,5 + 35,5 107283 36,- 18 "Teckentrup" 28 36 9,5 9,5 40,5 + 45,5 104166 34,- 19 T 90-2-FSA Tür "Teckentrup SV" 31 31 9,5 9,5 40,5 + 40,5 104165 31,- 20 "Teckentrup DF" 36 26 9,5 9,5 45,5 + 35,5 107283 36,- 21 "Teckentrup" 28 36 9,5 9,5 40,5 + 45,5 104166 34,- Mehrzweck 22 MZD-HT 8/MZD-1 "Teckentrup" 21 21 9,5 9,5 30,5 + 30,5 102959 19,- 24 dw 42-1/2 "Teckentrup" 21 21 9,5 9,5 30,5 + 30,5 102959 19,- 25 dw 52-1/2 "Teckentrup DF" 32 20 9,5 9,5 40,5 + 30,5 104173 25,- 26 dw 64-1/2 "Teckentrup" 31 31 9,5 9,5 40,5 + 40,5 104165 31,- 27 Baustellentür BT42-1 1/2 Zylinder 21 21 9,5 9,5 30,5 104168 18,- 28 Water-1/2 "Teckentrup" 32 20 9,5 9,5 40,5 + 30,5 104173 25,- Innentüren 29 Innentür 1/2 flg. "Teckentrup" 21 21 9,5 9,5 26,5 + 35,5 102970 40,- 30 "Teckentrup Objekt" 21 21 9,5 9,5 26,5 + 35,5 102970 40,- 31 MZD-1-Tür "Teckentrup DF" 21 21 9,5 9,5 26,5 + 35,5 102970 40,- Schallschutz 32 dw 54-1/2 S "Teckentrup" 25 29 9,5 9,5 35,5 + 40,5 104164 24,- 33 dw 52-1/2 S "Teckentrup DF" 32 20 9,5 9,5 45,5 + 30,5 107284 22,- 34 dw 67-1/2 HS/S "Teckentrup" 32 29 9,5 9,5 45,5 + 40,5 104166 34,- Rauchschutz 35 Rauchschutzklappe "Teckentrup K3" 25 27 9,5 9,5 35,5 + 35,5 104163 29,- 36 Teckentrup RS-1 25 27 9,5 9,5 35,5 + 35,5 104164 24,- 37 Teckentrup RS-2 62 mm 31 31 9,5 9,5 40,5 + 40,5 104165 31,- 38 Teckentrup RS-1/2 DF 32 20 9,5 9,5 40,5 + 30,5 104173 25,- CarTeck 39 Garagentür ew-1, ew-2 21 21 9,5 9,5 30,5 + 30,5 102959 19,- 40 Garagentür RP-1/2 18 22 9,5 9,5 30,5 + 30,5 102959 19,- 41 Nebentür Alu GSW 40 / Schlupftür 20 20 9,5 9,5 30,5 + 30,5 102959 19,- Schiebetor 42 dw 62-ME 31 31 9,5 9,5 40,5 + 40,5 104165 31,- 43 T30-E "Teckentrup" 31,5 31,5 9,5 9,5 40,5 + 40,5 104165 31,- 44 T90-E "Teckentrup" 31,5 31,5 9,5 9,5 40,5 + 40,5 104165 31,- 45 Schlupftür T 30-1-E "Teckentrup" 35 29 9,5 9,5 40,5 + 45,5 104166 34,- 46 Schlupftür T 90-1-E "Teckentrup" 35 29 9,5 9,5 40,5 + 45,5 104166 34,- Faltschiebetor 47 Faltschiebetor dw 50 Schlupftür 25 25 9,5 9,5 35,5 + 35,5 104163 29,- 48 Faltschiebetor ew-50-GUP (aufl. Basküleschl.) 60 20 9,5 9,5 70,5 + 30,5 139562 40,- Türen . Tore . Zargen 461
