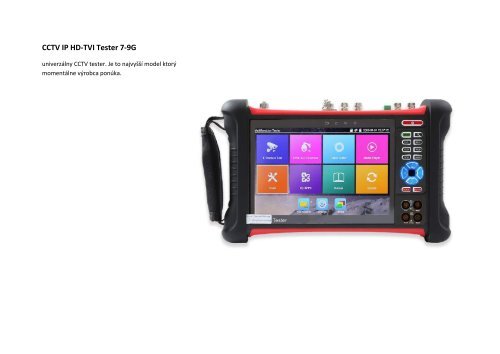

<strong>CCTV</strong> <strong>IP</strong> <strong>HD</strong>-<strong>TVI</strong> Tester 7-<strong>9G</strong><br />
univerzálny <strong>CCTV</strong> tester. Je to najvyšší model ktorý<br />
momentálne výrobca ponúka.
Popis od výrobcu:<br />
SignalSystem<br />
Display<br />
<strong>IP</strong> camera type<br />
Rapid Video<br />
Hikvision test tool<br />
Dahua test tool<br />
Network test<br />
<strong>IP</strong> cameraapps<br />
RTSP<br />
LCD adjust<br />
<strong>HD</strong>MI input<br />
<strong>HD</strong>MI output<br />
Network port<br />
Wifi<br />
PoEpoweroutput<br />
Video Input / Output<br />
Video OutputMode<br />
CVBS loop test<br />
PowerAdapter<br />
Poweroutput<br />
NTSC / PAL (Auto-Selecting)<br />
7 inchretinatouchscreen, 1920*1200 resolution<br />
4k, H264, H265, Onvif, OnvifPTZ, ACTi, Dahua <strong>IP</strong>C-HFW2100P, Hikvision,DS-2CD864-E13, Samsung SNZ-5200, Honeywell HICC-2300T, etc.<br />
Customizedprotocols are available<br />
Auto viewthe video, createtesting report<br />
pressing just onekey to activatehikvisioncamera , Image test, canmodifytheusername, password and <strong>IP</strong> parameters<br />
Dahuacamera test, modifytheusername, password and <strong>IP</strong> parameters<br />
FTP Server, Static <strong>IP</strong> address, DHCP, simultaneously test differentsegments´ <strong>IP</strong> cameras, Networkbandwidthtesting, <strong>IP</strong> discovery<br />
Support video management software to view <strong>IP</strong> cameraimage, suchasHikvision ivms-4500, DahuagDMSS <strong>HD</strong> Lite<br />
Support RTSP to view <strong>IP</strong> cameraimage<br />
Adjustablebrightness, contrast, colorof LCD<br />
1 channel <strong>HD</strong>MI input, support 1080P<br />
1 channel <strong>HD</strong>MI output, support 1080P<br />
10/100M auto adjust, RJ45<br />
Built in Wifi, speeds 150M, receivewirelesscameraimageetc. createwifihotspot<br />
PoE 24W powersupply to <strong>IP</strong> camera<br />
1 channel BNC input& 1 channel BNC loopedoutput<br />
1.0 Vp-p<br />
thetestersend and receivecolor bar generatorsignal to check BNC cable<br />
5V DC, 2A inputsupply<br />
12V DC, 2A poweroutputforcamera
Audio input<br />
USB poweroutput<br />
Communication<br />
Baud Rate<br />
1 channel audio signalinput to test pickup device, 1 channel audio signaloutput to connectheadphone<br />
USB 5V 2A poweroutput to mobile phone<br />
RS485<br />
150, 300, 600, 1200, 2400, 4800, 9600, 19200bps<br />
PowerSavingFeatures Sleepmode, Batterylevelindicator<br />
PTZ<br />
AddressScanning<br />
Scanforlocal PTZ address over datacables<br />
RechargeableBattery 6 hourscharge, workfor 10 hours<br />
Battery<br />
Video Display<br />
Video Signal<br />
Cable Test<br />
PTZ Protocol<br />
PTZ dataCapture<br />
Image 4x zoom<br />
Photograph<br />
Video record<br />
Port Finder<br />
<strong>IP</strong> scan<br />
Link monitor<br />
Pingtesting<br />
PoEtester<br />
NightLed<br />
1 pcsLithiumIonPolymerBattery; 7.4V DC, 5000mAh<br />
Displays video signalfromanaloginput<br />
Color bar generatorfor monitor testing<br />
Checksconnectionsof UTP cables, RJ45 cable TDR test<br />
Compatiblewith more than 30 protocolssuchas PELCO-D/P, Samsung, Panasonic, TeleEyeetc.<br />
Reads and displayscommandssentfromcontrollers<br />
4x zoomimage display and video out<br />
Snapshot and savetheimageas JPG file and screenshot<br />
Video recording and playback fromthe SD card<br />
FindtheconnectedPoE port quickly<br />
Findouttheconnected <strong>IP</strong> camera or networkequipment´s <strong>IP</strong> address<br />
Checkthe <strong>IP</strong> addresswhetherisoccupied<br />
Network and Ipcamera´pingtesting<br />
PoEvoltagetesting, PoE port flicker, PoElink monitoring<br />
BuiltLedlamp
SD card<br />
TesterPlay<br />
Drop-down menu<br />
<strong>HD</strong>-<strong>TVI</strong> input<br />
<strong>HD</strong>-CVI input<br />
A<strong>HD</strong> input<br />
With 8G Micro SD card, supportMicro SD cardforrecording, max support 32G SD card<br />
screenprojection:tester, mobile phone and PC display atthesametime (Forandroidversion mobile phone)<br />
UsercanselectPoEpowerswitch, <strong>IP</strong> setting, WLAN switch, <strong>HD</strong>MI IN functionsetc in anyinterface<br />
<strong>HD</strong>-<strong>TVI</strong> camera test, video record and playback, coaxial PTZ control and callcamera OSD menu<br />
<strong>HD</strong>-CVI camera test, video record and playback, coaxial PTZ control and callcamera OSD menu<br />
A<strong>HD</strong> camera test, video record and playback, coaxial PTZ control and callcamera OSD menu<br />
<strong>HD</strong>-SDI/EX-SDI input <strong>HD</strong>-SDI / EX-SDI camera test, support 1080P 50/60 FPS<br />
Multimeter<br />
Cabletracer<br />
Video level meter<br />
Dimension<br />
Weight<br />
voltage, current, resistance and capacitancecanbetested, continuitytesting, diodetesting<br />
Cabletracerappwith toner wand. Findouttheconnectedcable in manymessycables. Connectone end ofthecable to tester and<br />
thetesterwillsendspecificsignals, whichwillenablethebluecabletracker to findouttheother end oftheconnectedcablequickly and easily by<br />
makingclearlysound.<br />
Video level meter foranalogcamera, peak video signallevel, syncsignallevel, colorburstchromalevelmeasurement<br />
260mm x 160mm x 42mm (Tester); 320mm x 290mm x 98mm (Colour box)<br />
1000g (Tester); 2610g (Testerwith spare parts, blackpackage, box)<br />
Je to momentálne najuniverzálnejší CCVT tester s možnosťou základných nastavení <strong>IP</strong> kamier. Podporuje <strong>HD</strong> SDI, <strong>HD</strong> <strong>TVI</strong> s OSD, <strong>HD</strong> CVI s OSD, A<strong>HD</strong> s OSD<br />
a samozrejme aj CVBS signál.<br />
Novinky oproti staršiemu modelu:<br />
- <strong>HD</strong>MI vstup / výstup (dokáže nahrávať <strong>HD</strong>MI signál)<br />
- SDI spolu s <strong>TVI</strong> v jednom merači<br />
- <strong>TVI</strong> otestované do 5MPX aj s OSD ovládaním<br />
- PoE napájanie kamery priamo z batérie merača<br />
- Meranie dĺžky UTP/FTP a koaxiálneho kábla<br />
- Oveľa lepšie rozlíšenie monitora
- Mechanický vypínač merača<br />
- Podpora 4K kamier<br />
- Informácie na popredí zobrazenia ( info o napájaníPoE, LAN, <strong>HD</strong>MI vstup)<br />
- Podsvietené klávesy<br />
Vie otestovať aj optické spojenie.<br />
Merač je oproti staršiemu modelu trochu tenší. Dobre padne do ruky, ale použité silikónové chrániče bokov sú na dotyk klzkejšie ako na predošlej verzii. Ako<br />
operačný systém zostal upravený Android. Výhoda je že tam sú predinštalované nejaké APP pre mobilné telefóny (Hikvision, CP plus).
